ProneConnect™ Head Positioning System
ProneConnect™ Head Positioning System
Built on the trusted foundation of our prone positioning portfolio, ProneConnect is the next-generation head positioning solution—engineered to enhance staff efficiency and deliver an optimal patient fit.
Challenges of Prone Positioning
Proning patients is widely practiced in the OR and ICU, but it carries significant risks. While clinically beneficial, it can lead to complications such as facial pressure injuries1, 2, ocular damage, and nerve-related issues3.

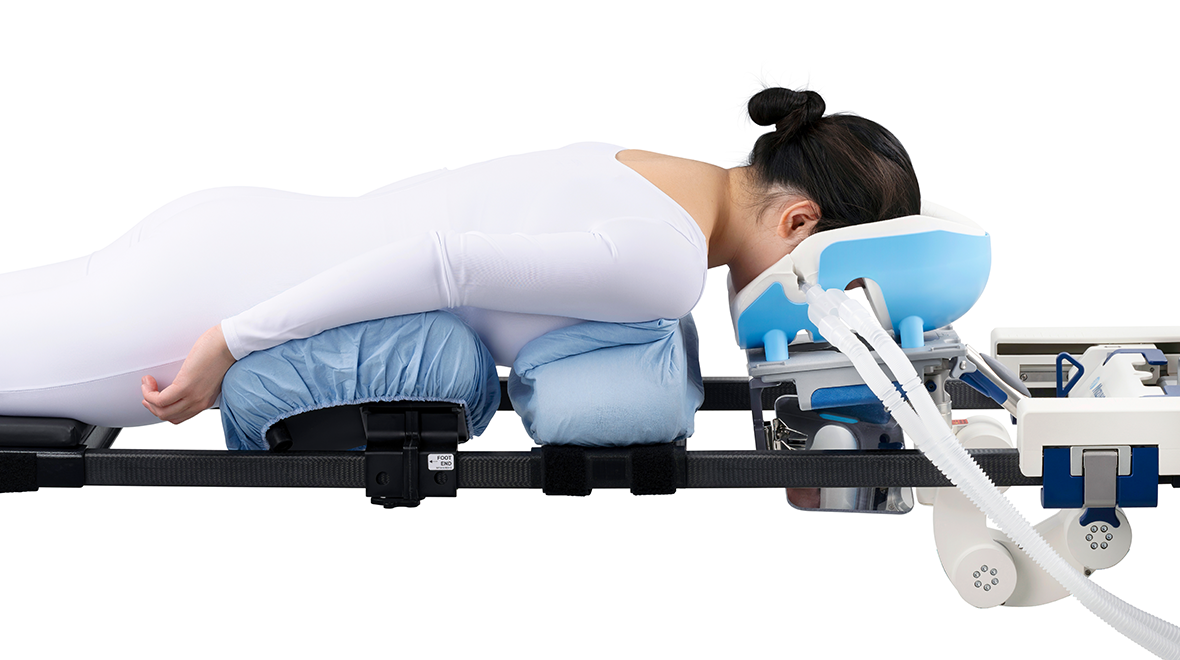

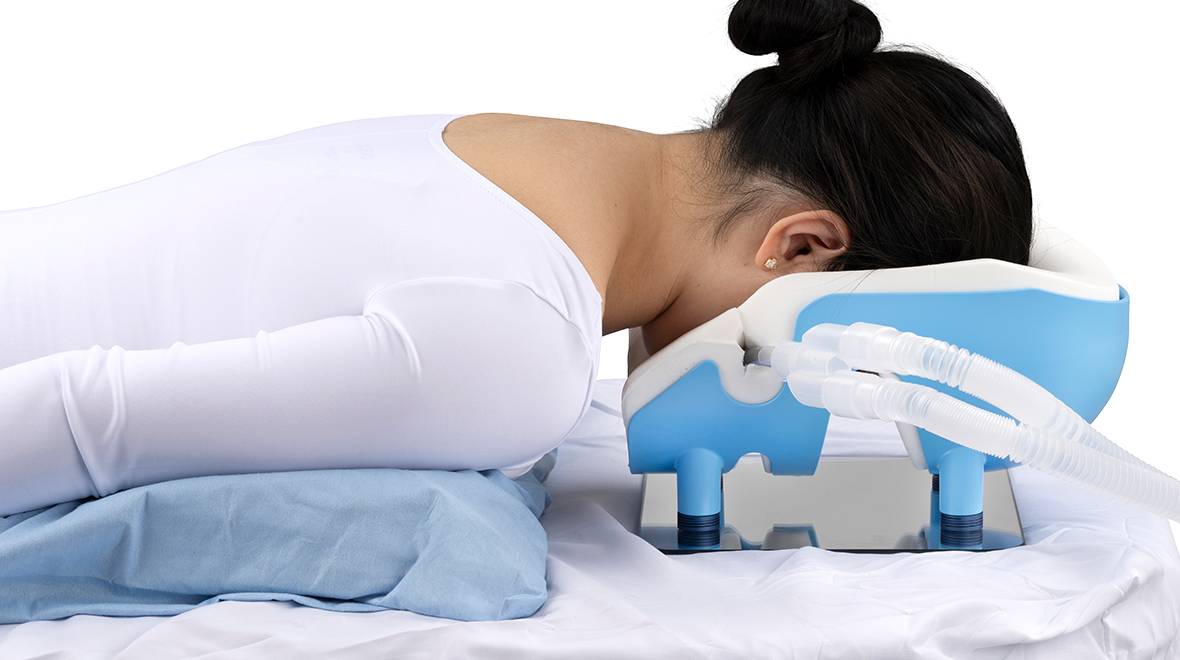

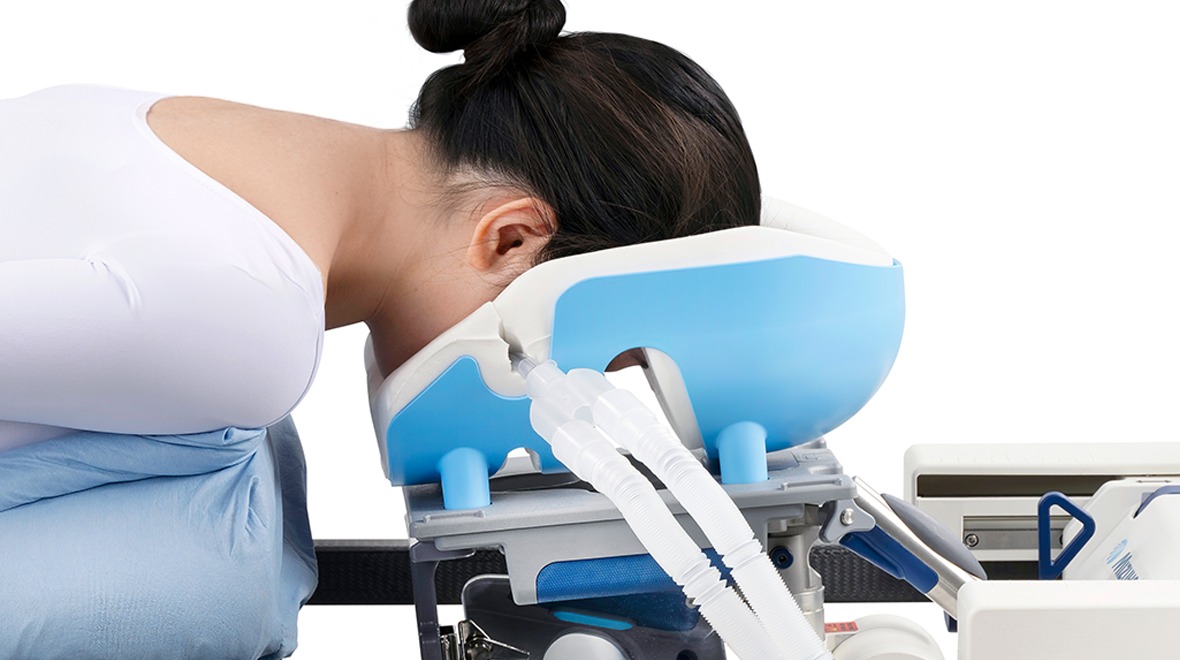

ProneConnect™, the next generation in prone head positioning, provides contoured support, bilateral ET tube access, and intraoperative adjustability—delivering safe, stable, and continuous prone care while helping prevent injuries in the prone position.
Key Benefits
Designed for Patient Safety: Contoured support distributes peak pressure evenly across facial bony prominences.
Designed for Efficiency: Bilateral endotracheal tube slots enable supine-to-prone transfers without circuit disconnection.
Adjustability with Stability: Adjustable mirror or helmet allows intraoperative positioning while maintaining neck neutrality.

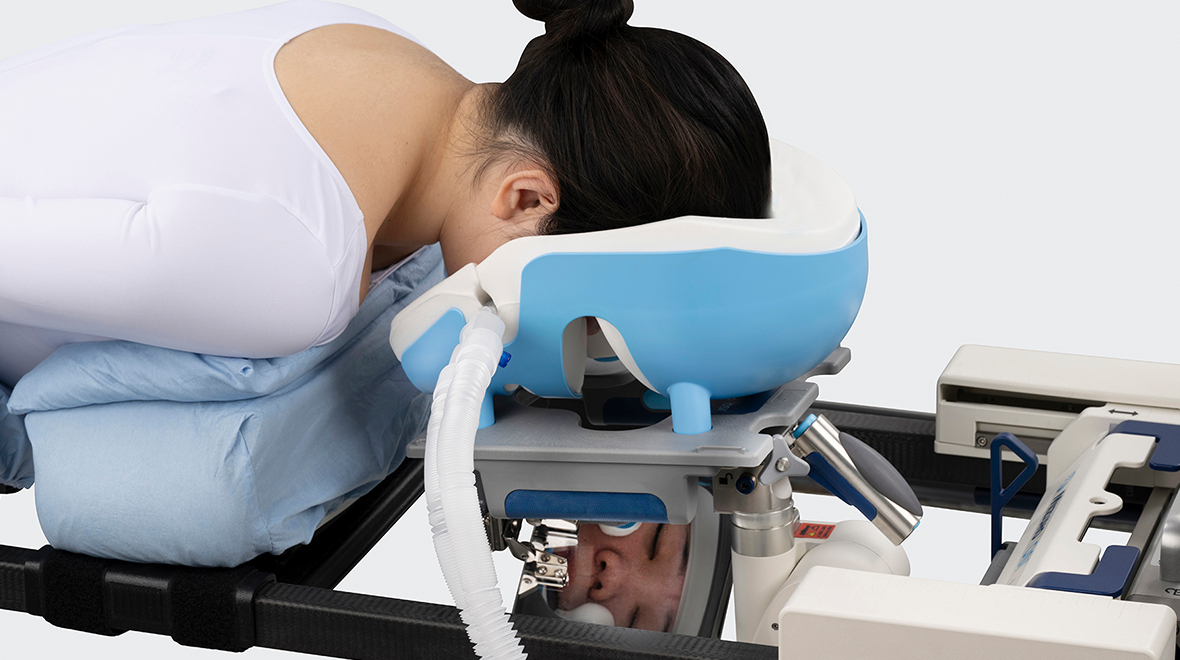

Visual Confirmation at a Glance: Reflective mirror base provides continuous monitoring of ocular area for eye safety checks.
*Patents pending
Quick and Easy Adjustments
| PC502AH - ProneConnect Adjustable Helmet |
| Independent adjustability for improved neutrality of the patient's neck |
Mirror Height Range
| PC590M - ProneConnect Adjustable Mirror |
| PC700M - ProneConnect Trios® Mirror Platform |
Vertical Cushion Opening (In helmet)
| Small | 4.2" |
| Medium | 4.5" |
| Large | 5.0" |
Horizontal Cushion Opening (In helmet)
| Small | 5.0" |
| Medium | 5.5" |
| Large | 6.0" |

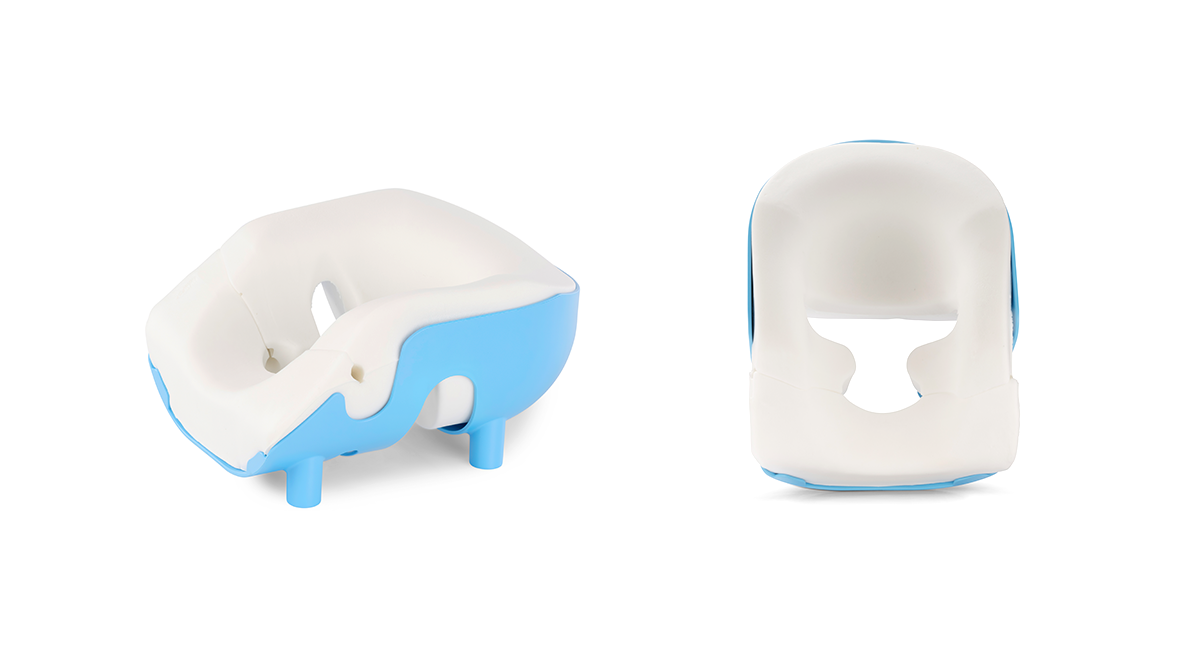

Optimized in three sizes – small, medium and large, ensuring a precise fit for most facial anatomies.

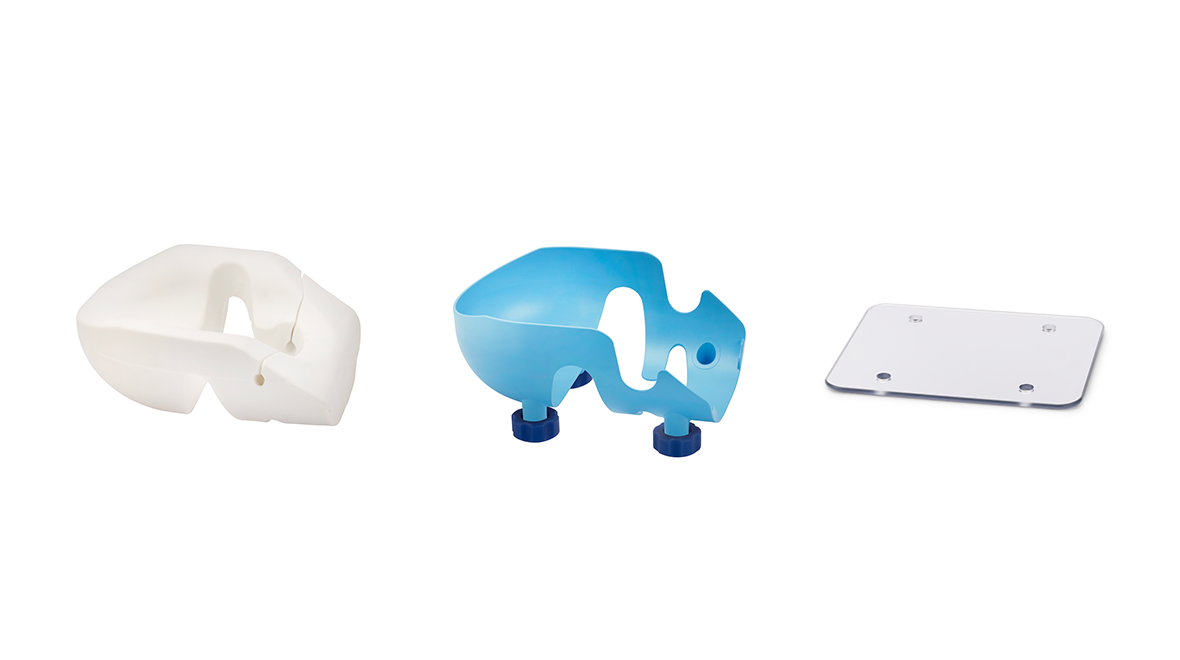

Helmet
| Part No. | Quantity | Description | |
| PC501FH | 1 | ProneConnect Protective Helmet | |
| PC502AH | 1 | ProneConnect Adjustable Helmet | |
Mirror
| Part No. | Quantity | Description | Helmet Compatibility |
| PC520M | 1 | ProneConnect Low Profile Mirror | PC501FH |
| PC580M | 1 | ProneConnect Mirror with Post Holes | PC502AH |
| PC590M | 1 | ProneConnect Adjustable Mirror | PC501FH |
| PC700M | 1 | ProneConnect Trios® Mirror Platform | PC501FH |
Cushion
| Part No. | Quantity | Description | |
| PC501CS | 10/cs | ProneConnect Cushion Insert, Large | |
| PC505CS | 10/cs | ProneConnect Cushion Insert, Medium | |
| PC507CS | 10/cs | ProneConnect Cushion Insert, Small | |
| PC-COMBO | 10/cs | ProneConnect Combo Pack (4L, 3M, 3S) |
Warranty
We guarantee all of our products for a period of one year from the date of shipment from Mizuho OSI for defects in material and workmanship with the exception of products which are misused, altered or damaged.
References
- Michelle Barakat-Johnson & RC & Kerrie Coleman, & Kimberley Counter, & Kathy Hocking, & Tom Leong, & Annabel Levido and & Fiona Coyer. Pressure injury prevention for COVID-19 patients in a prone position. Wound Practice and Research. 2020;28(2). doi:10.33235/wpr.28.2.50-57
- Kebapçı A. Comparison of the Prone Position-related Characteristics of Intubated COVID-19 Patients with and without Facial Pressure Injuries. J Educ Res Nurs. Published online 2023:329-335. doi:10.14744/jern.2022.22273
- Dhoon TQ, Vakharia S, Villaluz E, Morrison DE. The Underappreciated Dangers of the Prone Position. Anesthesia Patient Safety Foundation. April 30, 2024. Accessed September 17, 2025. https://www.apsf.org/
article/the-underappreciated- dangers-of-the-prone-position/
