Adante Hip Draping Setup

1/11

Raise the Femur Lift several inches in preparation for the drape application.

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Standard Component Installation and Adjustment

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

VIEW NOW

CONTINUE WITH SETUP

Raise Femur Lift

Standard Component Installation and Adjustment

Ensure the Femoral Hook Support Lock is unlocked in preparation for the the drape application.

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Unlock Femoral Hook Support

Standard Component Installation and Adjustment

2/11

6895-1212 - Anterior Hip Drape, Right
6895-1213 - Anterior Hip Drape, Left

Select Drape based on Operative Side

Standard Component Installation and Adjustment

Determine which drape (left or right) is needed based on the operative site. The part numbers for the drape based on the operative site are:

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

3/11

WARNING: This product is SINGLE USE ONLY. Re-use of this Drape will result in a non-sterile field and cross-contamination. Do not use near flammable anesthesia gases.

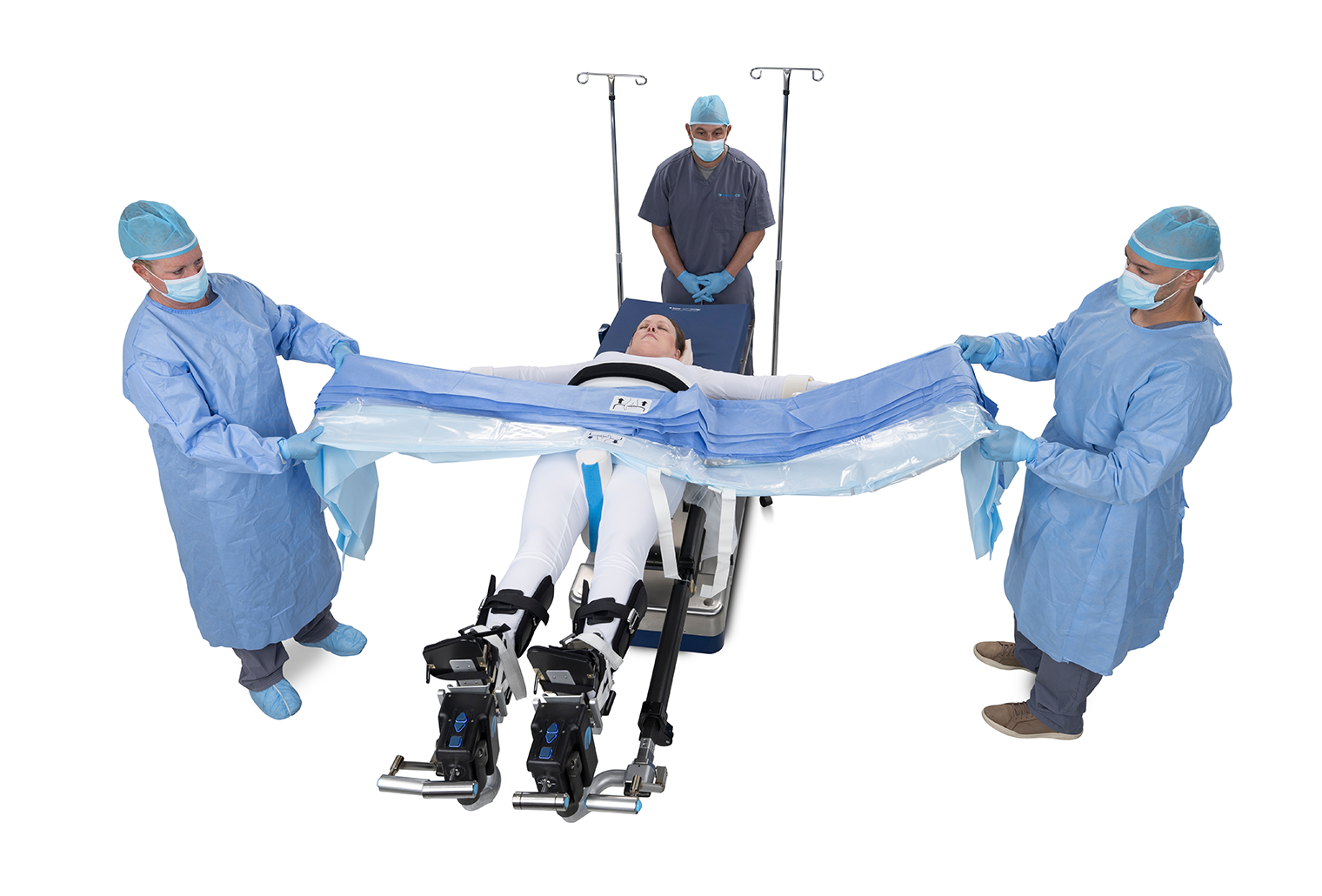

Remove the adhesive backing from the drape and lower the drape onto the patient.

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Remove Adhesive Backing

Standard Component Installation and Adjustment

4/11

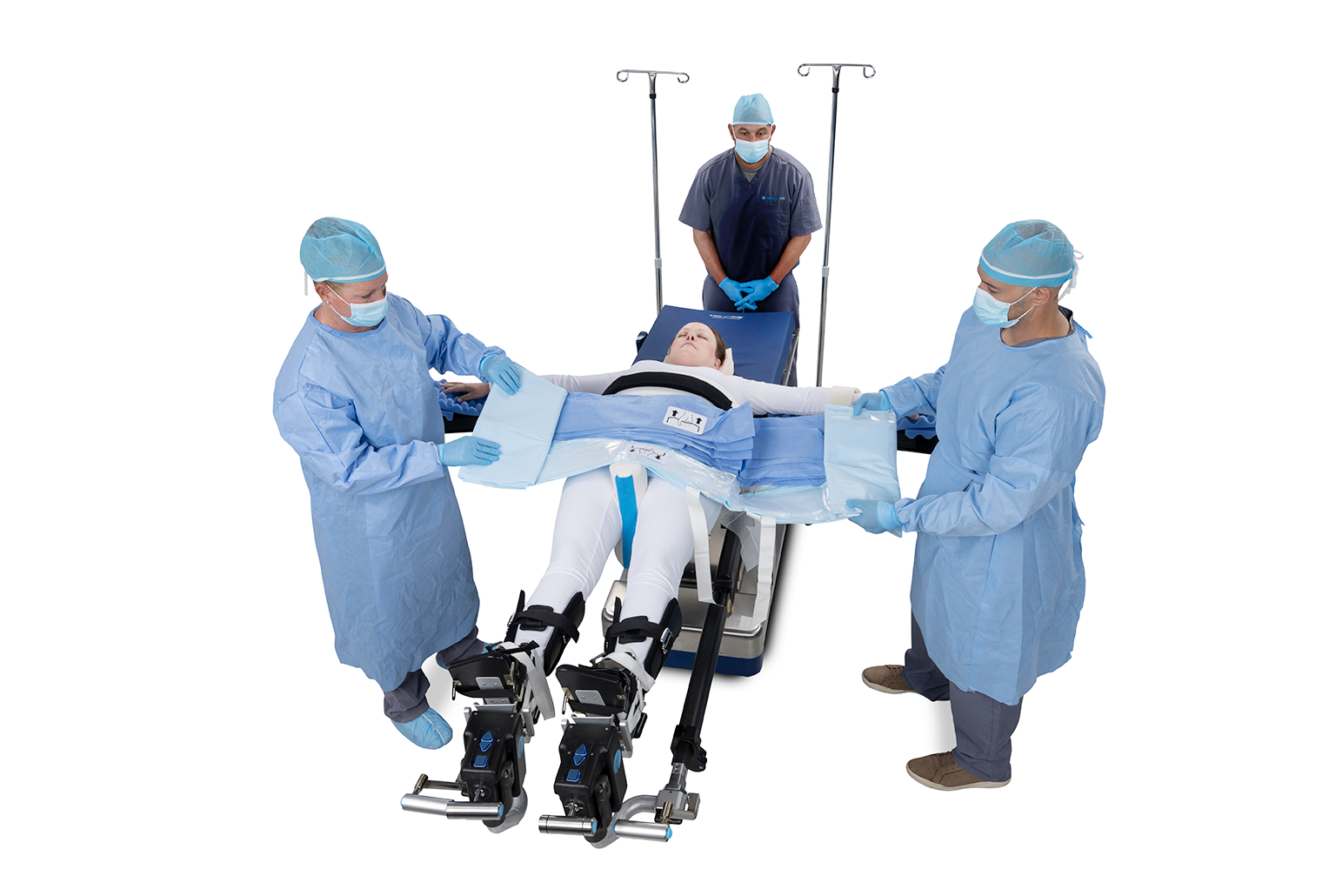

Secure the adhesive to the patient. The top of the surgical window should be placed above the iliac crest on the operative site.

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Apply Drape

Standard Component Installation and Adjustment

5/11

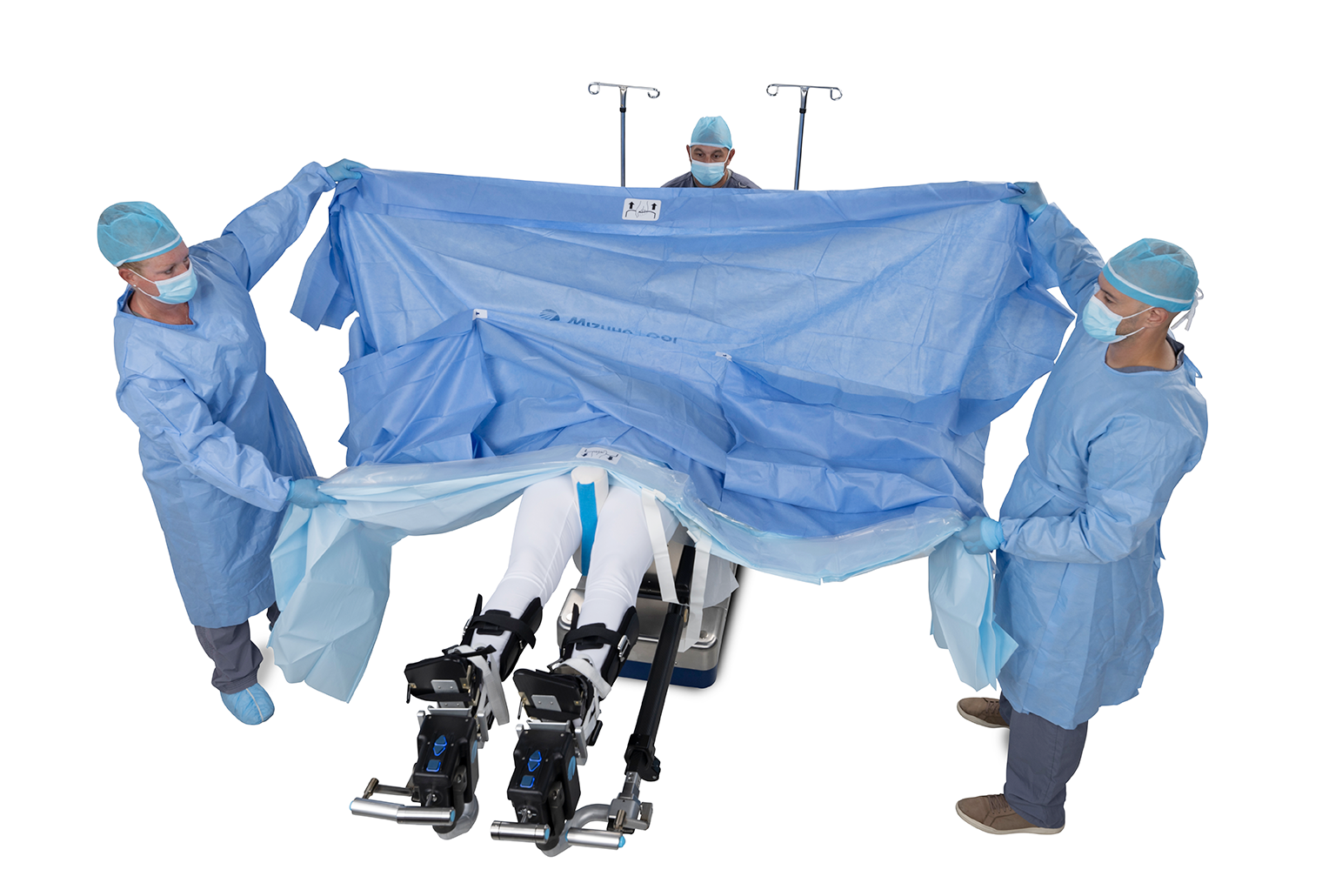

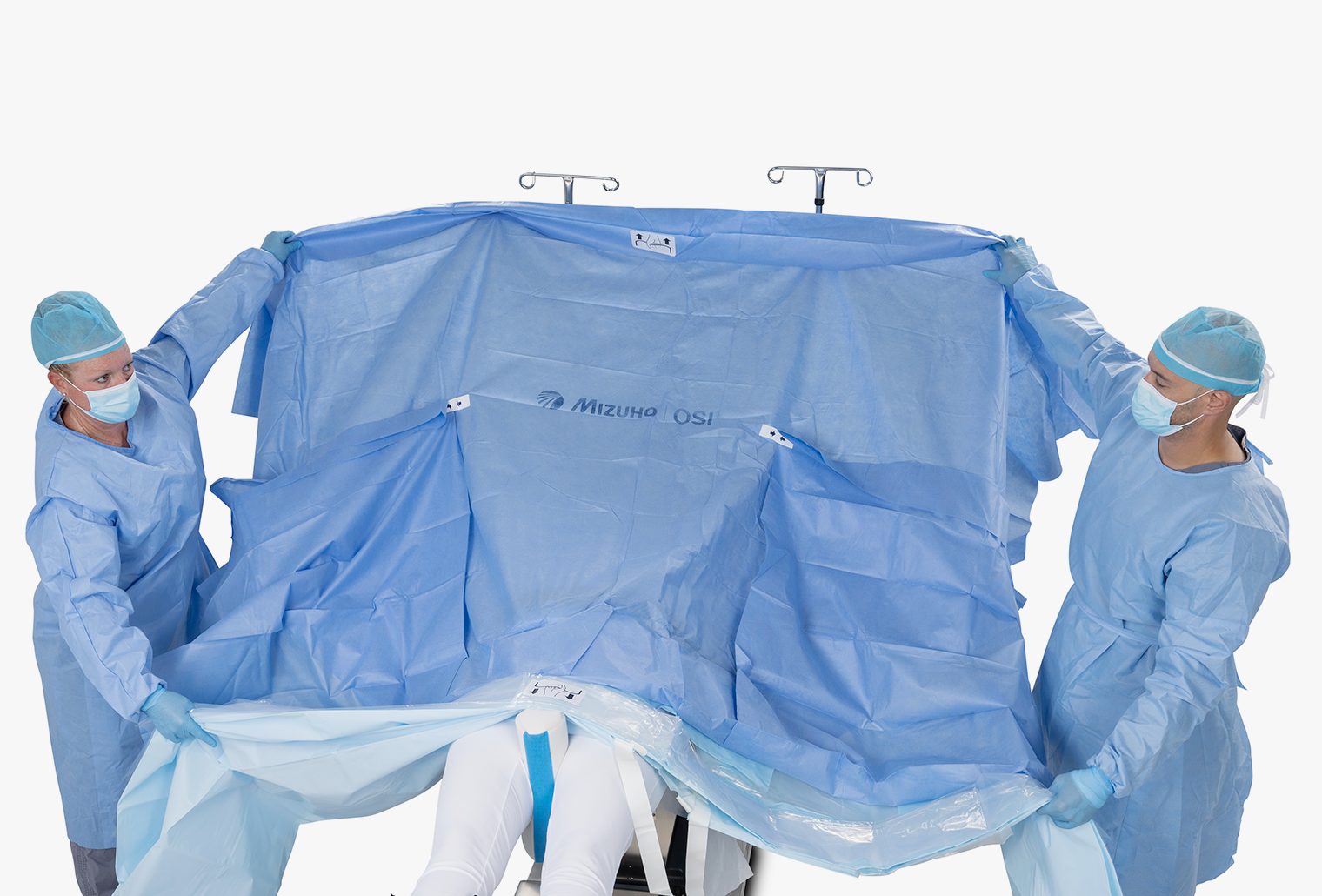

Unfold the Head-End and Foot-End of the drape to completely cover the patient and the platform.

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Unfold the Head-End and Foot-End

Standard Component Installation and Adjustment

6/11

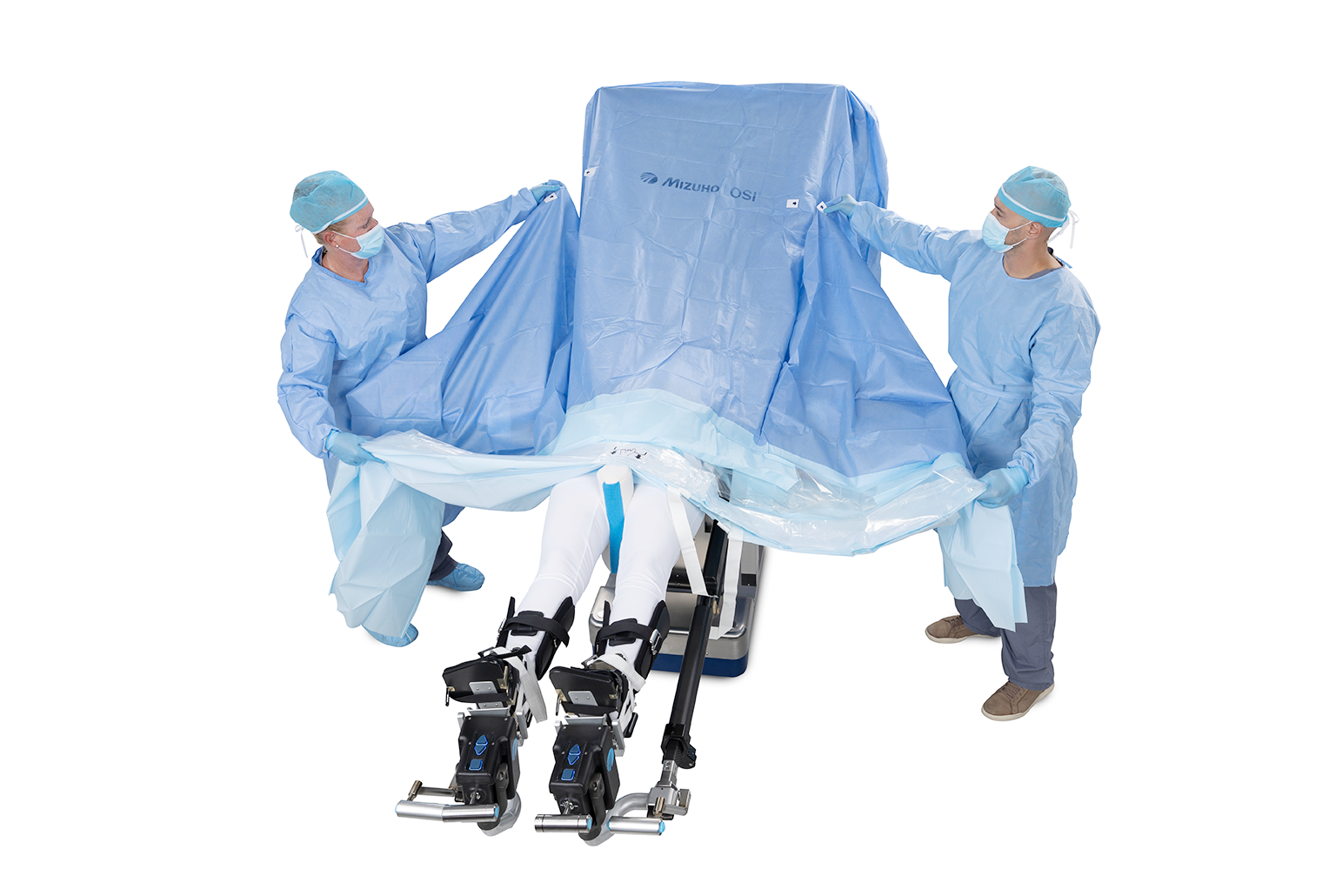

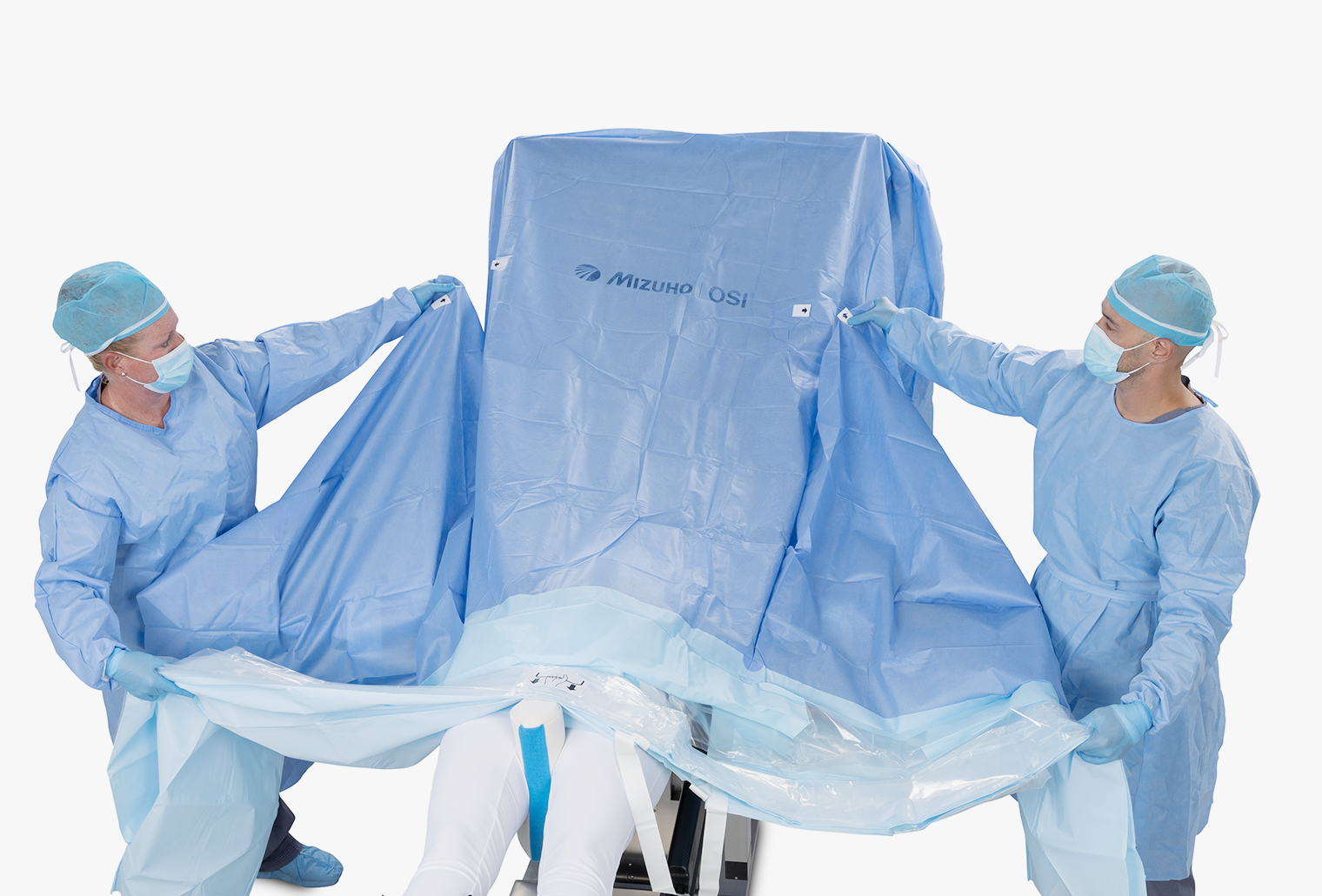

Slide the Femur Lift cover over the top of the Femur Lift, then peel the tab to detach the cover.

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Cover the Femur Lift

Standard Component Installation and Adjustment

7/11

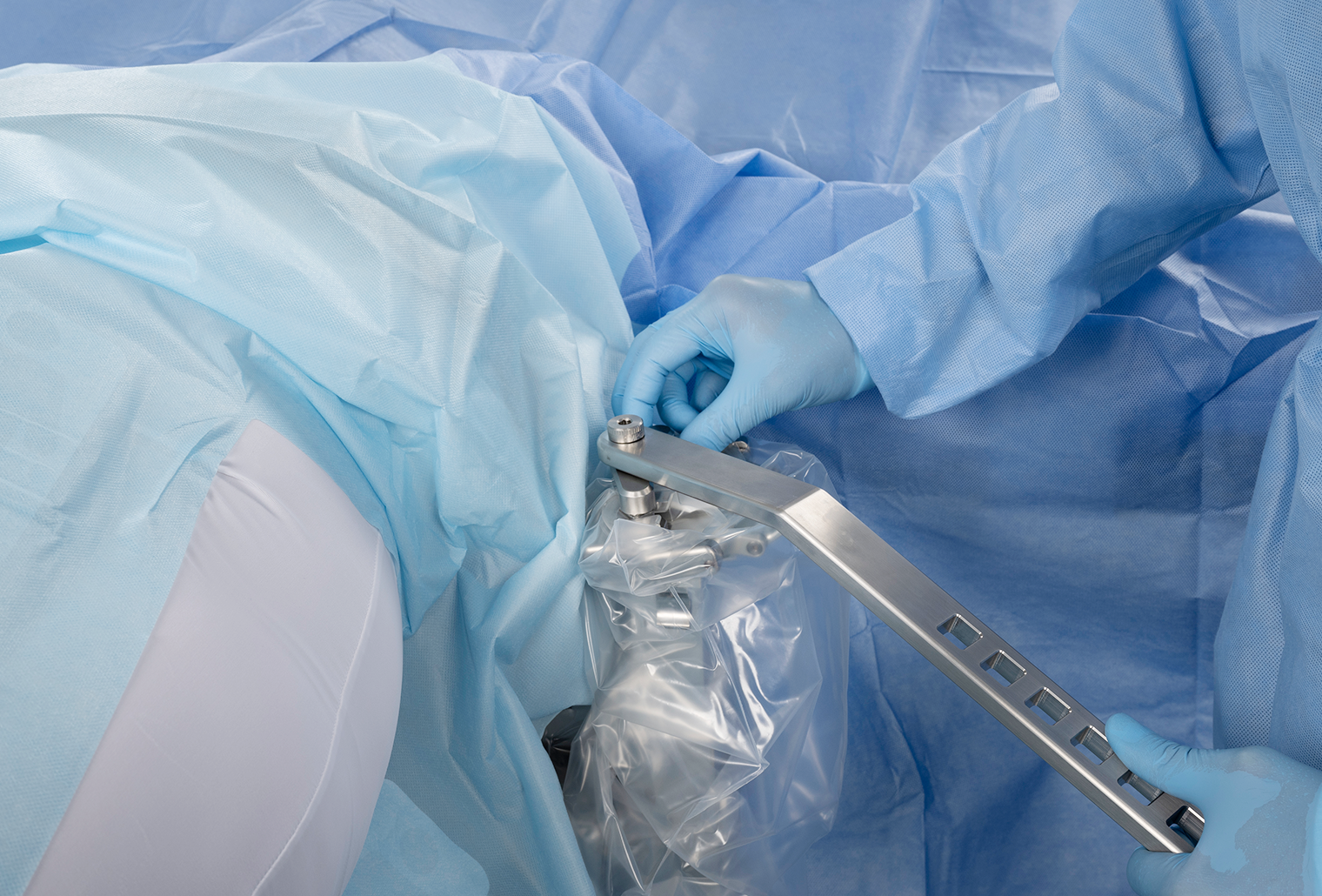

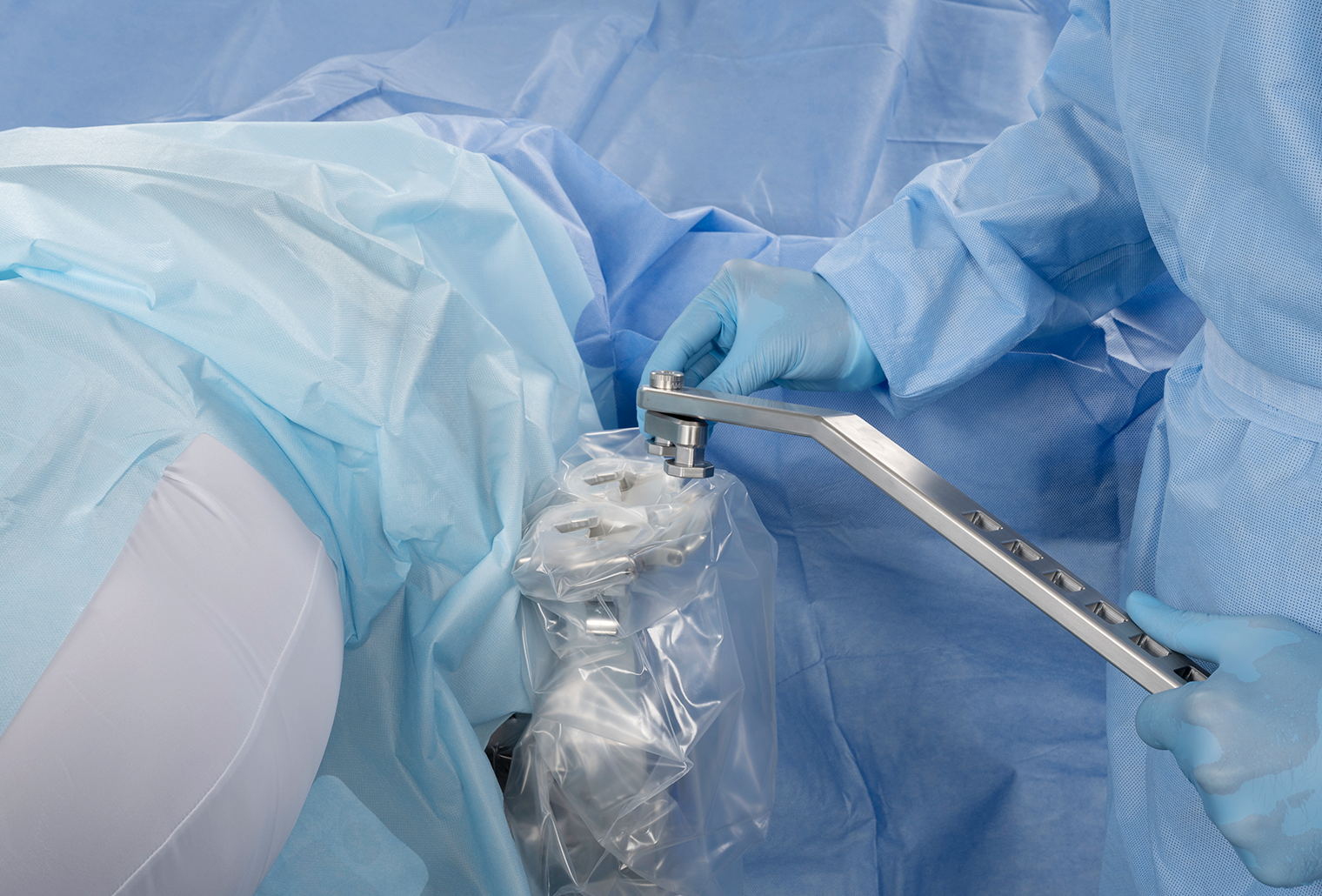

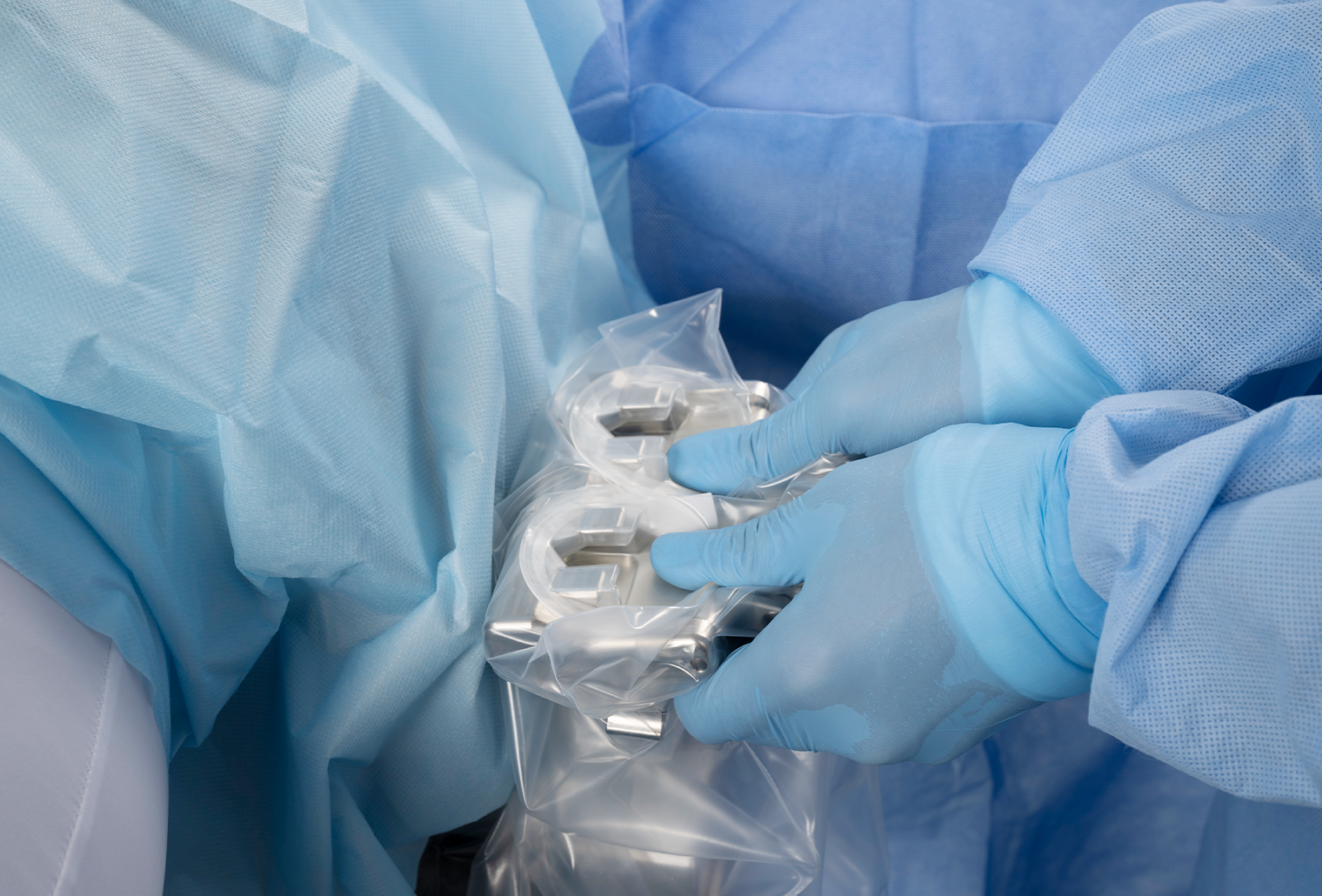

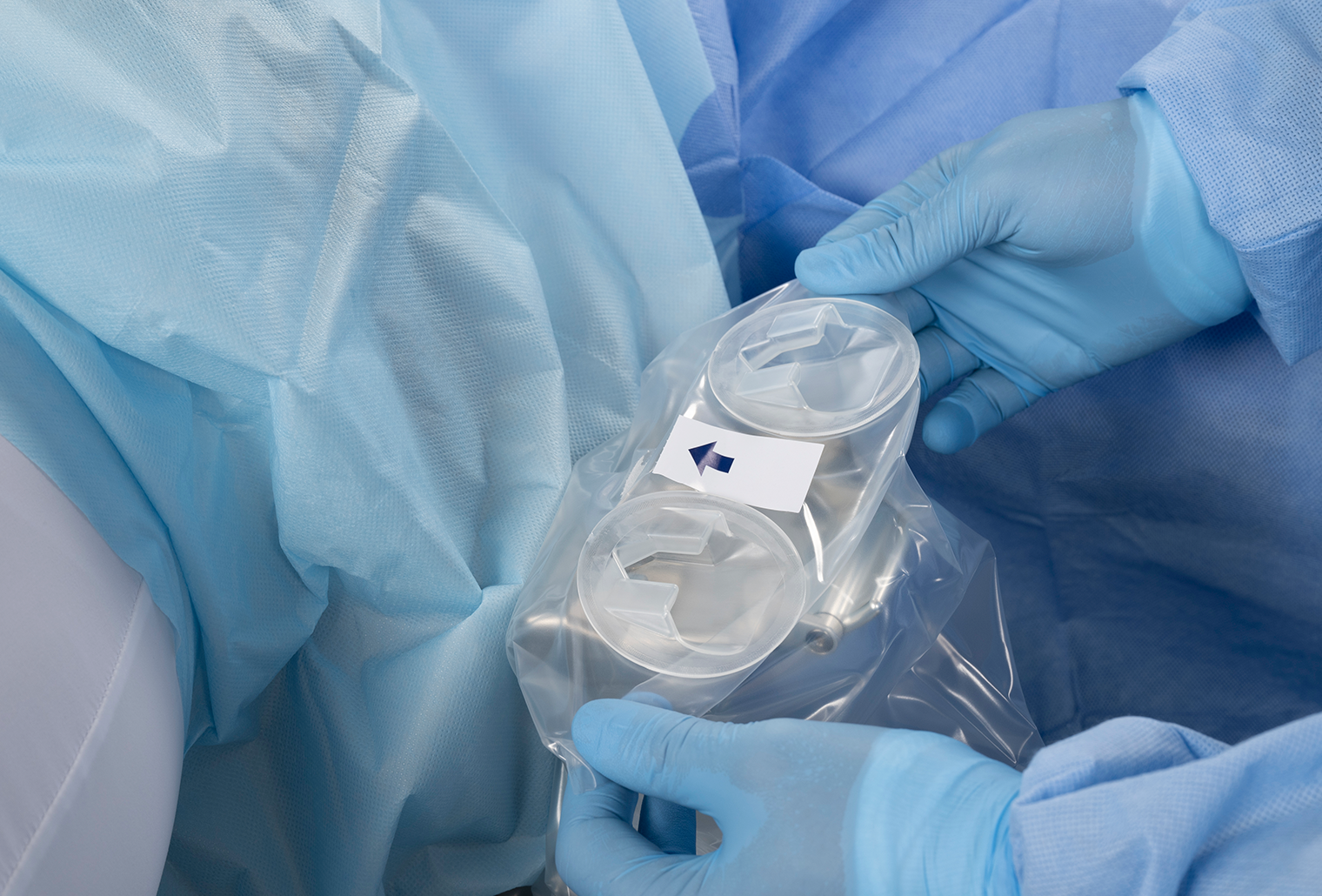

Slide the Sterile Interface Connections over the Femoral Hook Bracket Lock.

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Sterile Interface

Standard Component Installation and Adjustment

8/11

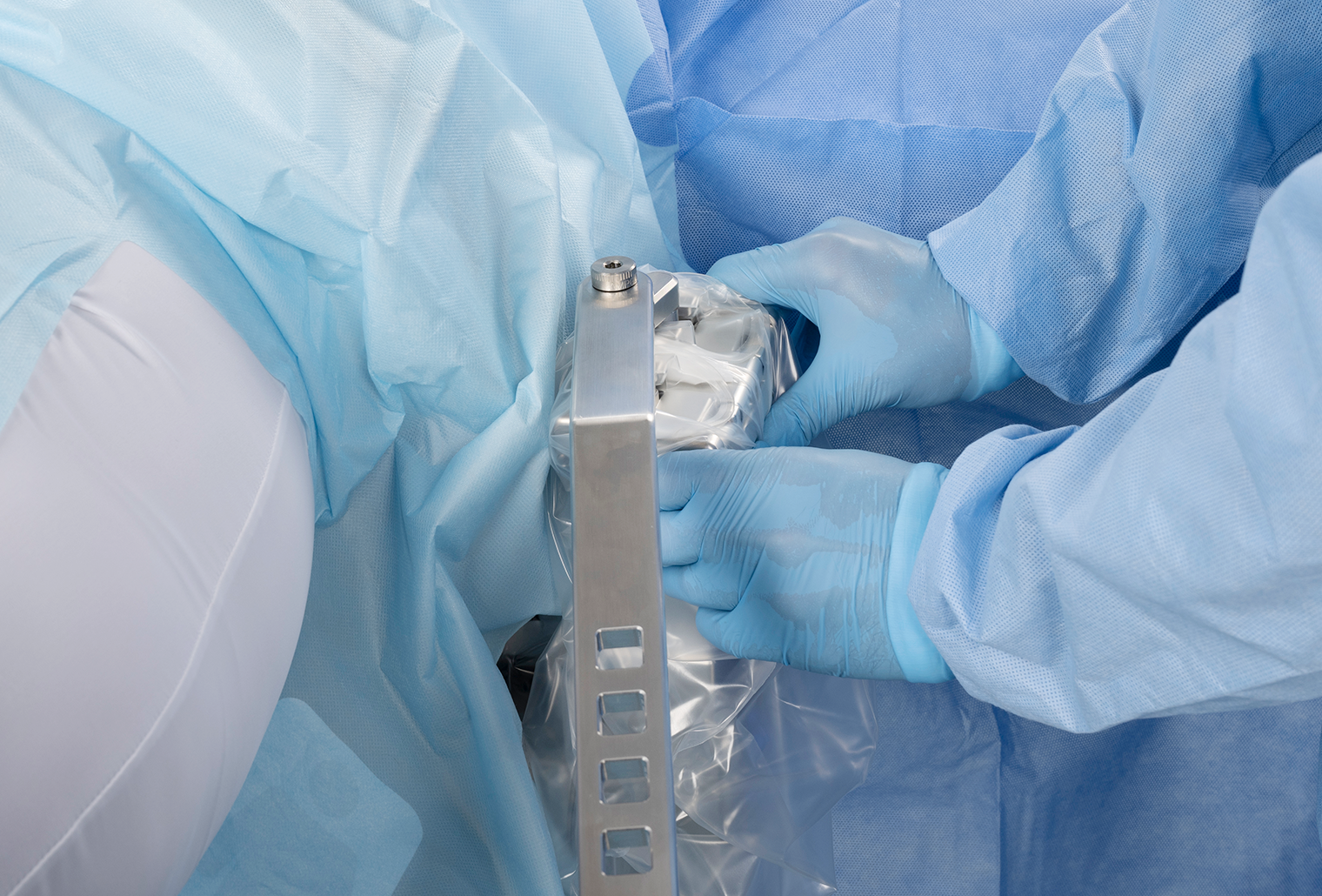

Insert the Femoral Hook Bracket into the Sterile Interface Connections, with the base of the support positioned away from the patient.

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Femoral Hook Bracket

Standard Component Installation and Adjustment

9/11

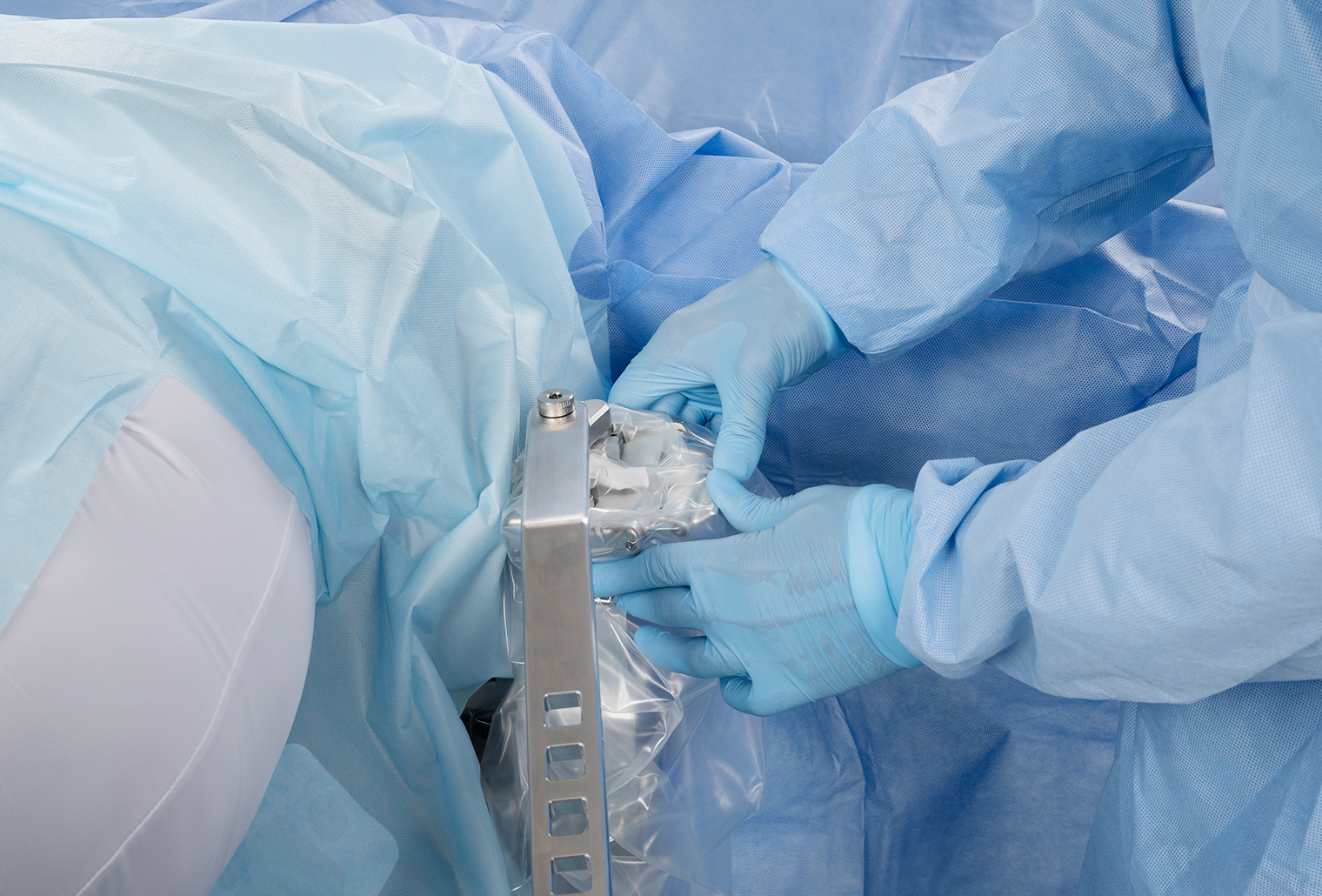

Press down on the Femoral Hook Bracket Lock to secure the Femoral Hook Bracket.

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Lock in Place

Standard Component Installation and Adjustment

10/11

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Standard Component Installation and Adjustment

11/11

Setup Complete

For more information or questions about this setup or any setup, please refer to the Owner's Manual or contact Mizuho OSI for additional support.

Adante Hip Draping Setup is complete
