Adante Hip Procedure Setup

1/12

Attach both left and right Adante FlexLation Spars to the platform and lock in place.

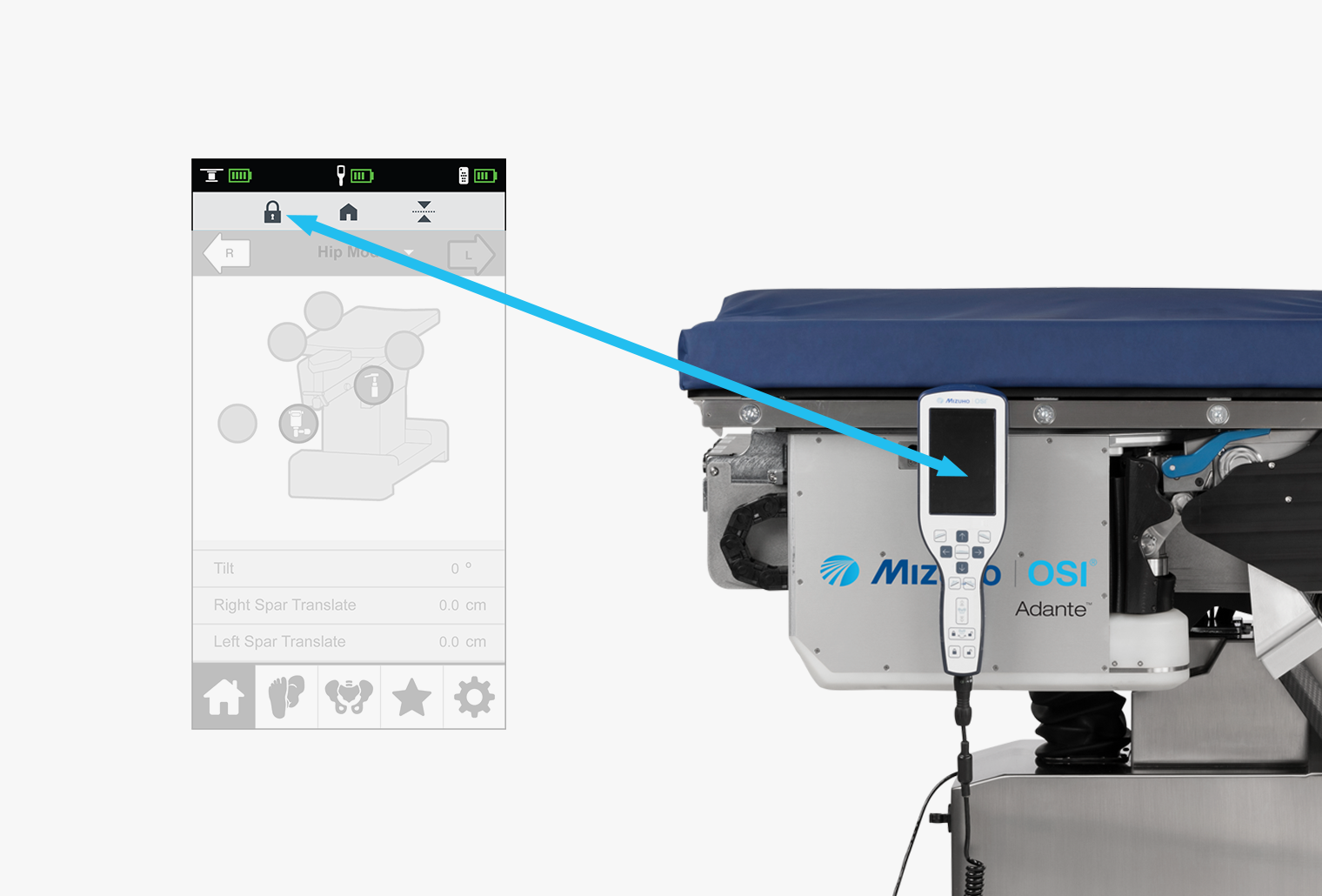

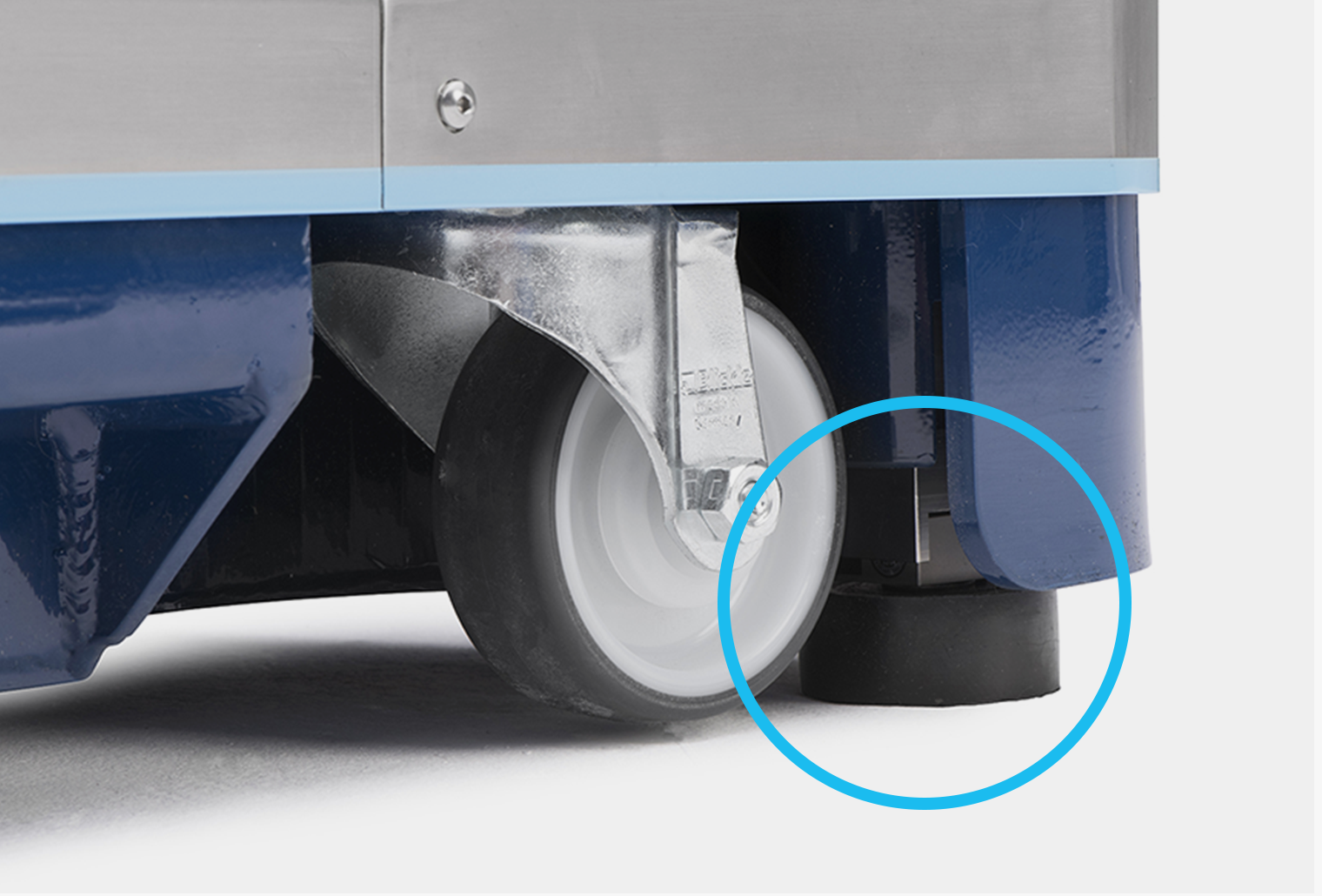

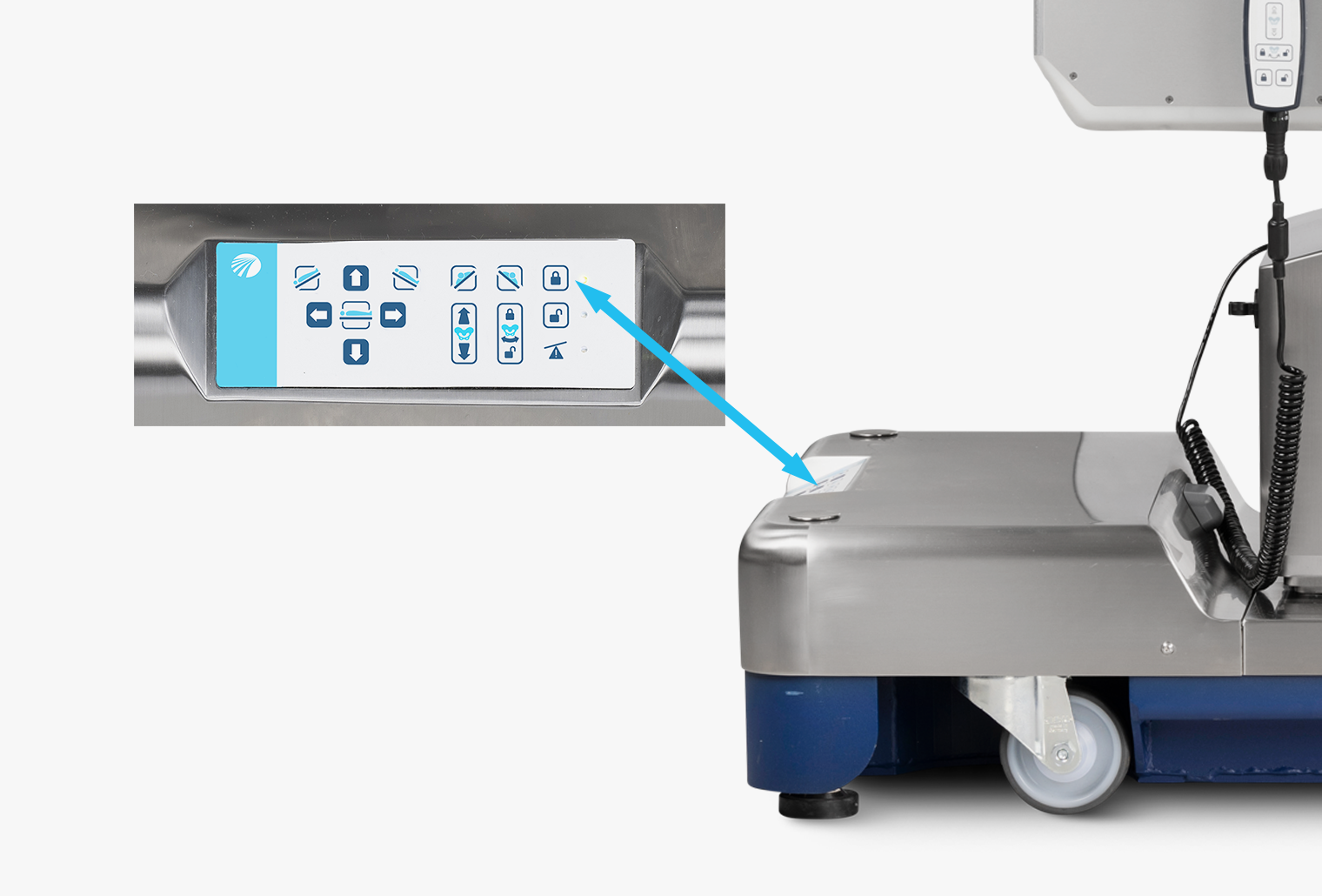

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Standard Component Installation and Adjustment

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

VIEW NOW

CONTINUE WITH SETUP

FlexLation Spars

Standard Component Installation and Adjustment

Install a QuickFlex Arm Board to both the left and right sides of the platform, then position and secure the patient's arm.

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

QuickFlex Arm Board

Standard Component Installation and Adjustment

2/12

Pelvic Center Board

Standard Component Installation and Adjustment

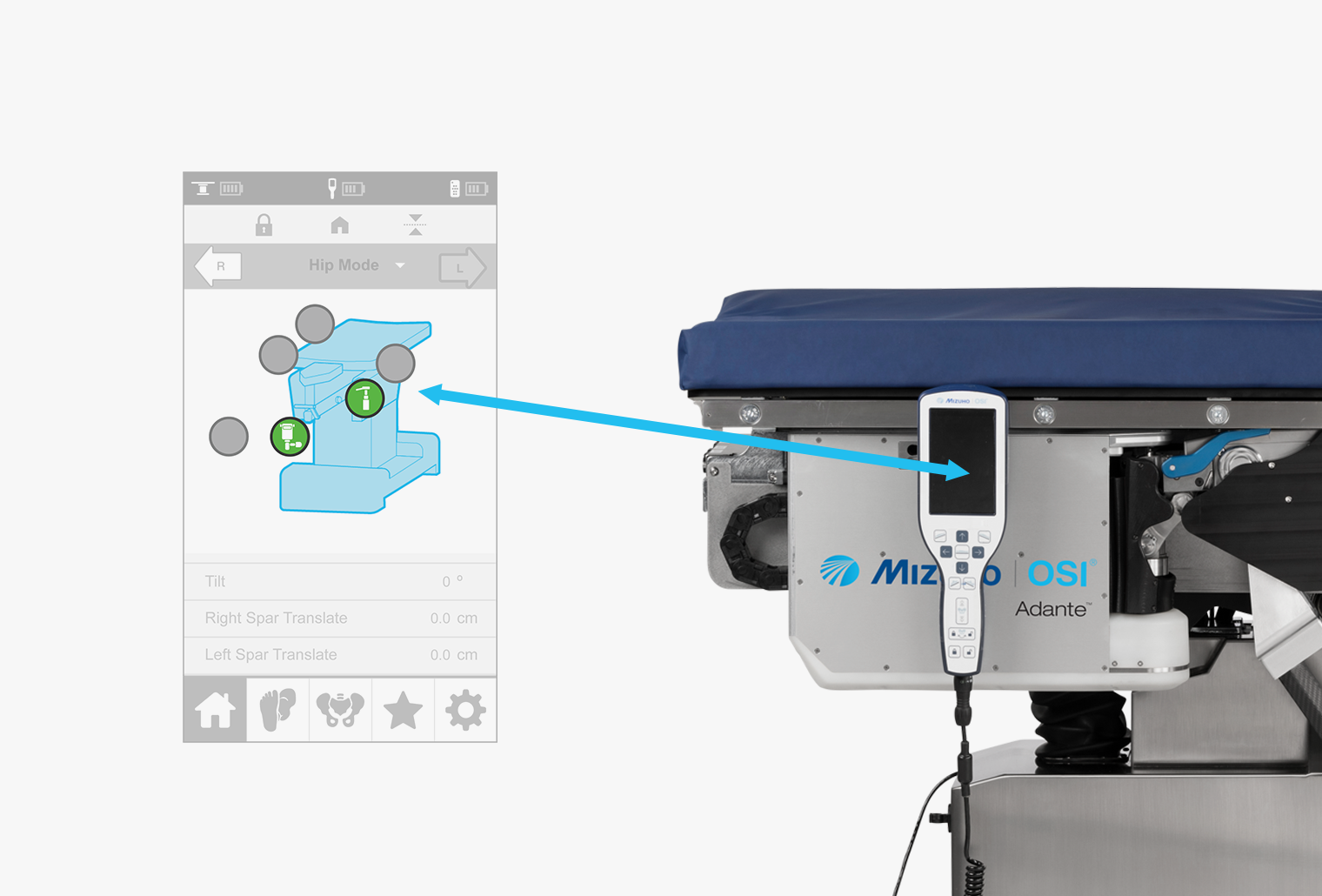

Note: Confirm on the Hand Pendant Home Screen that the board is recognized (it turns blue when connected).

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

3/12

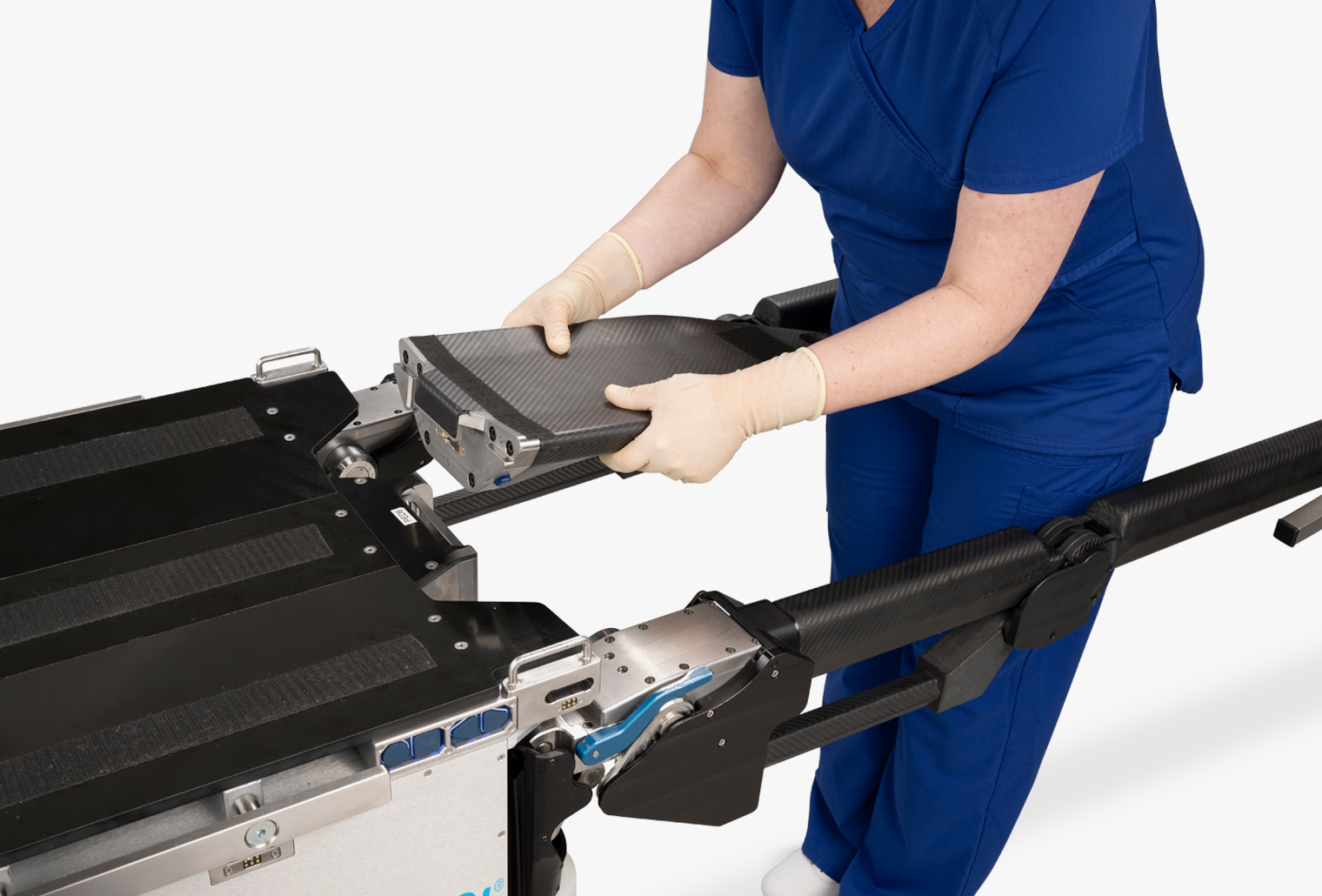

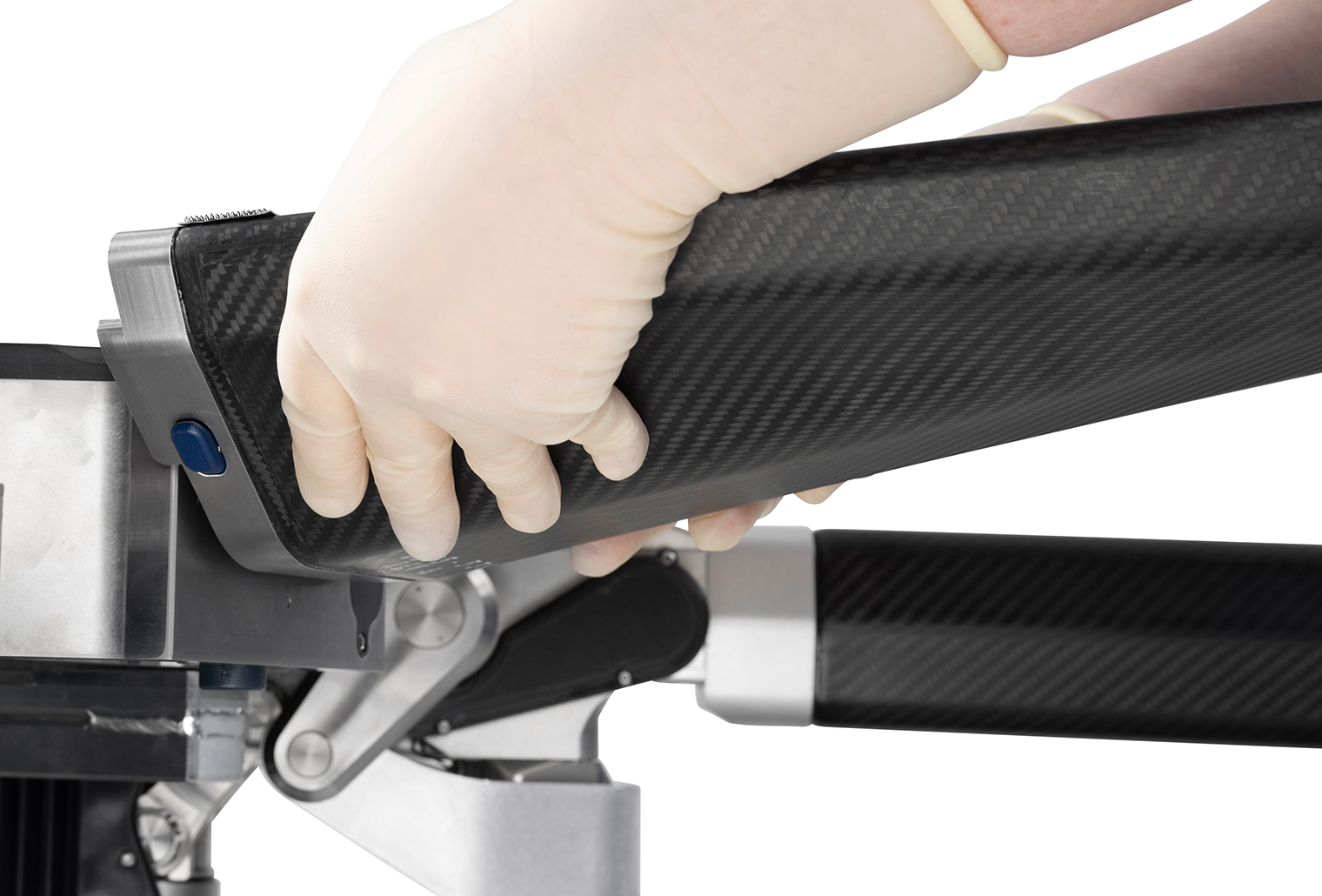

Install the Pelvic Center Board.

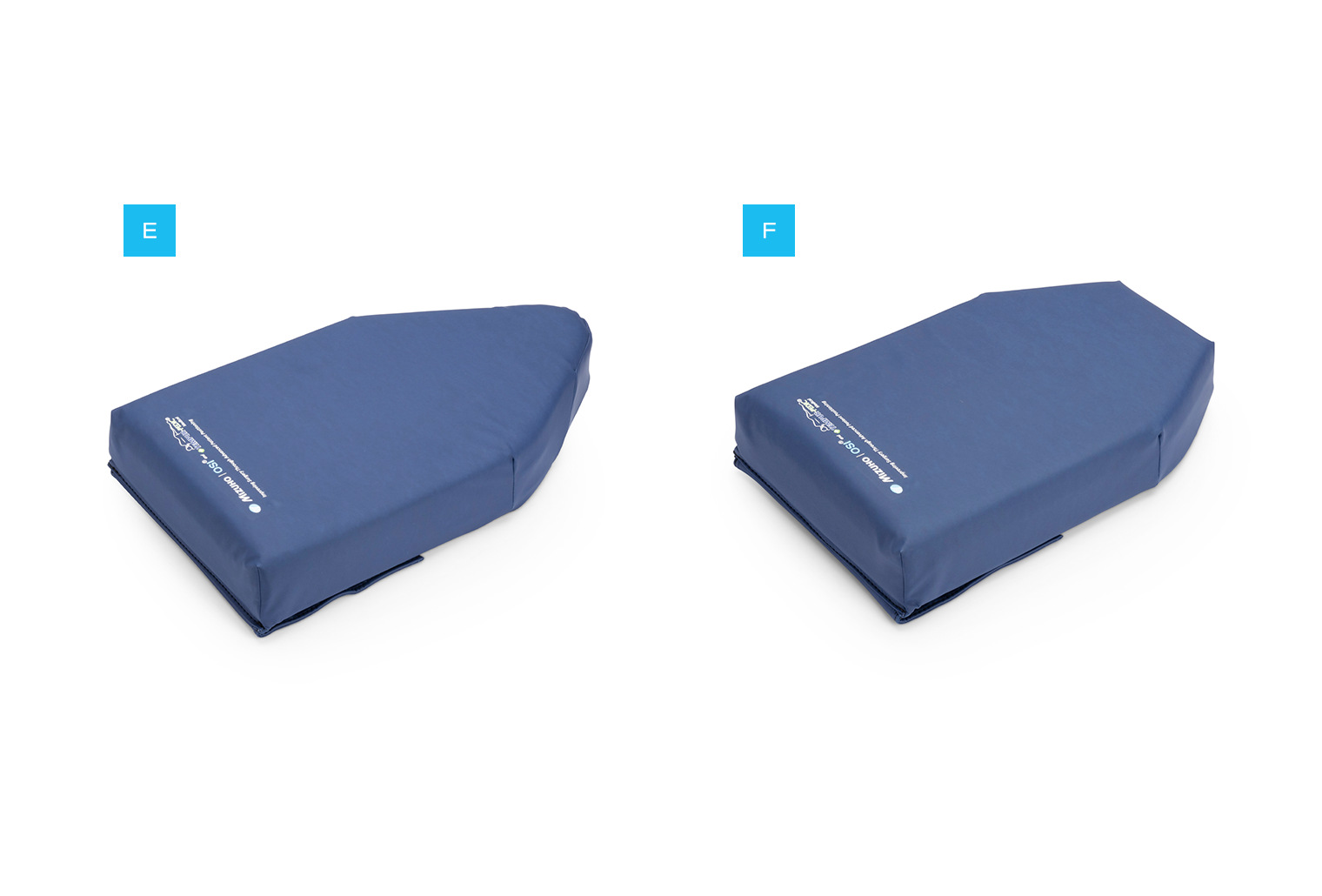

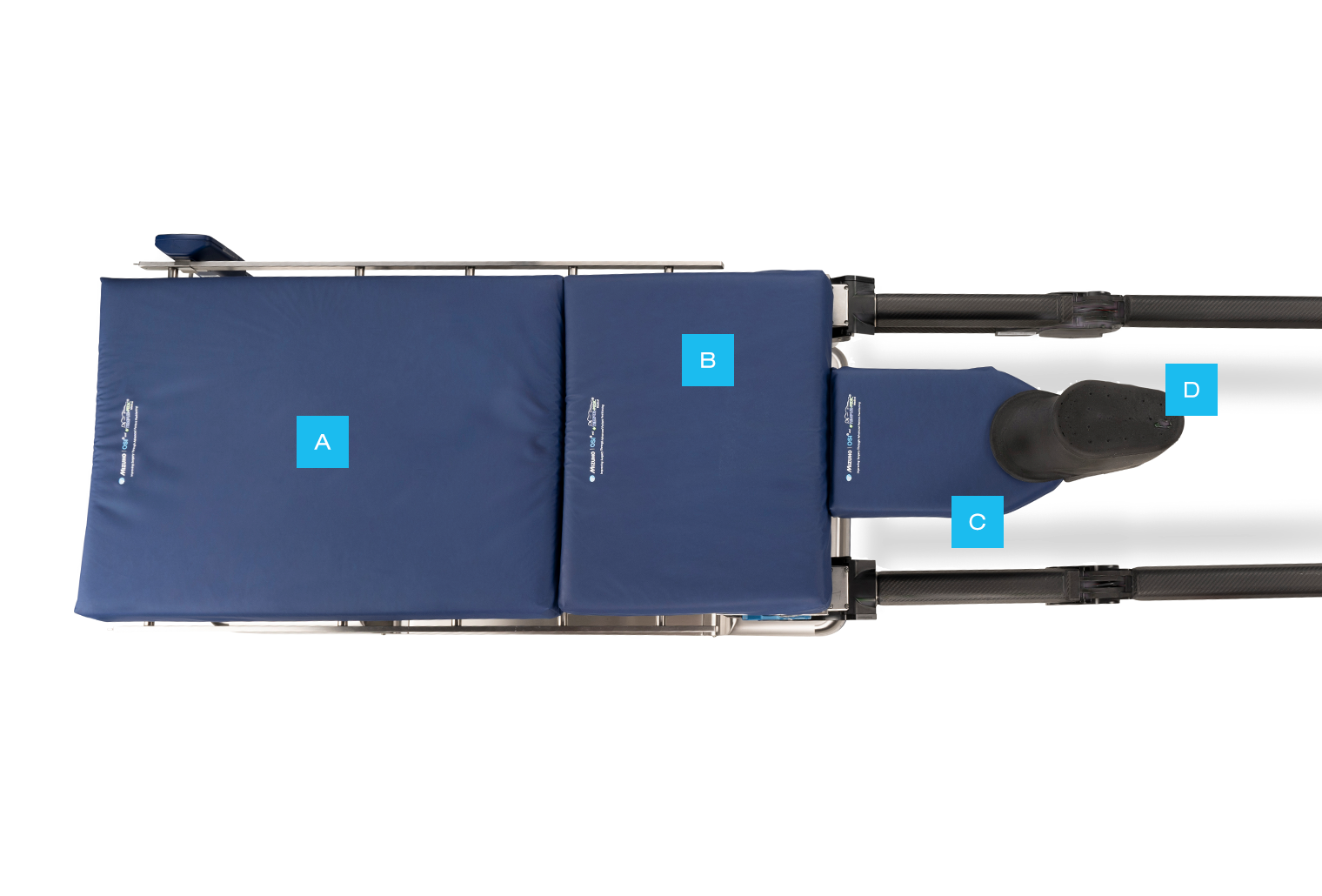

Apply Tempur-Pedic pads and saddle post (if used) for hip procedures as shown here.

Adante Superior Trunk Pad
Adante Supine Trunk Pad
Adante Pelvic Center Pad
Adante Saddle Post
Adante Pelvic Center Postless Pad
Adante Pelvic Center Pad

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Tempur-Pedic Pads

Standard Component Installation and Adjustment

4/12

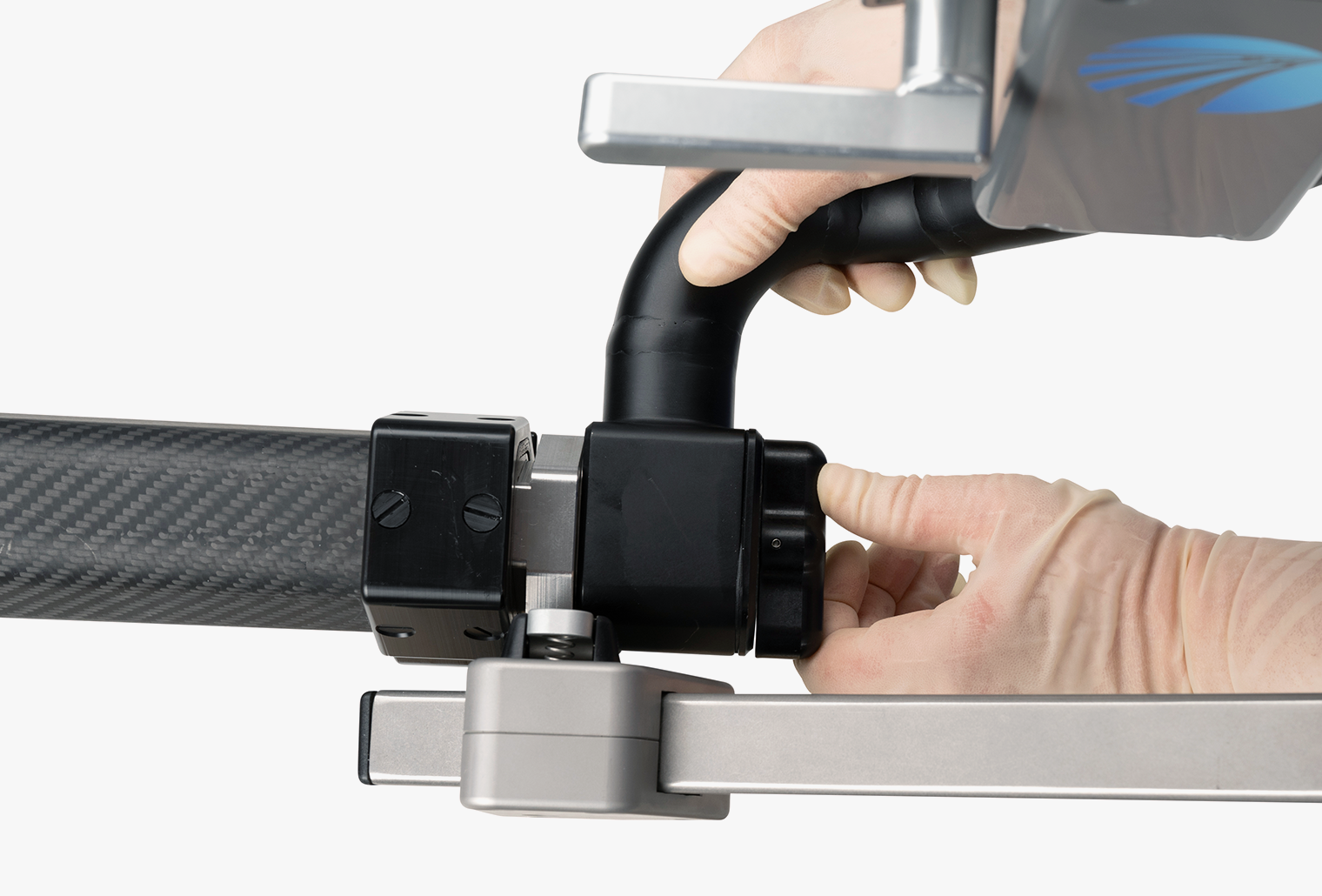

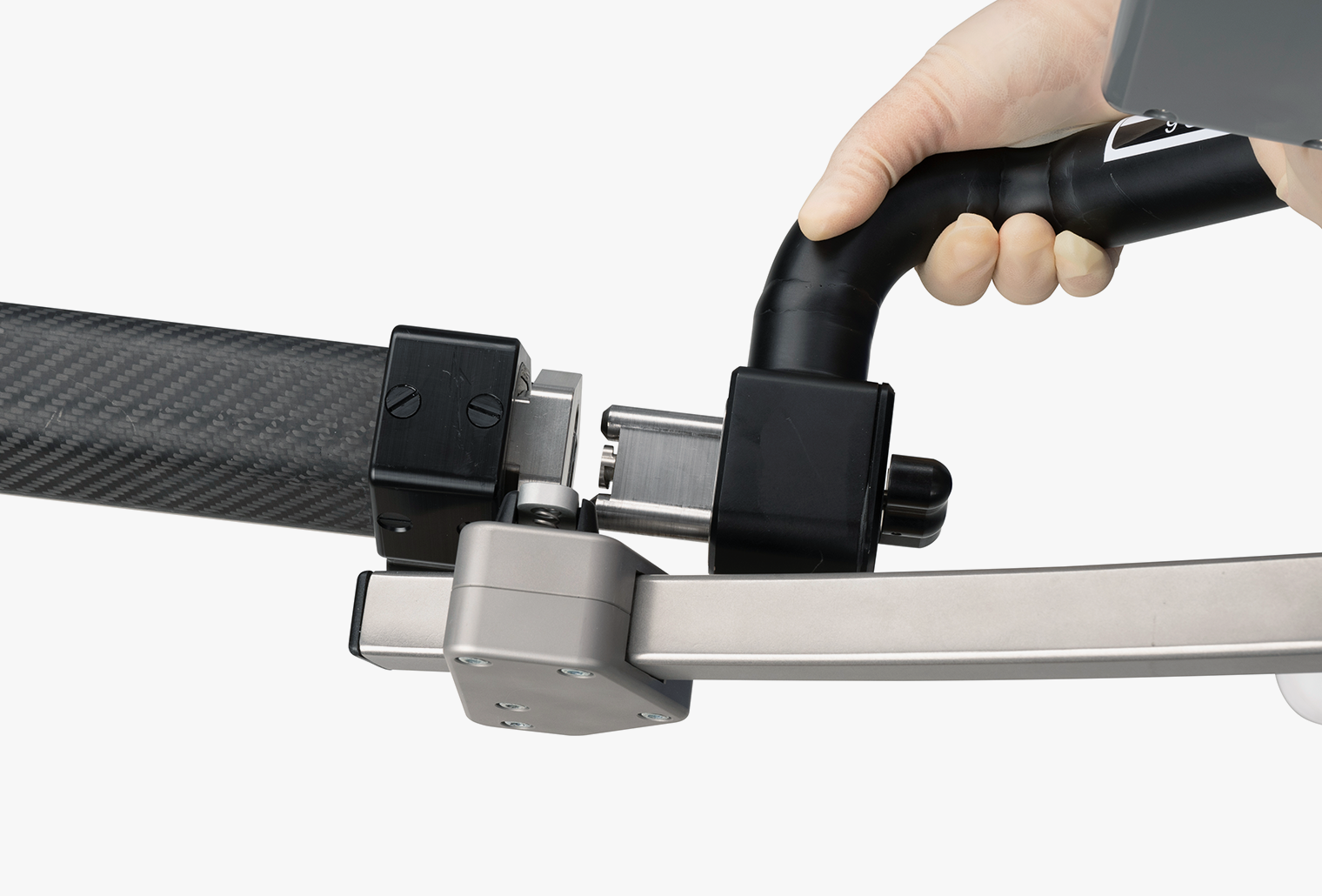

Insert the appropriately sided Traction Mount into the Mizuho Accessory Interface located at the end of the spar and lock into place.

NOTE: The LED lights on the Traction Mount will light up blue when properly connected.

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Installing the Traction Mounts

Standard Component Installation and Adjustment

5/12

Hook the Adante Body Safety Strap to the attachment loop on one side of the platform.

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Body Safety Strap

Standard Component Installation and Adjustment

6/12

Insert the Femur Lift Assembly on the operative side of the table and attach the Femoral Hook Support and Femoral Hook.

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Femur Lift Assembly

Standard Component Installation and Adjustment

7/12

Install components per figure shown.

Leg Strap
Body/Safety Strap (Unless using Durable Safety Strap)
Supine/Lateral Head Rest
Arm Strap
Spar Elbow/Knee Cover
Spar Shoulder Cover
Adjustable Arm Board Pad
Saddle Post Liner
Extended Saddle Post Liner (Hip Arthroscopy Procedure Kit

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Adante Hip Protection Kit

Standard Component Installation and Adjustment

8/12

Place the patient transfer board underneath the patient, adjust the platform to the appropriate height for patient transfer from the stretcher, then transfer the patient to the platform in the supine position.

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Optional-Patient Transfer Board

Standard Component Installation and Adjustment

9/12

Remove the patient transfer board by sliding it out from underneath the properly positioned patient.

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Patient Transfer Board Removal

Standard Component Installation and Adjustment

10/12

Slide the Adante Traction Sandal onto the Adante Traction Mount, then lock the sandal in place by putting the Locking Lever in the locked position.

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Traction Sandal

Standard Component Installation and Adjustment

11/12

Secure the patient with the Adante Body Safety Strap.

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Secure Patient

Standard Component Installation and Adjustment

12/12
