Adante Knee Draping Setup

Adante Knee Draping Setup

1/16

Remove the left or right Upper U Drape, depending on the operative side, from it's external packaging per AORN protocol.

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Standard Component Installation and Adjustment

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

VIEW NOW

CONTINUE WITH SETUP

Upper U Drape

Standard Component Installation and Adjustment

Align the Upper U Drape with the patient's upper thigh. Peel off the adhesive backing at the top of the drape and stick the adhesive along the upper thigh.

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Align Upper U Drape

Standard Component Installation and Adjustment

2/16

NOTE: If a tourniquet is being used, the drape can be used to isolate the tourniquet from the sterile field.

Unfold the Drape

Standard Component Installation and Adjustment

With the assistance of two (2) people, continue to unfold the drape on the left and right sides.

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

3/16

Remove the remaining adhesive backings and wrap the adhesive end around the upper thigh.

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Remove Adhesive Backing

Standard Component Installation and Adjustment

4/16

Unfold the top portion of the drape over the patient's torso and drape the non-operative leg.

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Drape Non-Operative Leg

Standard Component Installation and Adjustment

5/16

Remove the Lower U Drape from its external packaging per AORN protocol. With the assistance of two (2) people, unfold the drape on the left and right sides.

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Lower U Drape

Standard Component Installation and Adjustment

6/16

Remove the adhesive backing and wrap the adhesive end around the hamstring.

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Lower U Drape

Standard Component Installation and Adjustment

7/16

Pull the clear drape down over the knee mount.

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Lower U Drape

Standard Component Installation and Adjustment

8/16

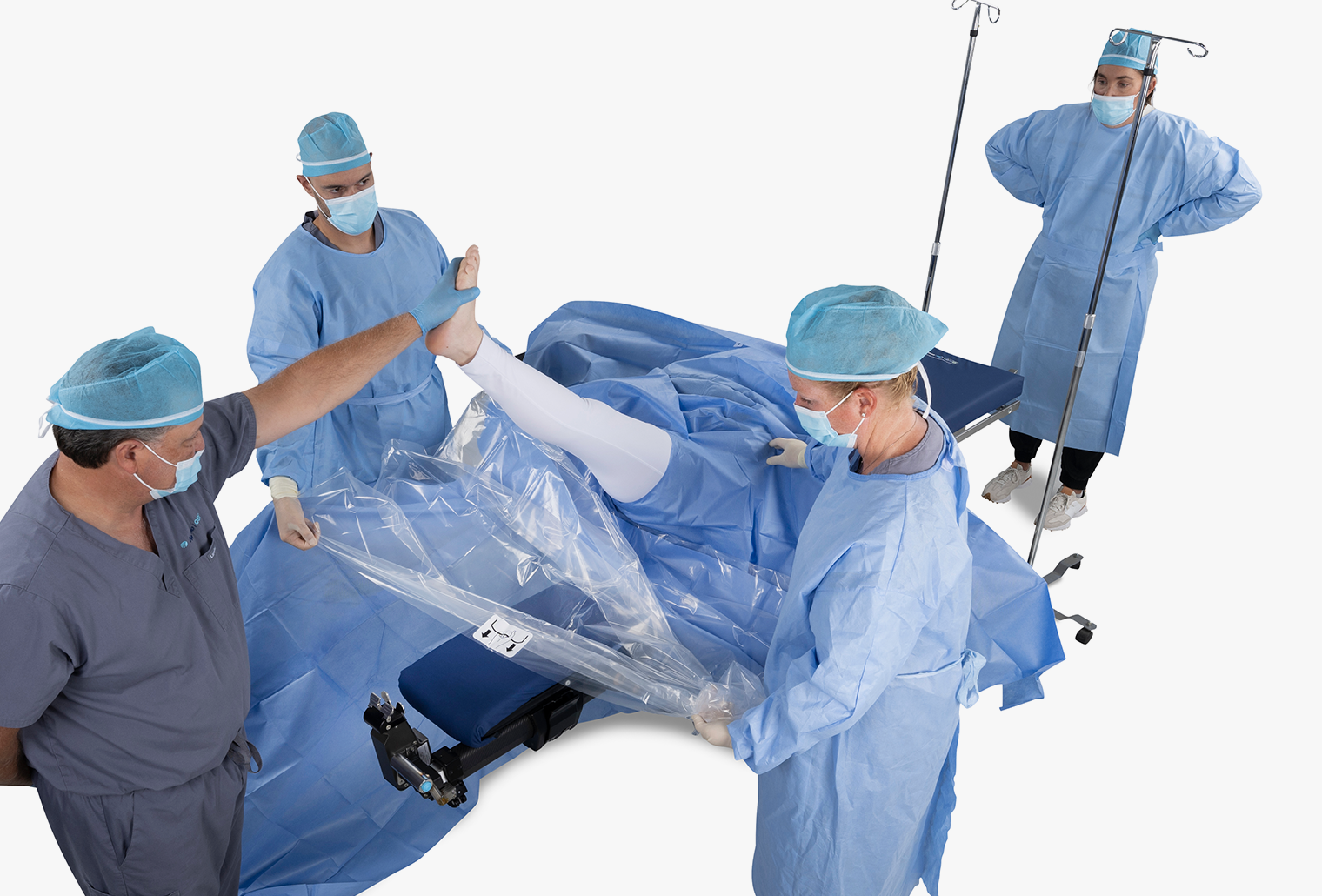

Place the patient's foot in the stockinette.

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Lower U Drape

Standard Component Installation and Adjustment

9/16

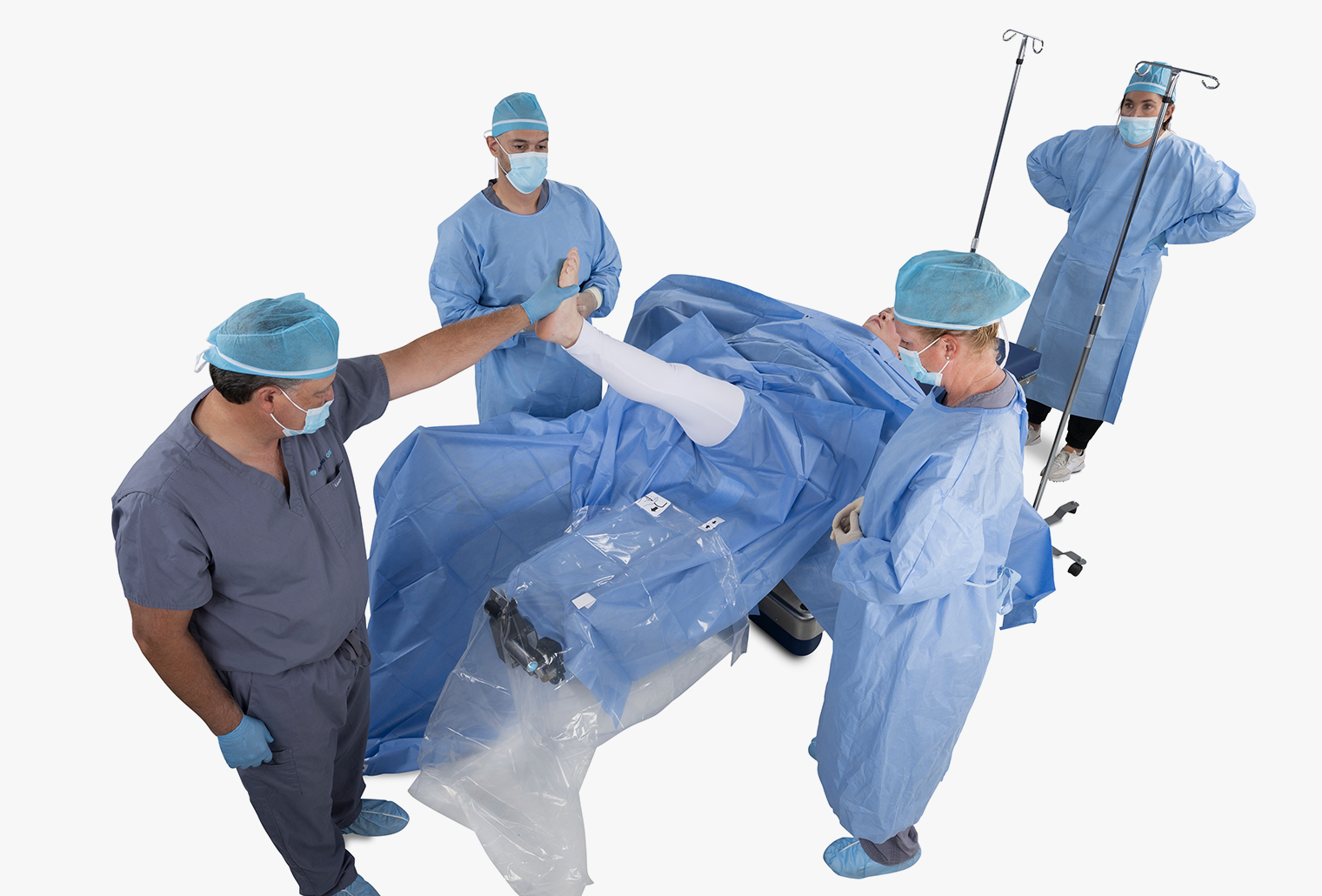

Use the tabs to pull the clear drape down to the Foot-End of the platform.

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Lower U Drape

Standard Component Installation and Adjustment

10/16

Remove the Knee Drape from its external packaging per AORN protocol. With the assistance of two (2) people, unfold the drape on the left and right sides. Place the patient's leg through the opening at the center of the drape.

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Knee Drape

Standard Component Installation and Adjustment

11/16

Pull the top half of the drape over the patient's body and Head-End of the platform. Pull the lower half of the drape toward the Foot-End of the platform. Place the Knee Mount Gripper Liner over the Knee Mount Gripper.

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Knee Mount Gripper

Standard Component Installation and Adjustment

12/16

Peel off the adhesive tabs from the Knee Foot Support Liner and insert the Liner into the Adante Knee Foot Support, starting with the heel.

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Knee Foot Support Liner

Standard Component Installation and Adjustment

13/16

Place the patient's foot into the Adante Knee Foot Support and secure the foot to the plate using Coban™

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Knee Foot Support

Standard Component Installation and Adjustment

14/16

Attached the Knee Foot Support to the Knee Mount.

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Knee Mount

Standard Component Installation and Adjustment

15/16

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Standard Component Installation and Adjustment

16/16

Setup Complete

Adante Knee Draping Setup Is Complete

Standard Component Installation and Adjustment

For more information or questions about this setup or any setup, please refer to the Owner's Manual or contact Mizuho OSI for additional support.
