Adante Knee Procedure Setup

Knee Procedure Setup

1/9

Attach both left and right Adante FlexLation Spars to the platform and lock in place using the Spar Safety Latch.

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Standard Component Installation and Adjustment

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

VIEW NOW

CONTINUE WITH SETUP

FlexLation Spars

Standard Component Installation and Adjustment

Hold the locking lever of the Pivoting Arm Board at the base of the bracket in the open position and over the edge of the table.

Lower the Arm Board into place and release the locking lever.

Pull the lever at the distal end of the Arm Board to release the latch, pivot the Arm Board to the desired position, and then release the lever to lock into position

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Pivoting Arm Board

Standard Component Installation and Adjustment

Knee Procedure Setup

2/9

Knee Extension Board

Standard Component Installation and Adjustment

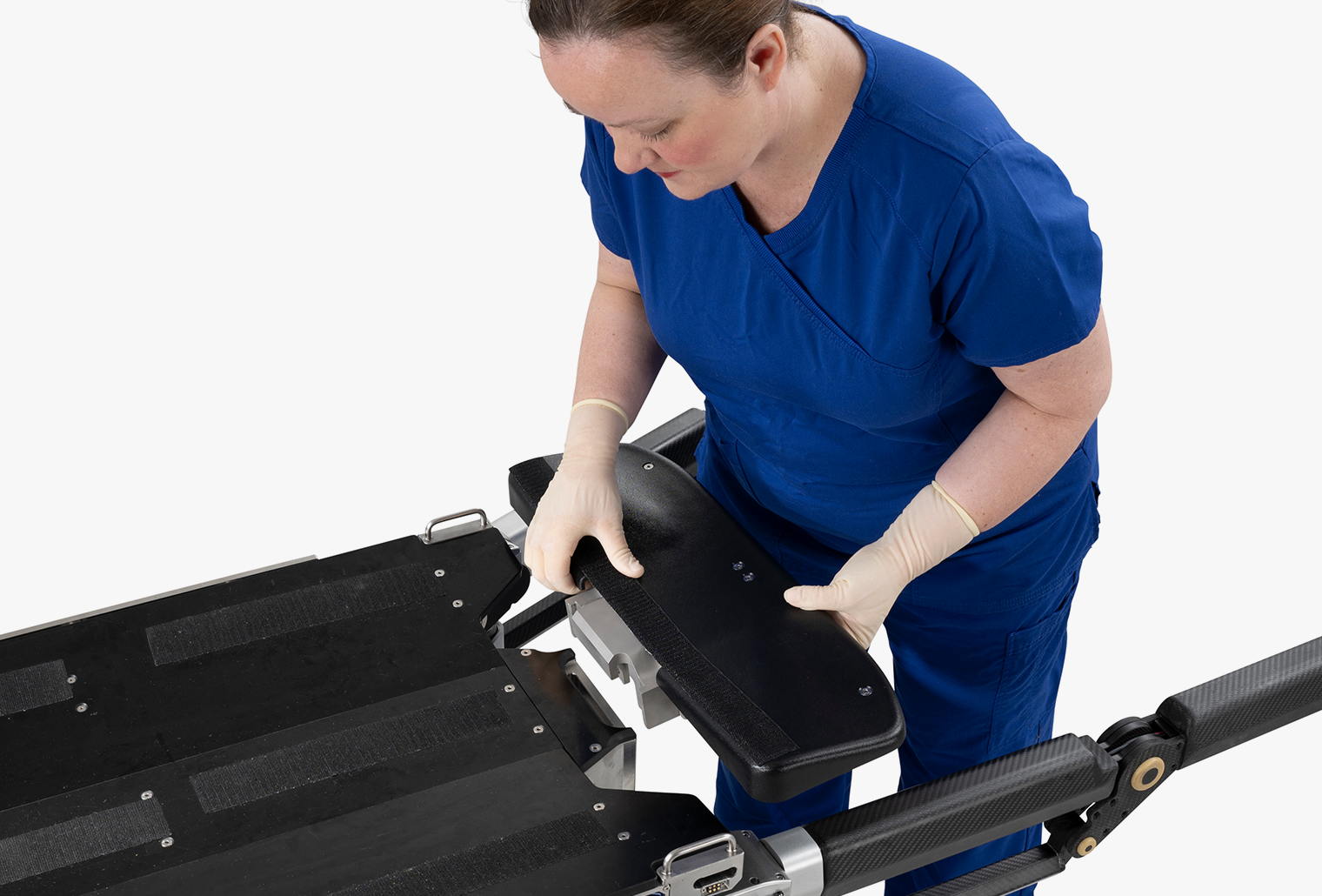

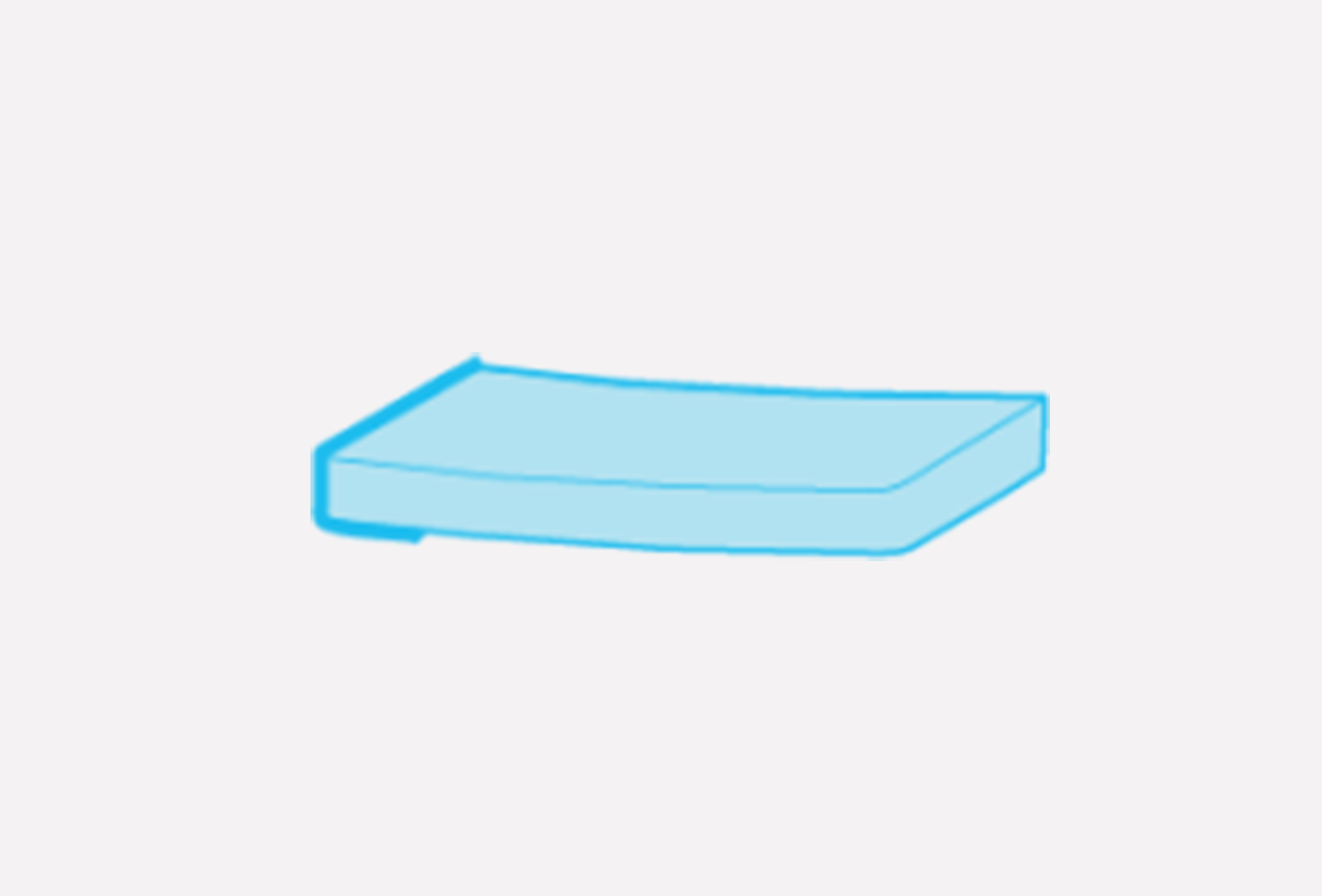

Insert the Adante Knee Extension Board into the static pelvic mount found at the Foot-End of the platform top.

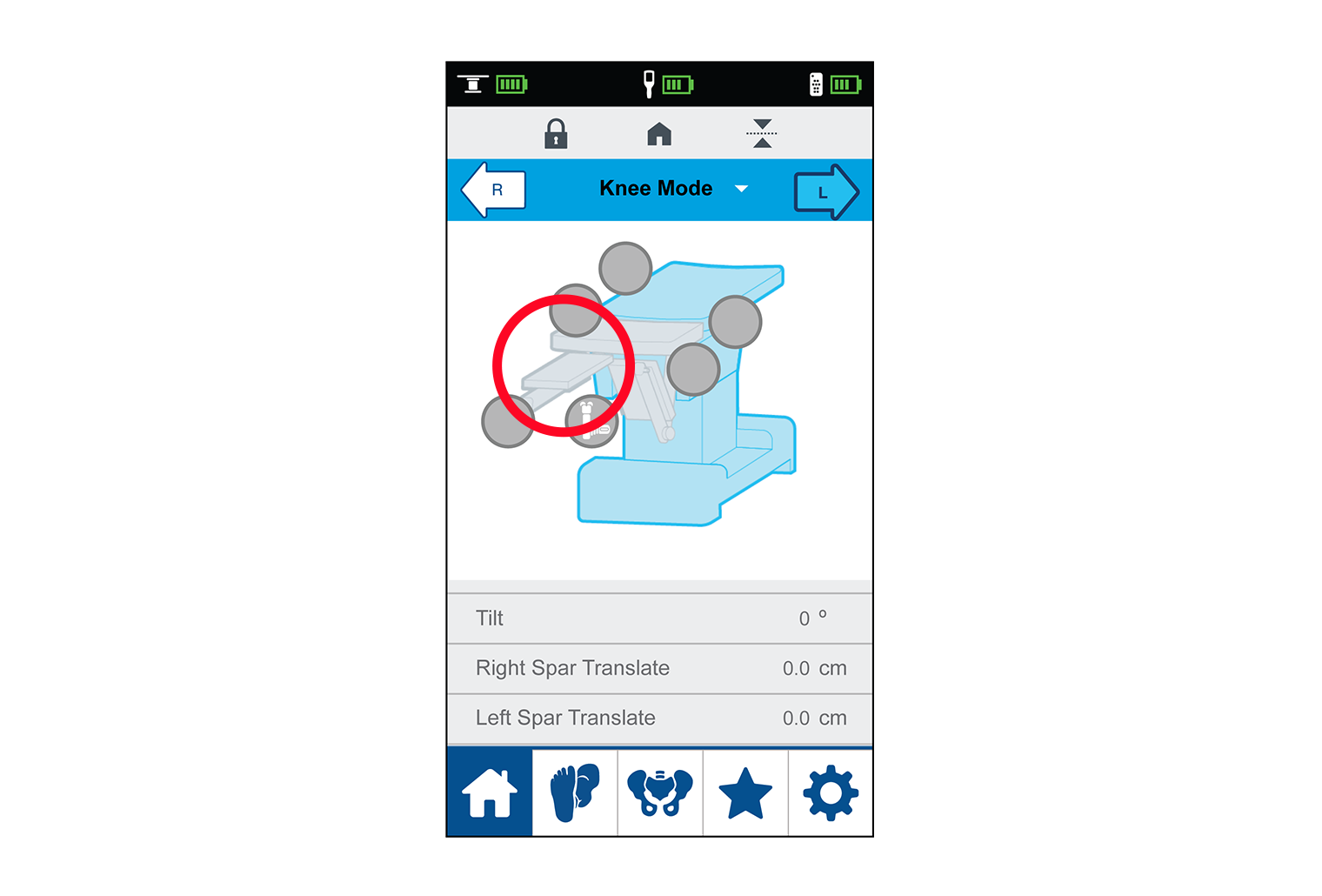

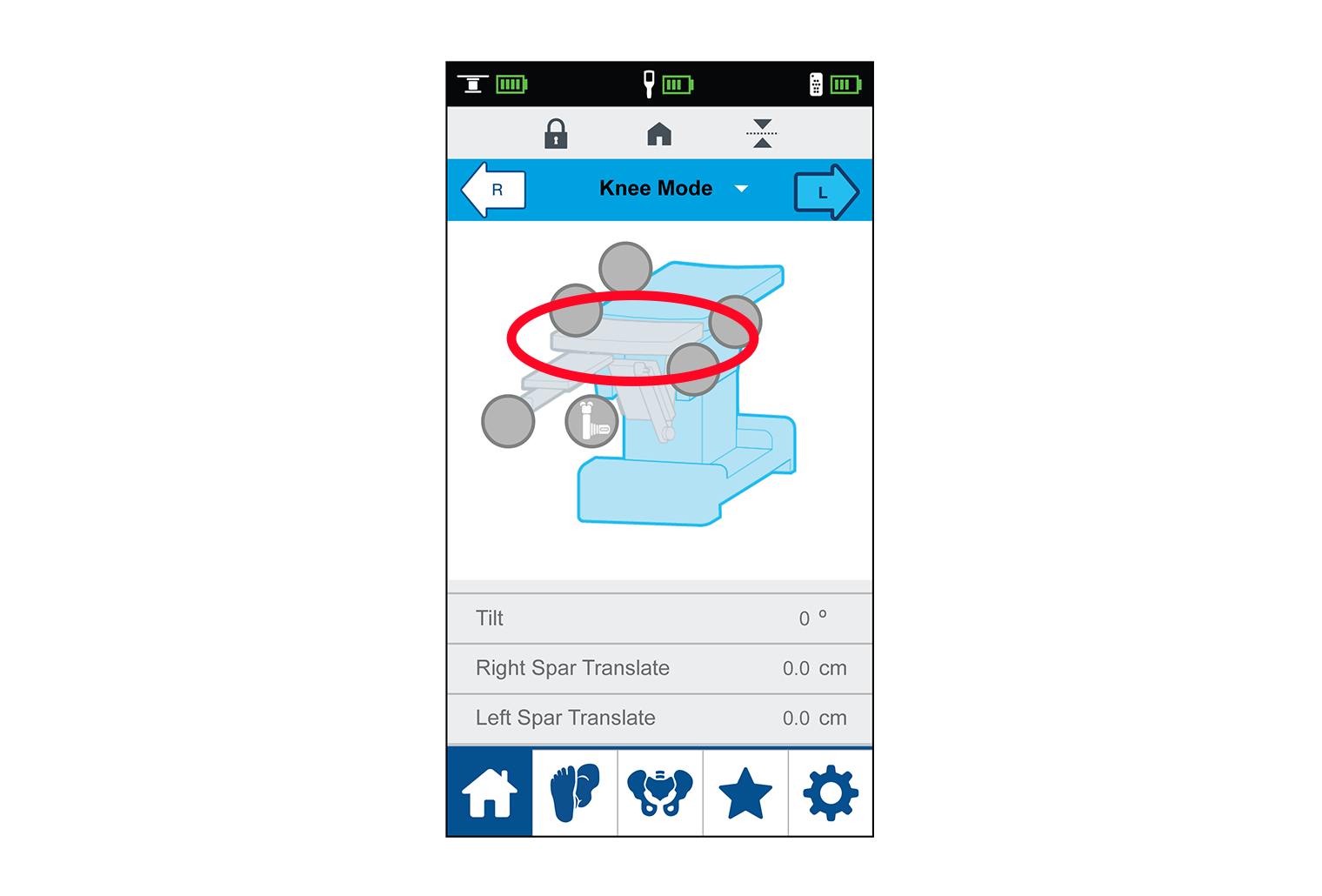

NOTE: The Knee Extension Board in the Adante Intellitouch Hand Pendant Home Screen will turn blue when properly engaged into the mount.

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Knee Procedure Setup

3/9

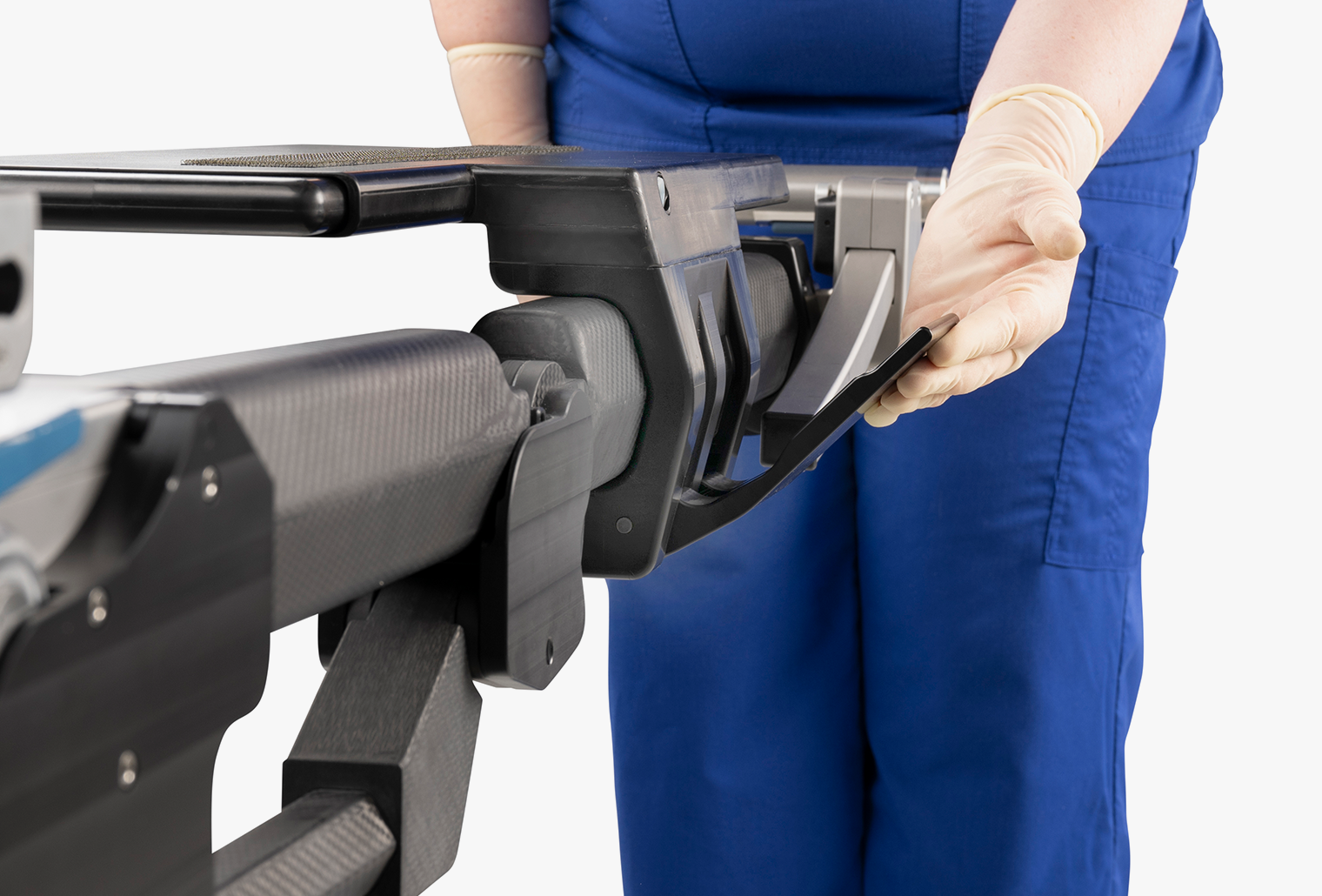

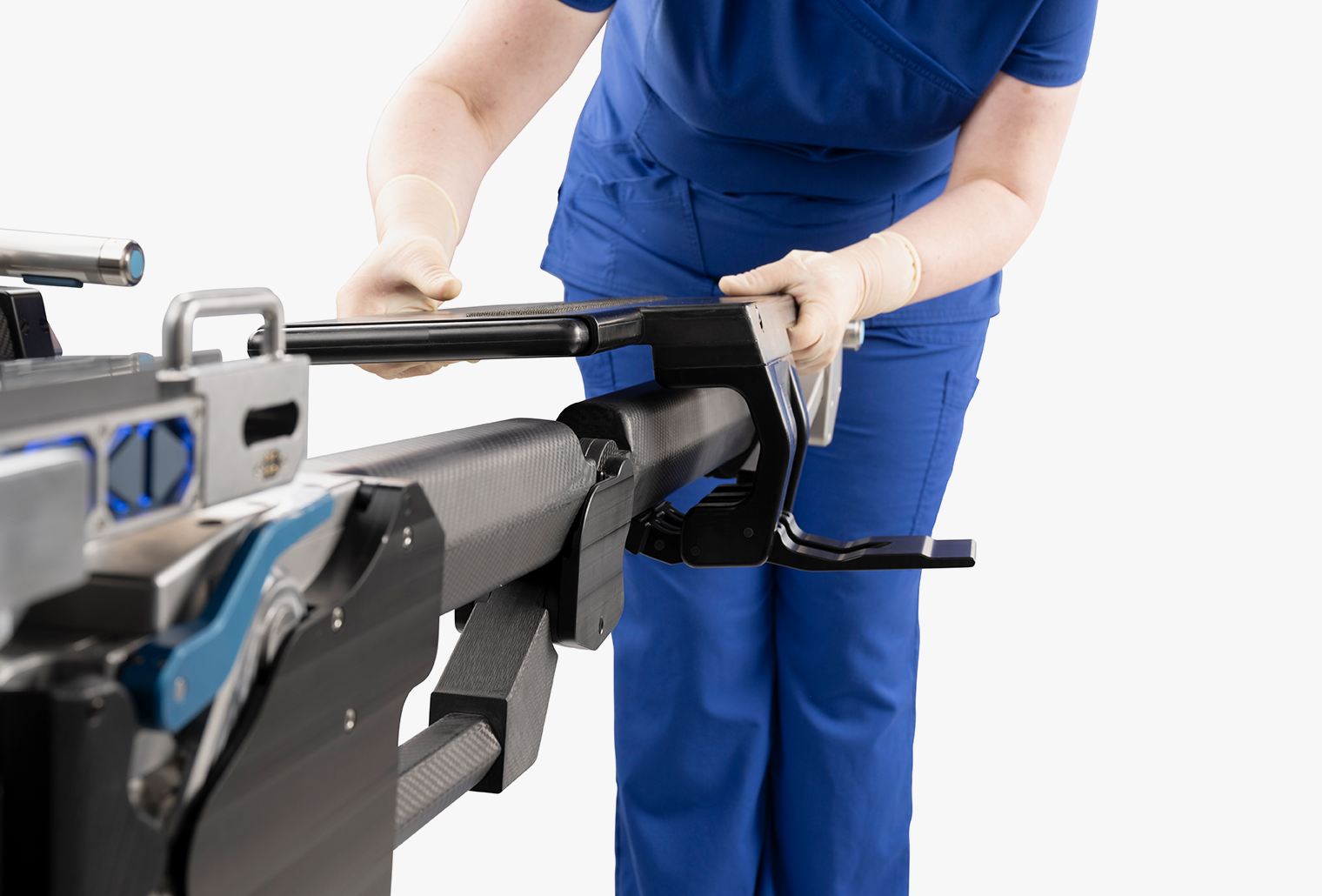

Attach an Adante Spar Leg Board to each FlexLation Spar

WARNING: Be careful when placing hands near movable parts, crevices, or locking mechanisms, as these areas may present a pinch hazard. Failure to do so may result in harm to the healthcare professional.

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Spar Leg Board

Standard Component Installation and Adjustment

Knee Procedure Setup

4/9

Knee Procedure Setup

Adante Superior Trunk Pad
Adante Knee Extension Board Pad
Adante Spar Leg Board Pad, Left
Adante Supine Trunk Pad
Adante Spar Leg Board Pad, Right

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

TempurPedic^® Pads

Standard Component Installation and Adjustment

5/9

Knee Procedure Setup

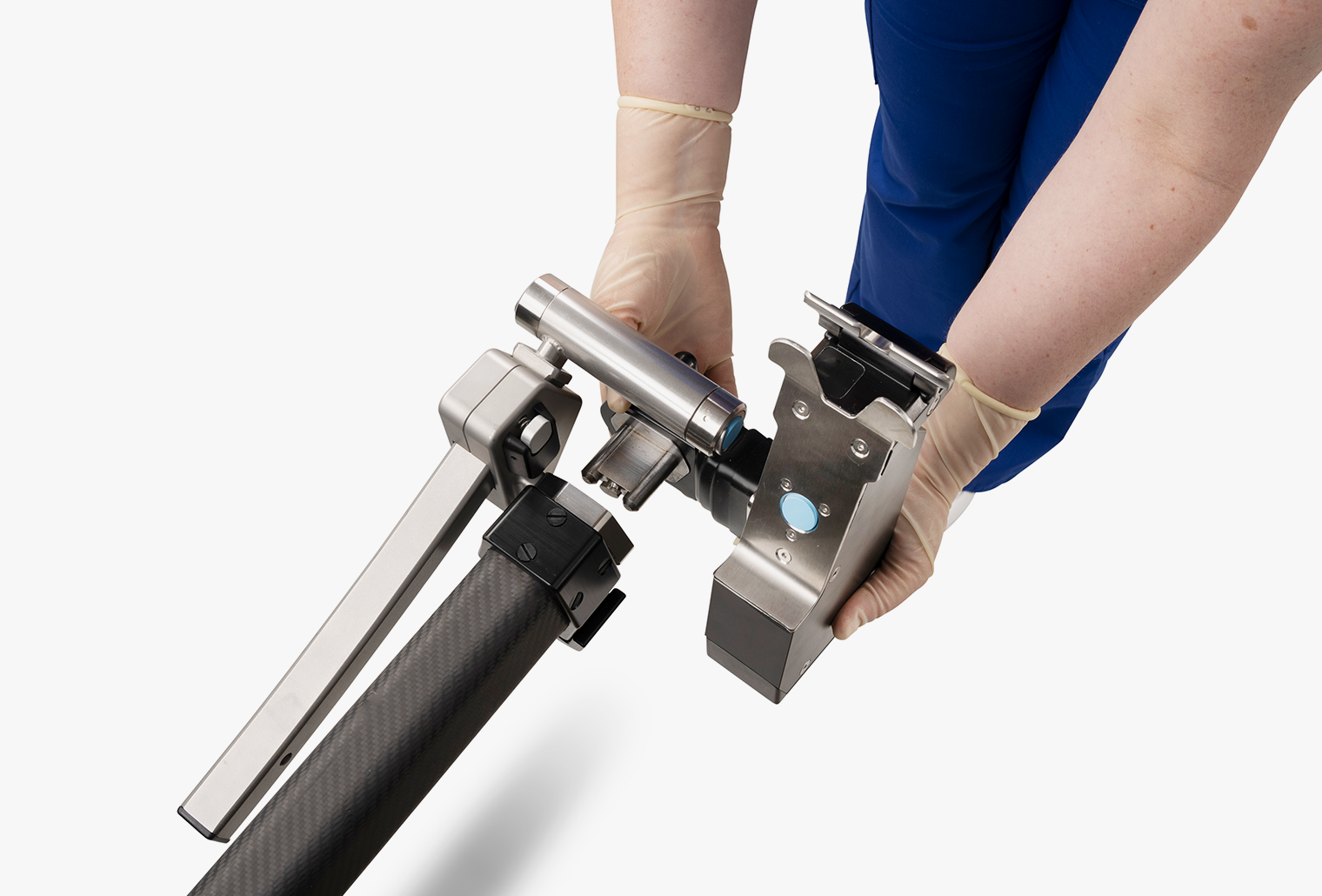

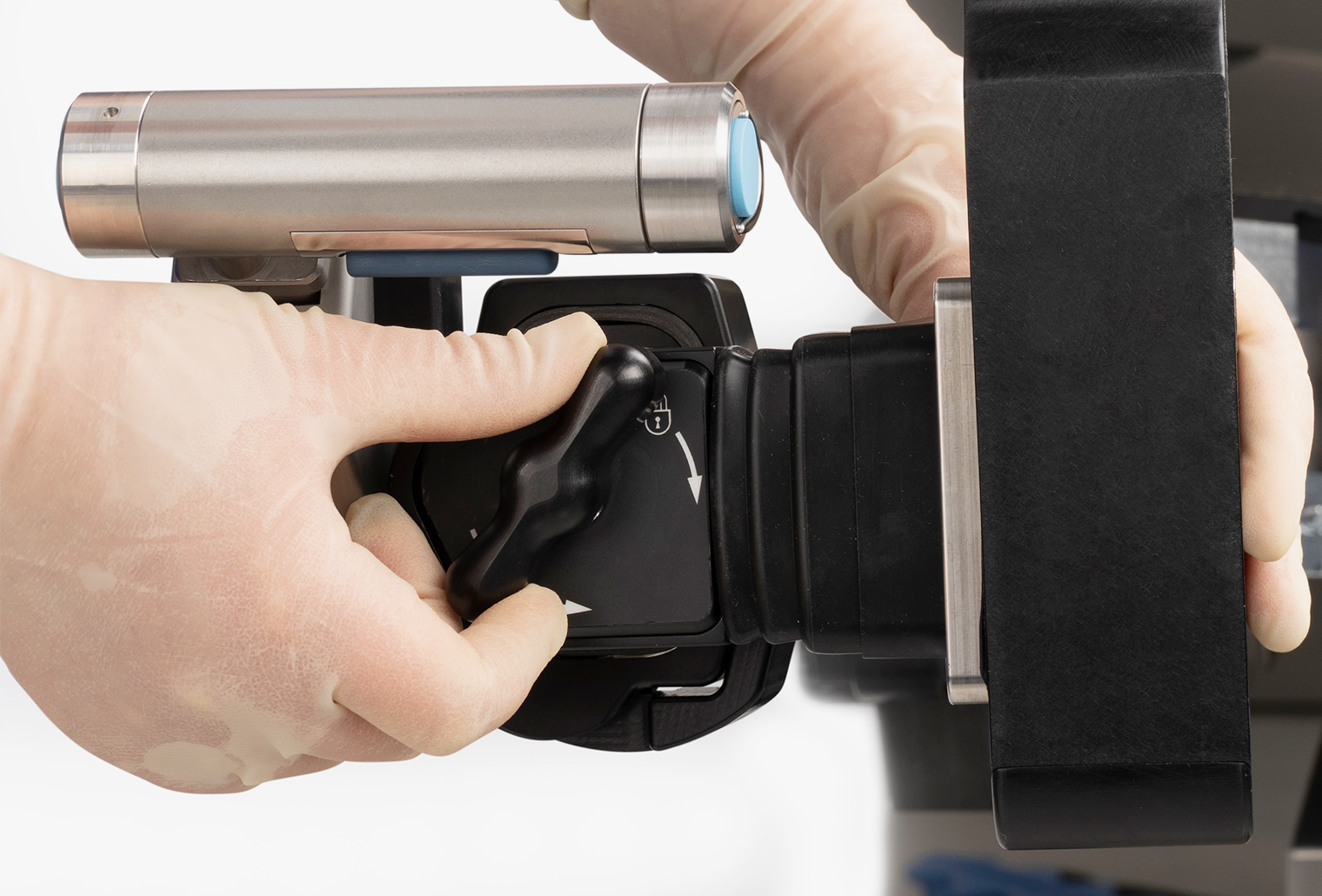

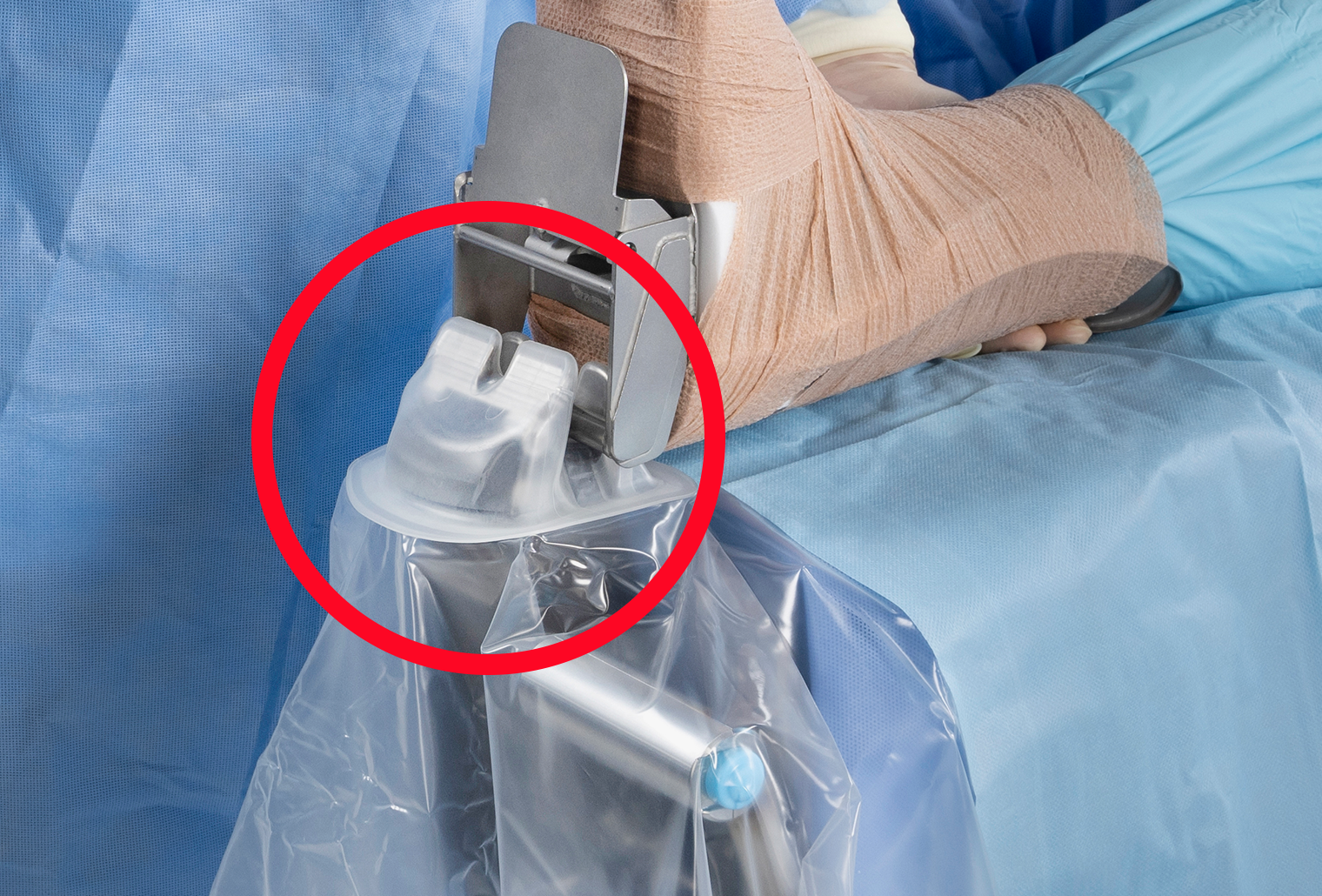

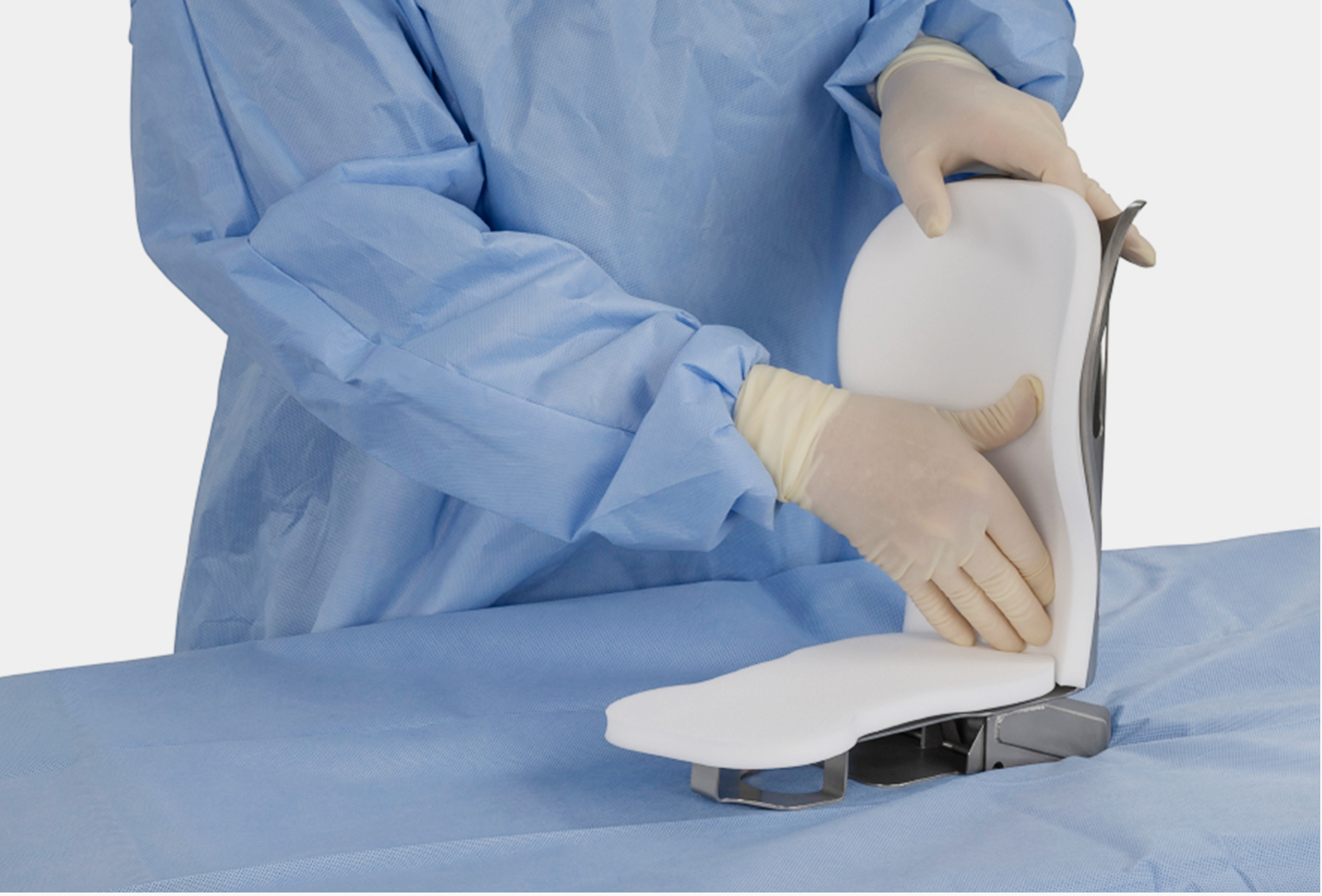

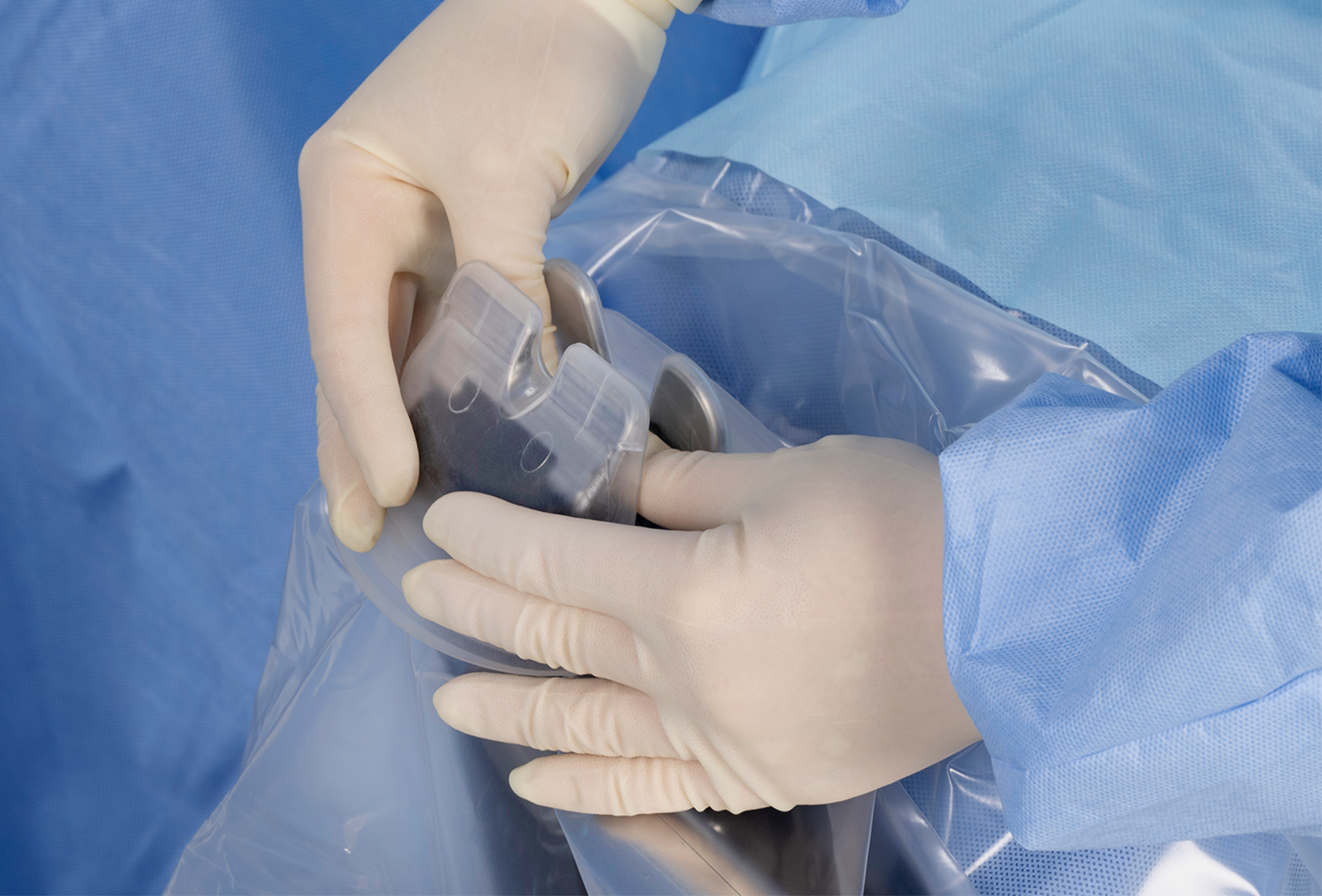

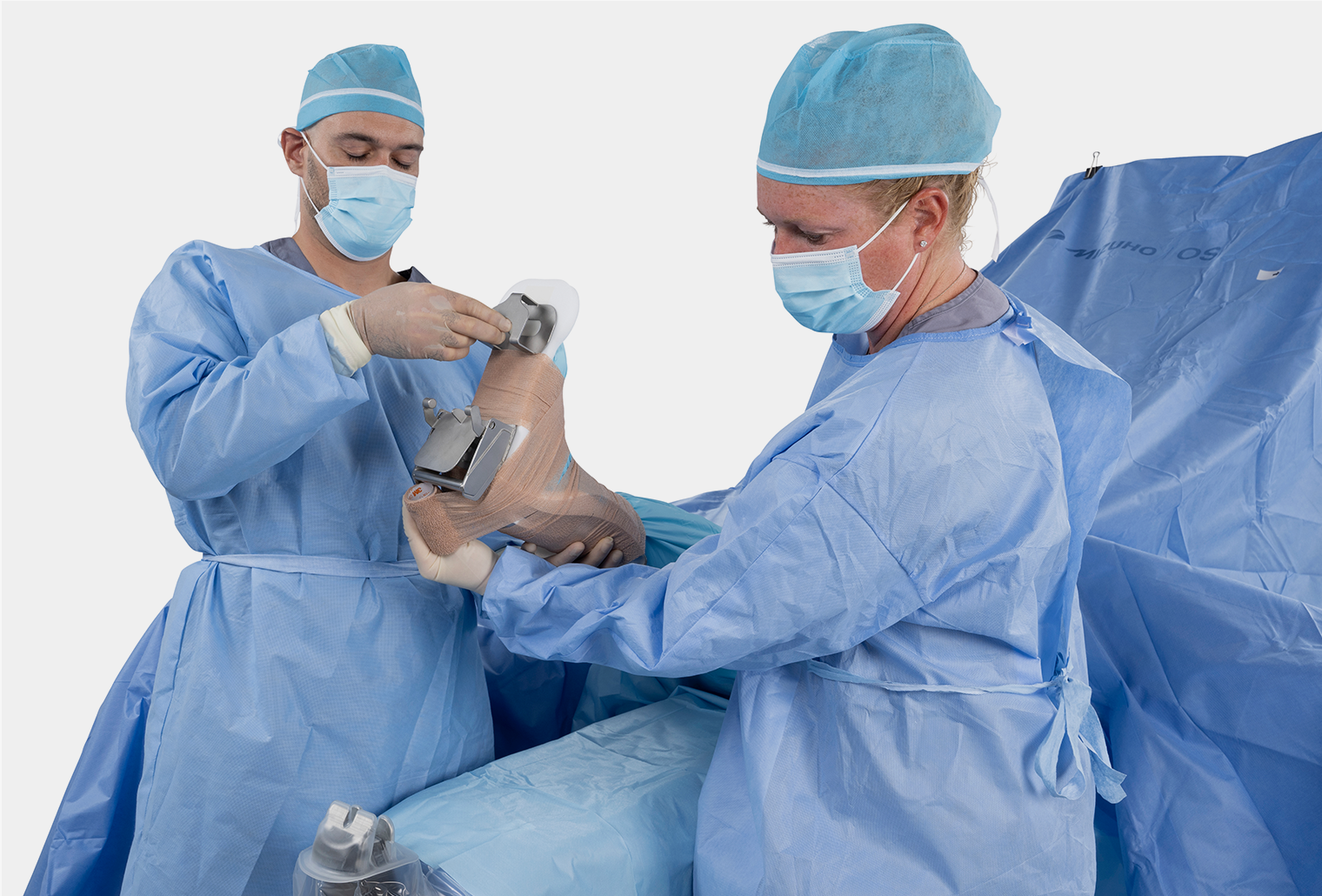

Insert the Adante Knee Mount into the Mizuho Accessory Interface located at the end of the operative spar and turnthe lock handle clockwise to lock into place.

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Knee Mount

Standard Component Installation and Adjustment

6/9

Knee Procedure Setup

Hook the Adante Body Safety Strap to the attachment loop on one side of the platform.

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Body Safety Strap

Standard Component Installation and Adjustment

7/9

Knee Procedure Setup

Install components per figure shown.

Leg Strap
Body/Safety Strap
Supine/Lateral Head Rest
Arm Strap
Spar Elbow/Knee Cover
Spar Shoulder Cover
Adjustable Arm Board Pad

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Adante Knee Protection Kit

Standard Component Installation and Adjustment

8/9

Secure the patient with the Adante Body Safety Strap.

Prior to procedure set up, refer to the Standard Component Installation and Adjustment section and complete the required steps.

Secure Patient

Standard Component Installation and Adjustment
