Adante Hip Standard Component Installation

1/9

Standard Component Installation

Head-End of Platform
Foot-End of Platform
Adante FlexLation Spar
Mizuho Accessory Interface for Future Use
Mizuho Accessory Interface for Femur Lift attachment
Mizuho Accessory Interface for Adante Traction Mount
1. and Adante Knee Mount attachment
Spar Control Interface Location
Adante IntelliTouch Hand Pendant

Component Identification

2/9

Standard Component Installation

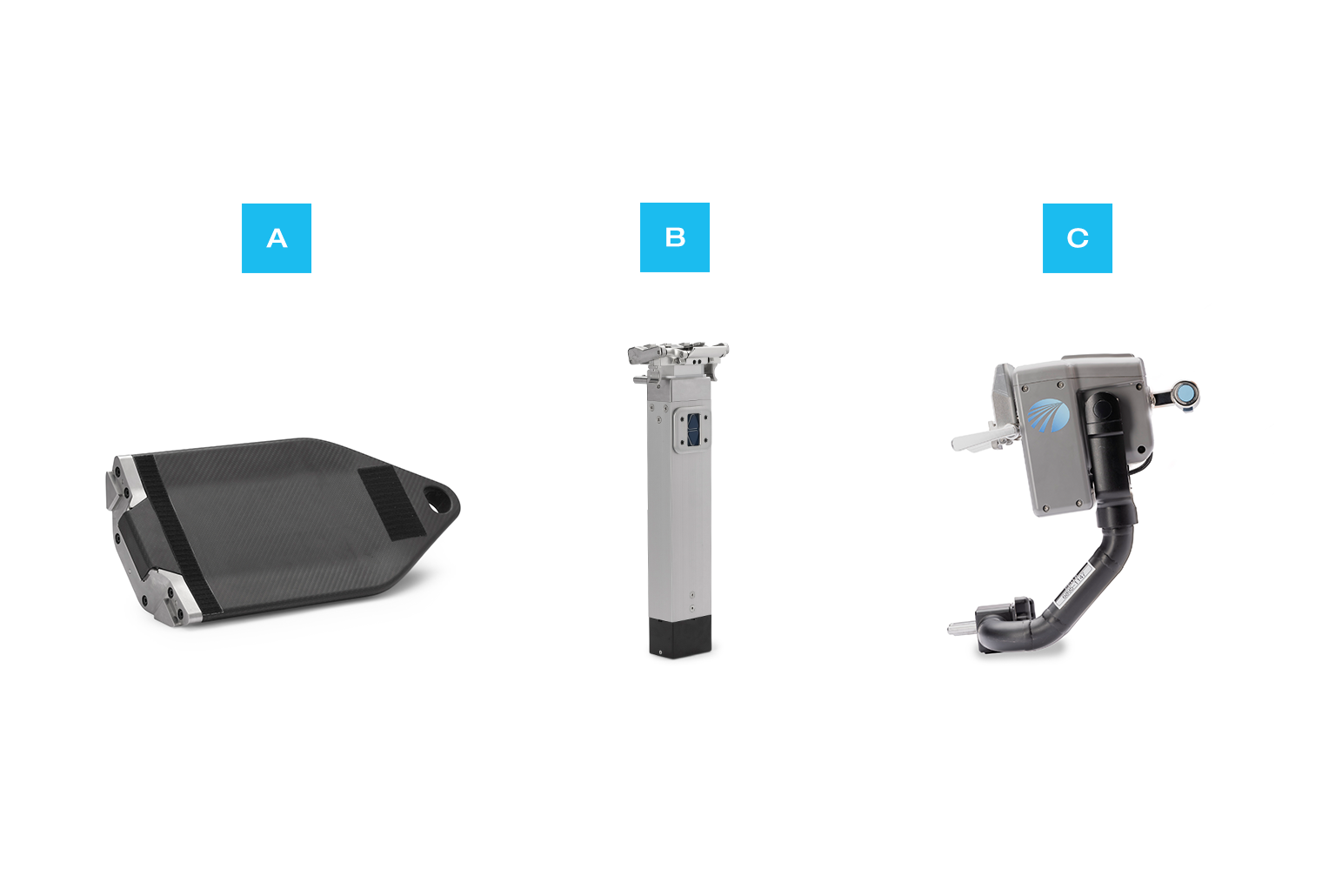

Pelvic Center Board
Femur Lift

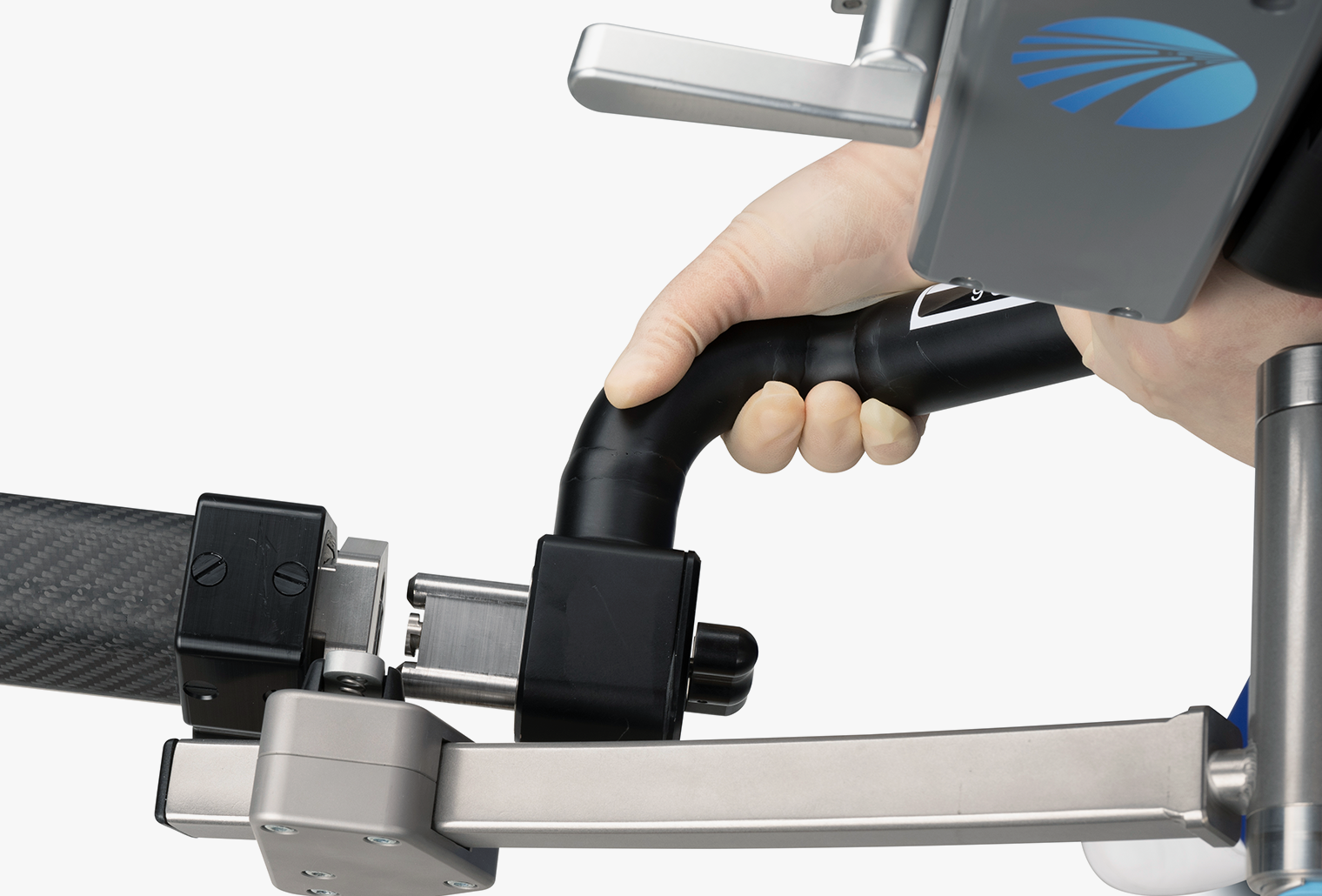

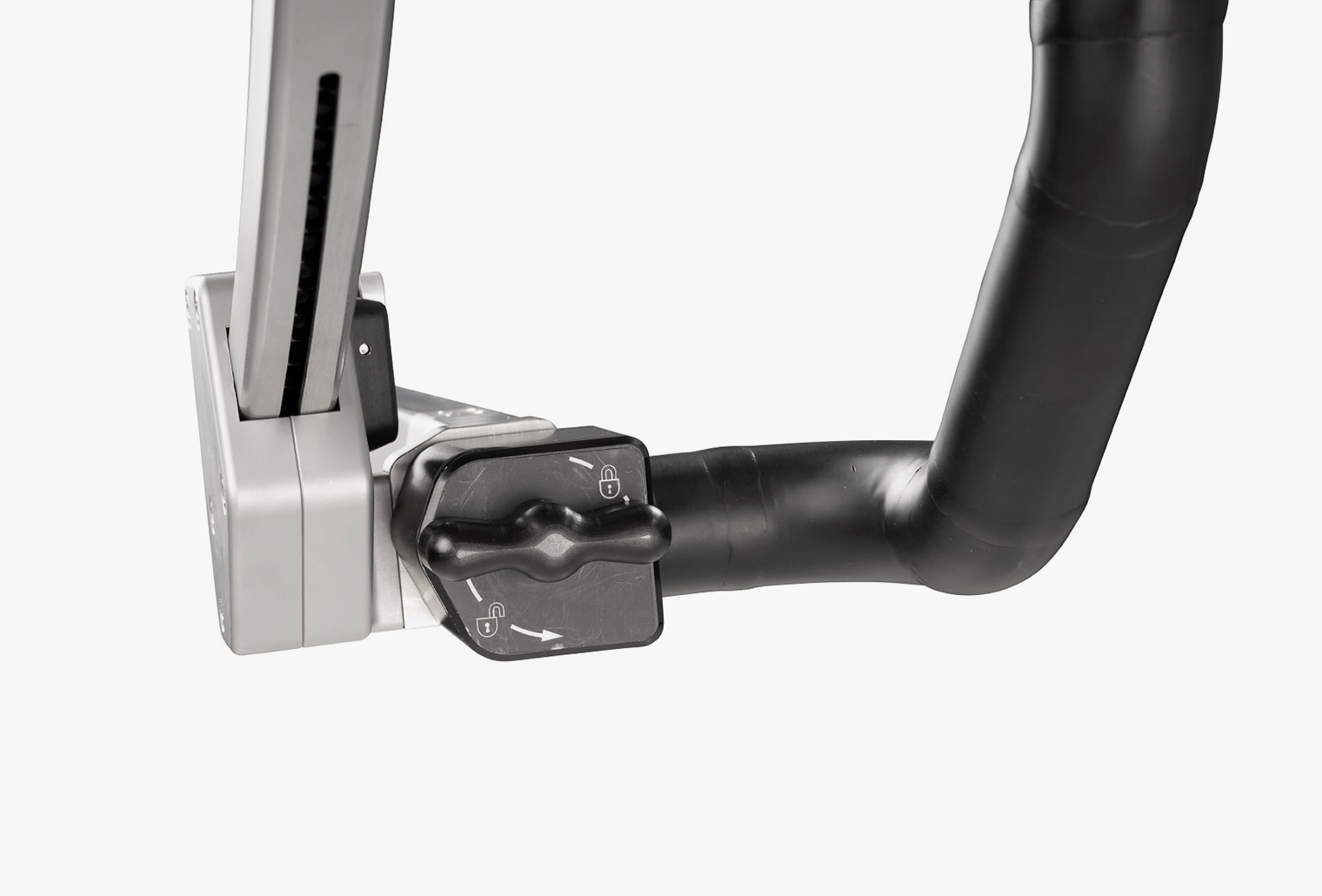

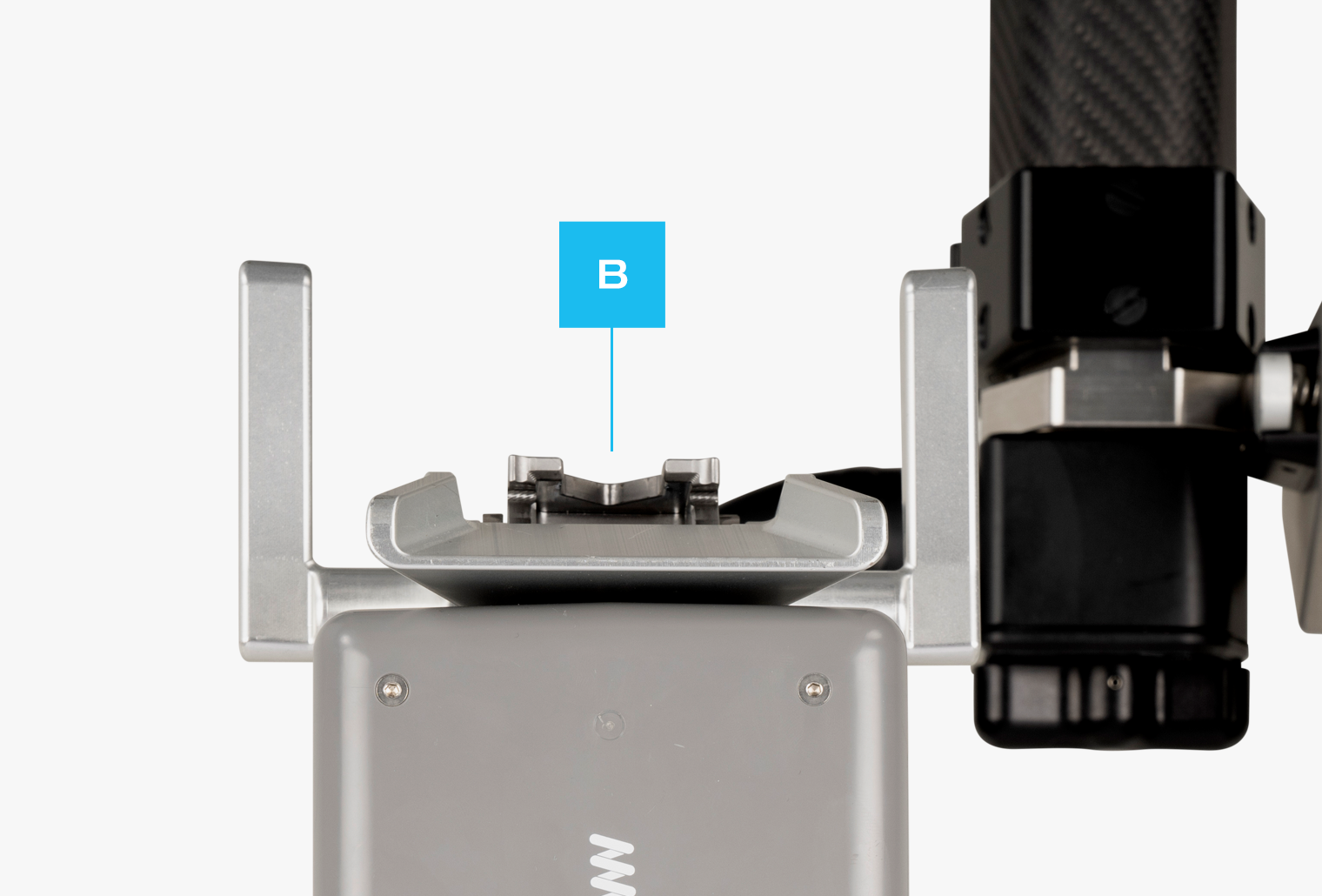

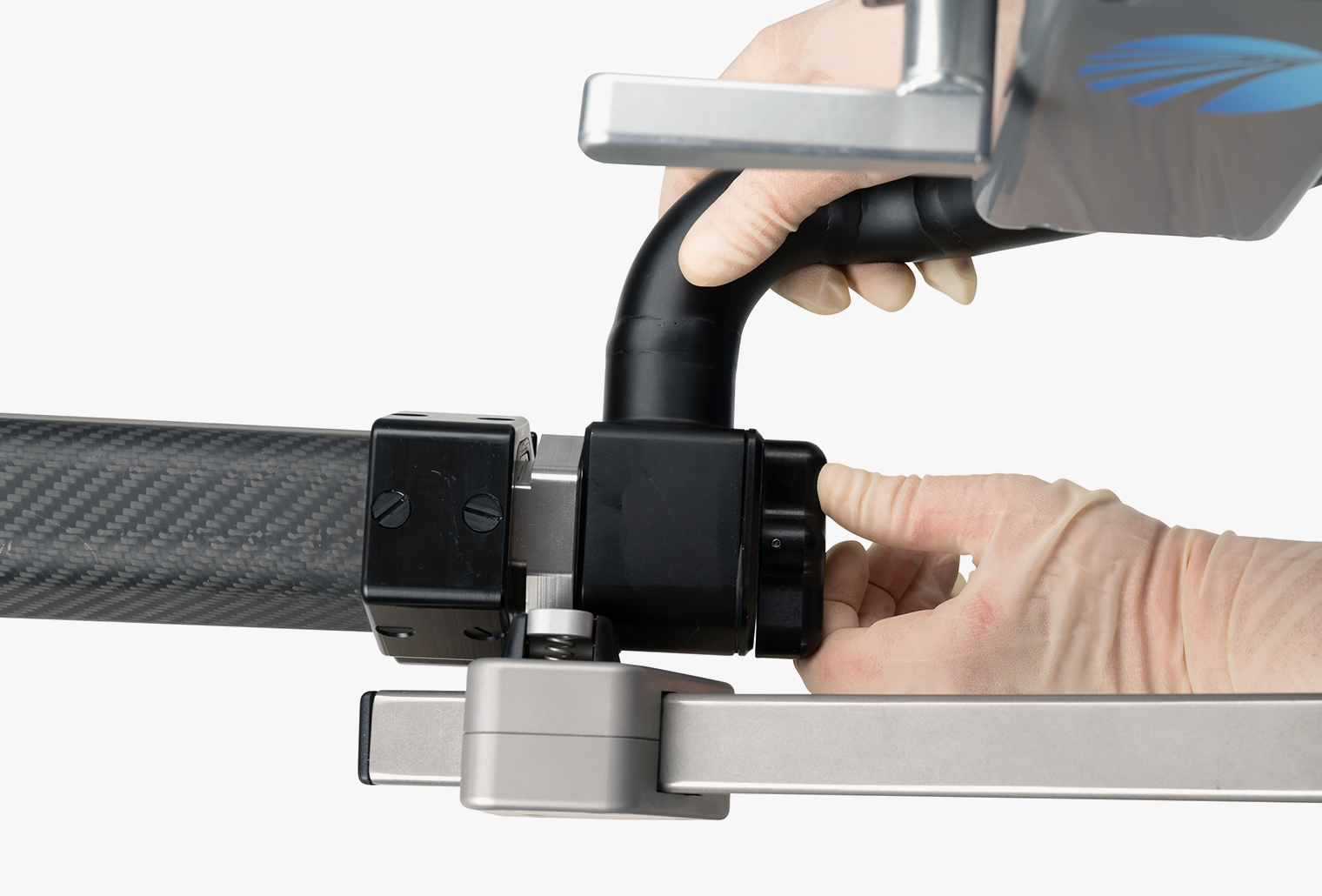

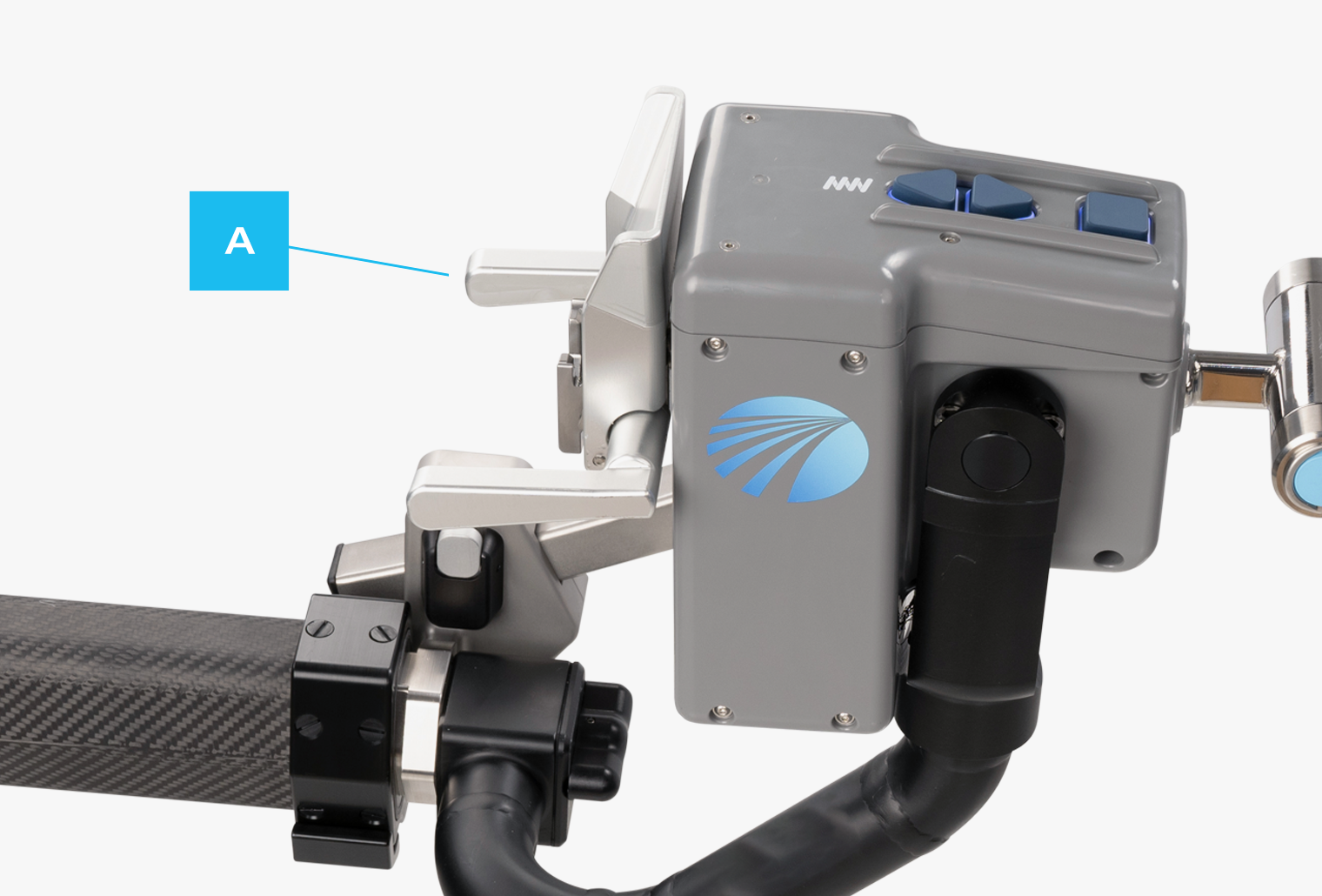

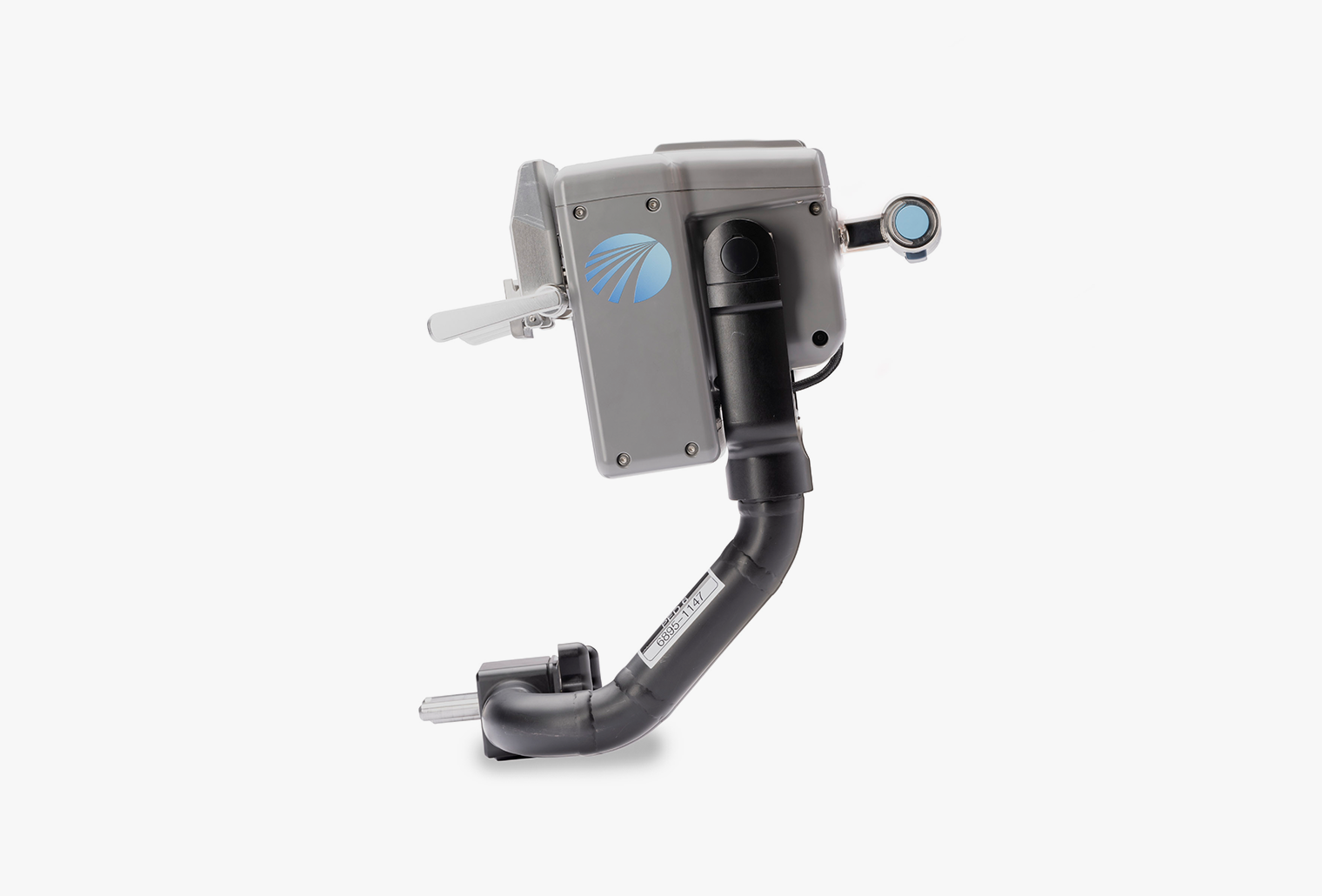

Adante Traction Mount

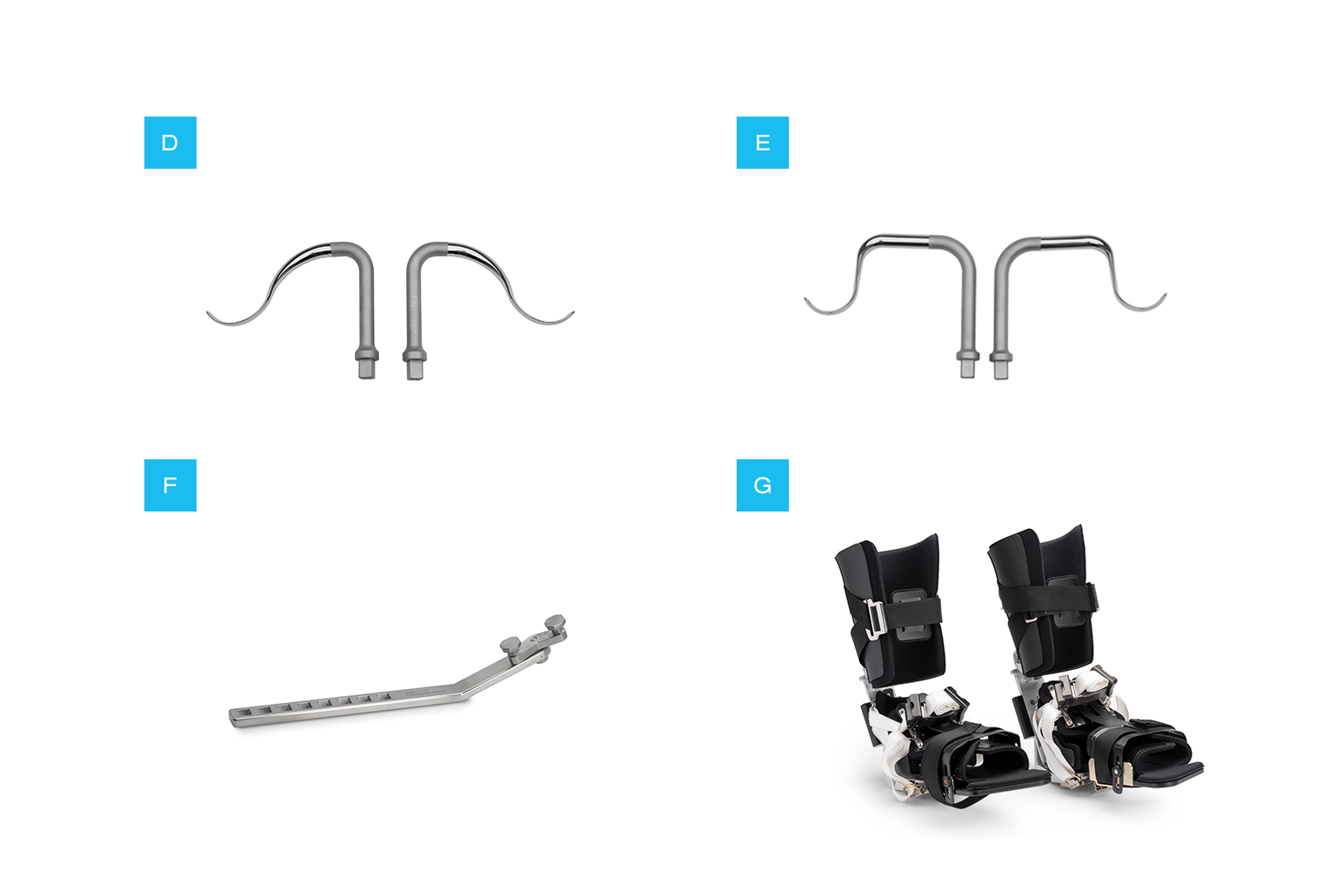

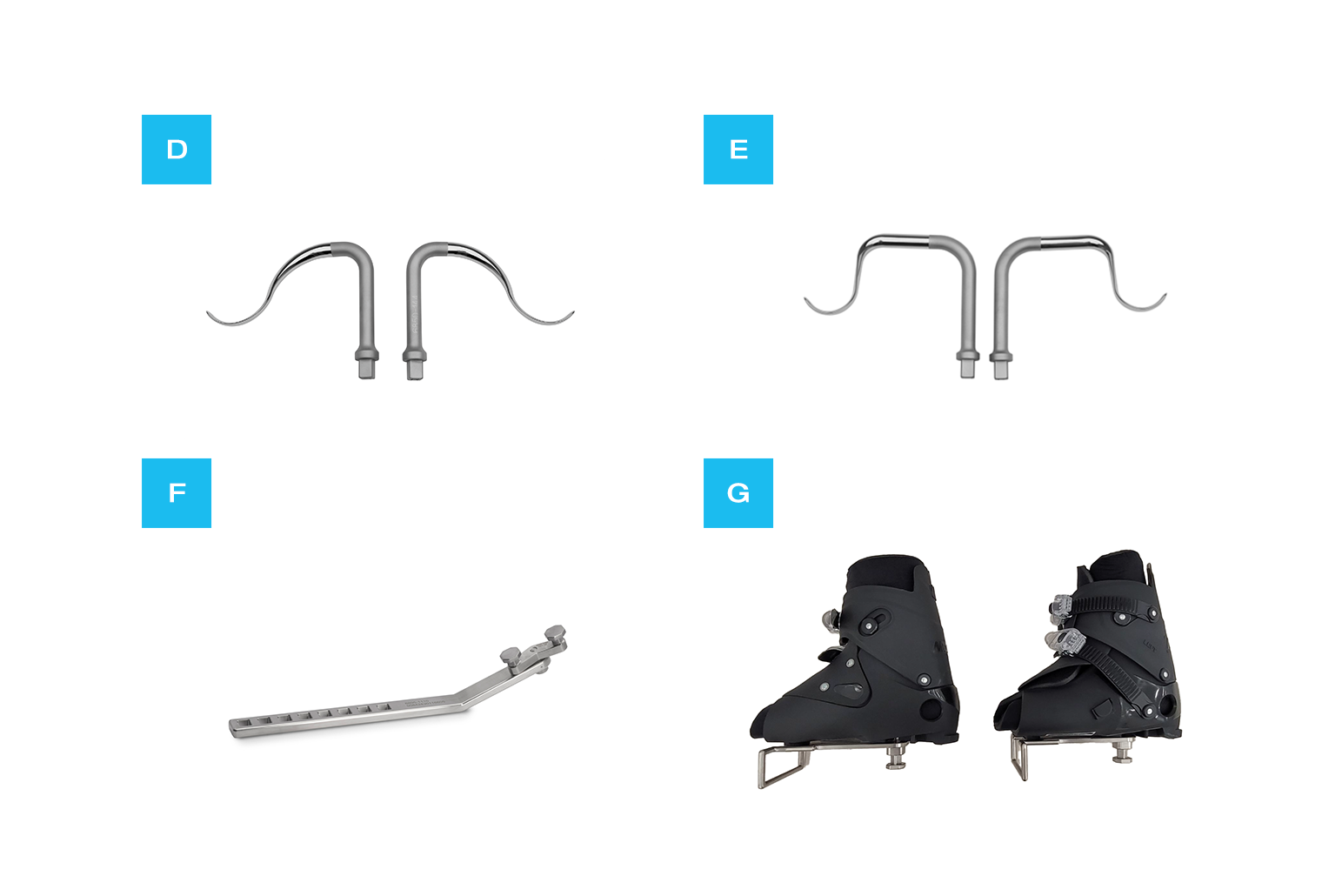

Femoral Hooks
Classic Femoral Hooks
Adante Femoral Hook Bracket

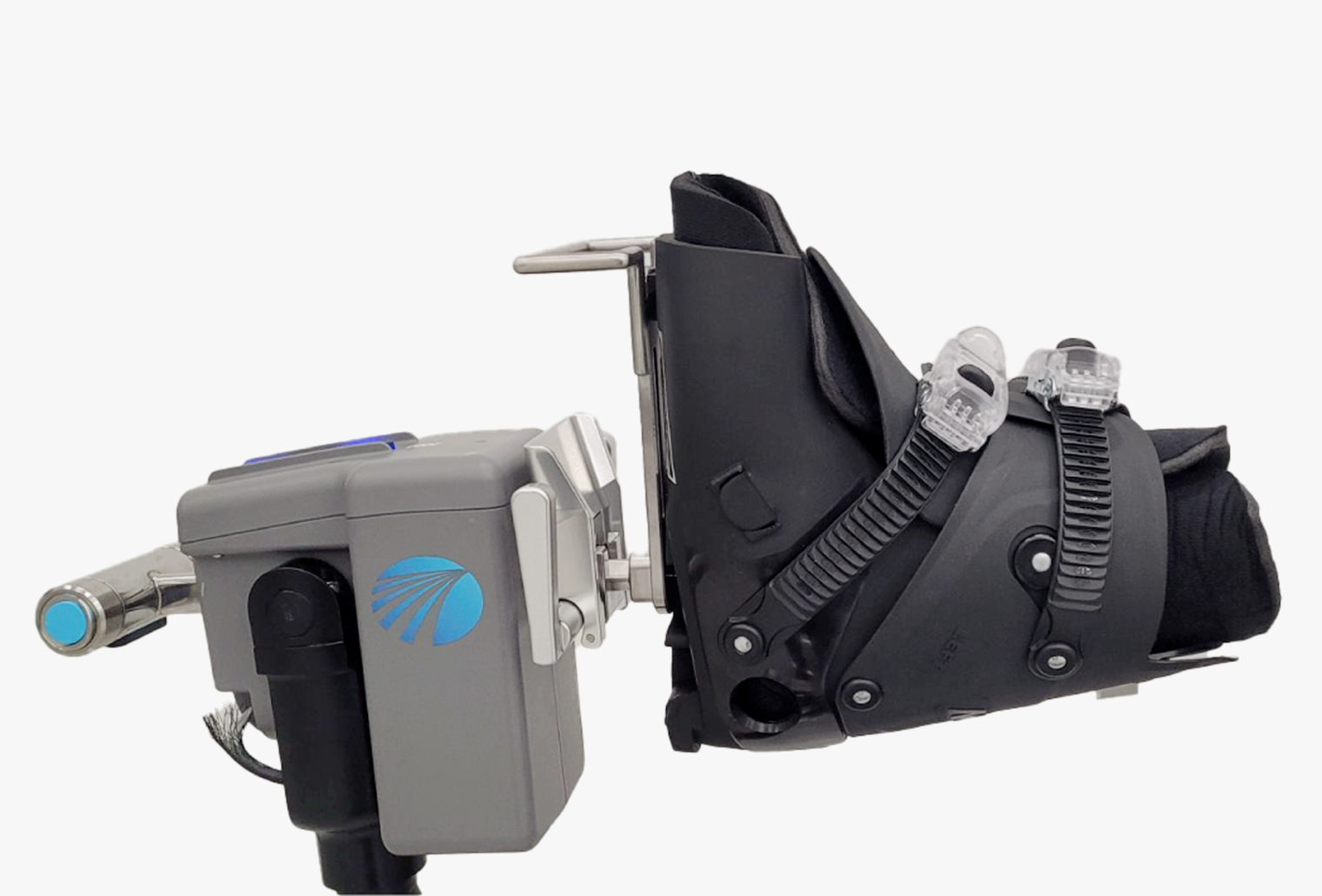

Traction Sandals

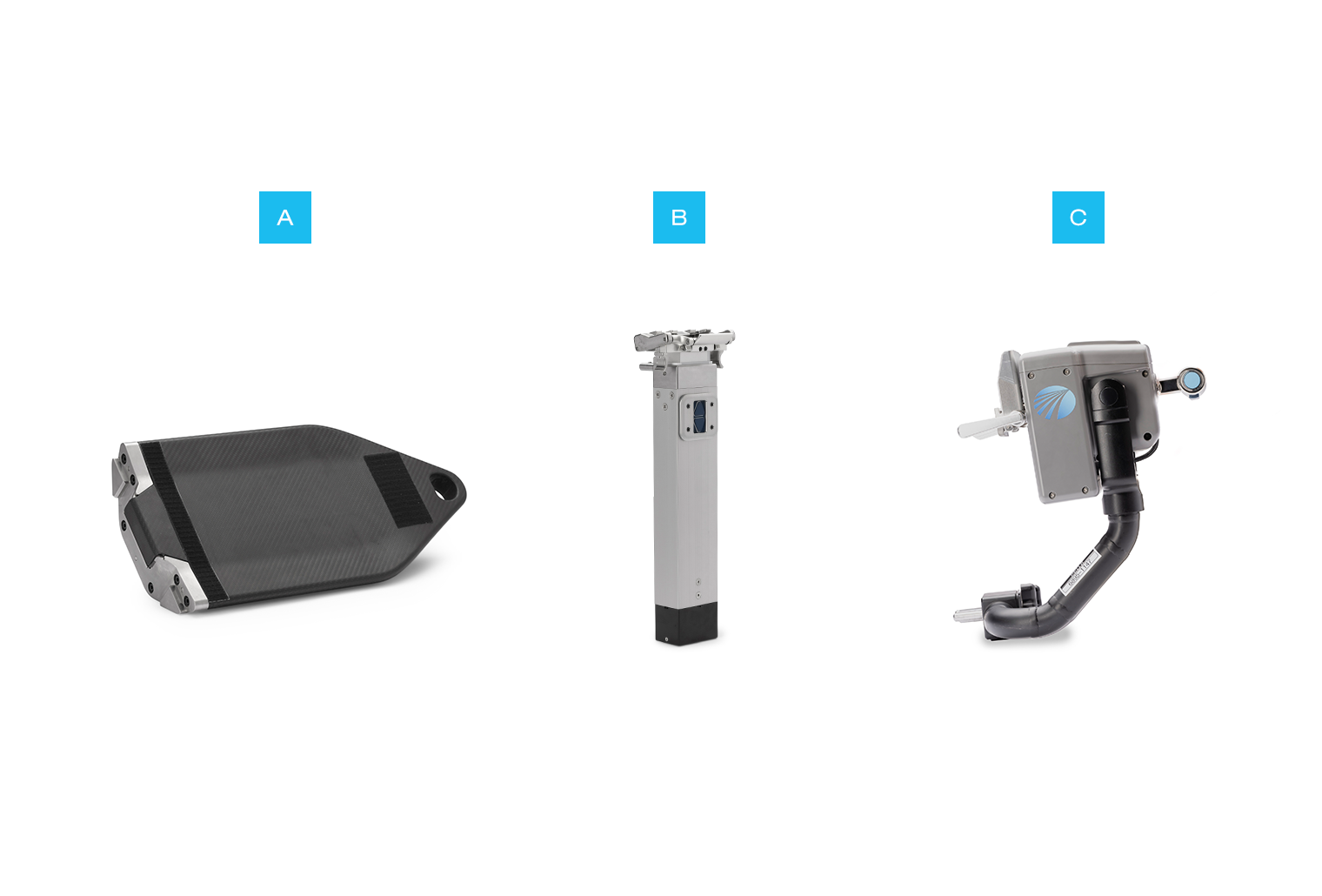

Hip Components

3/9

Standard Component Installation

Adante Superior Trunk Pad
Adante Supine Trunk Pad
Adante Pelvic Center Pad
Adante Saddle Post
Adante Pelvic Center Postless Pad
Adante Pelvic Center Pad

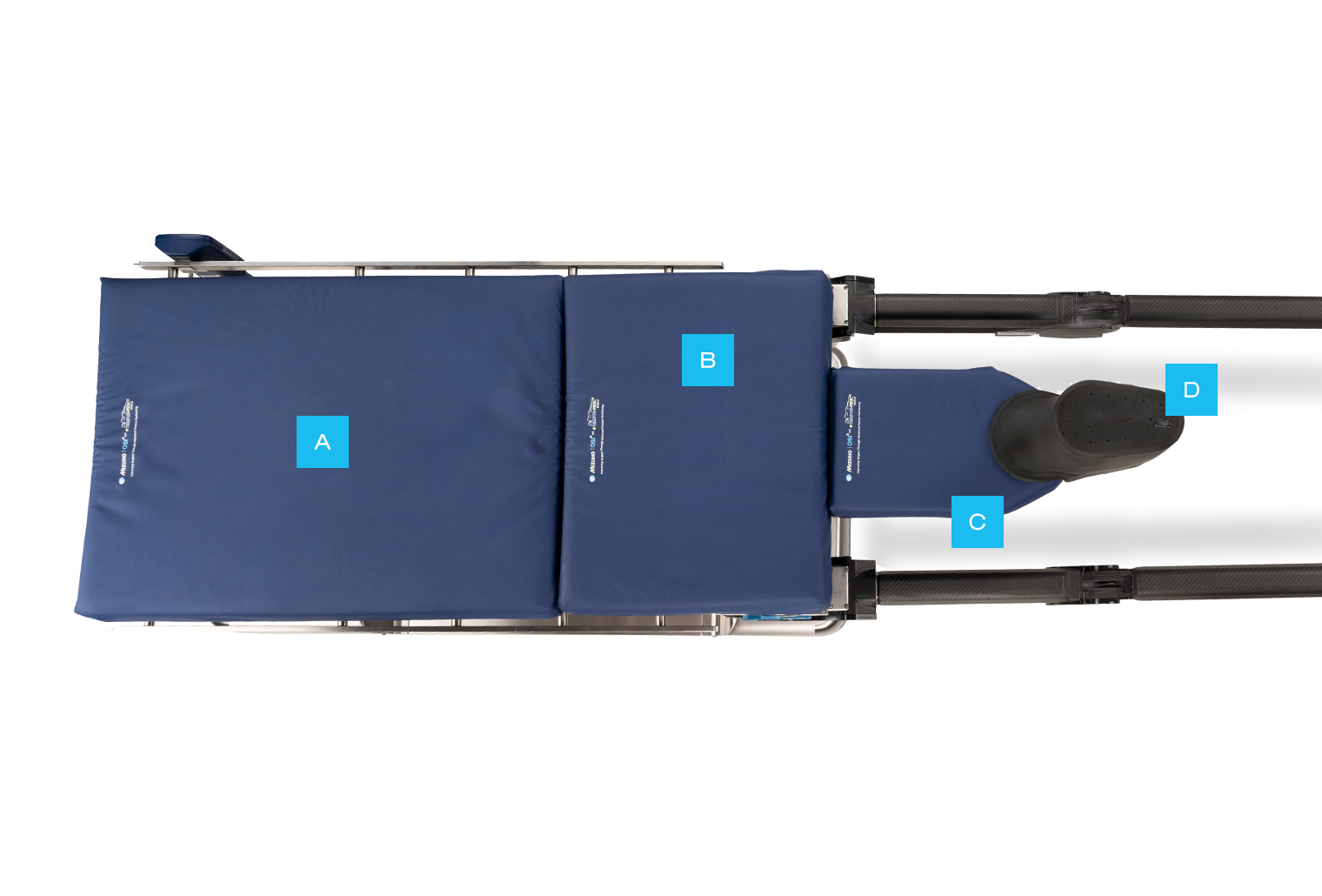

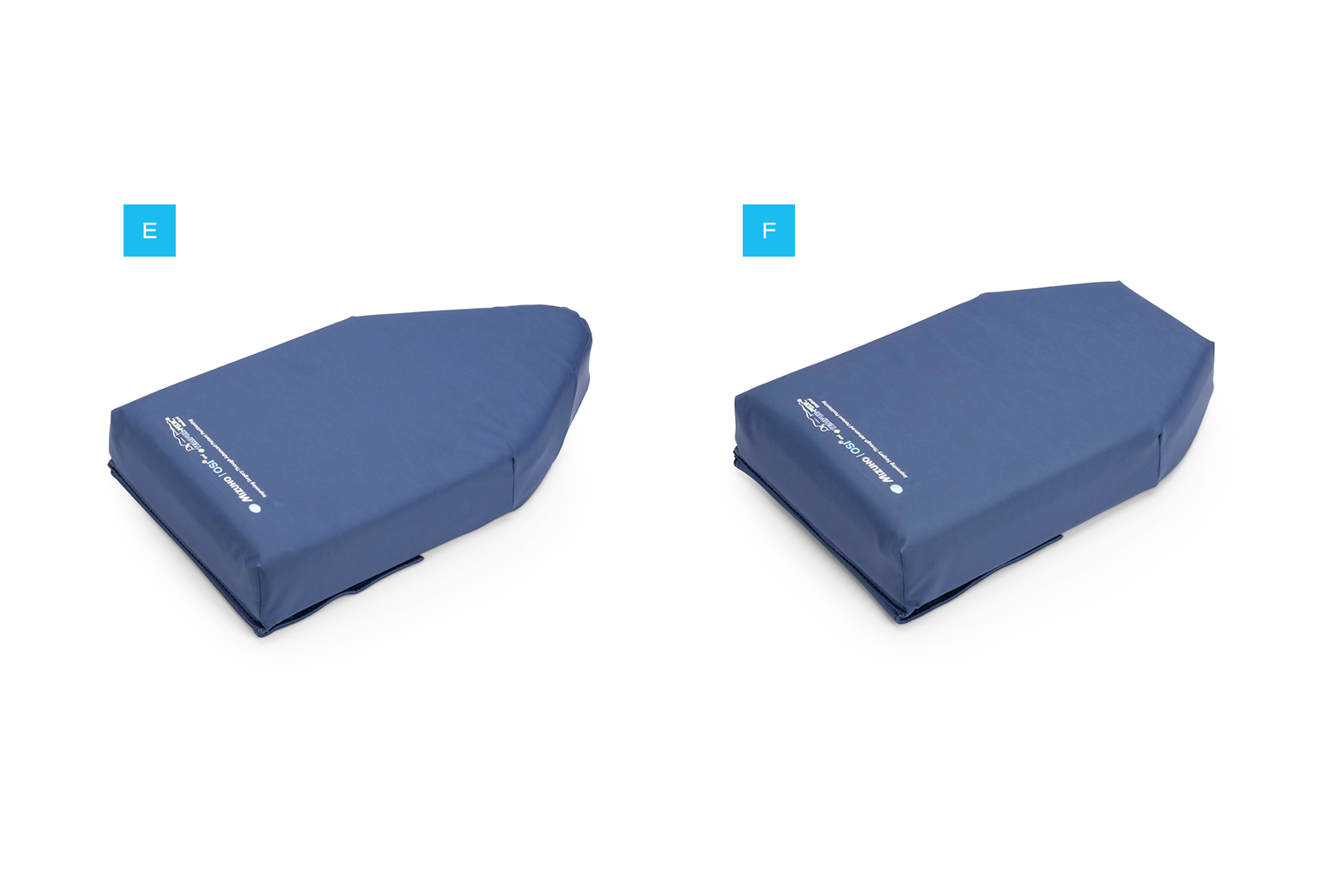

Tempur-Pedic Pads for Hip Procedures

4/9

Standard Component Installation

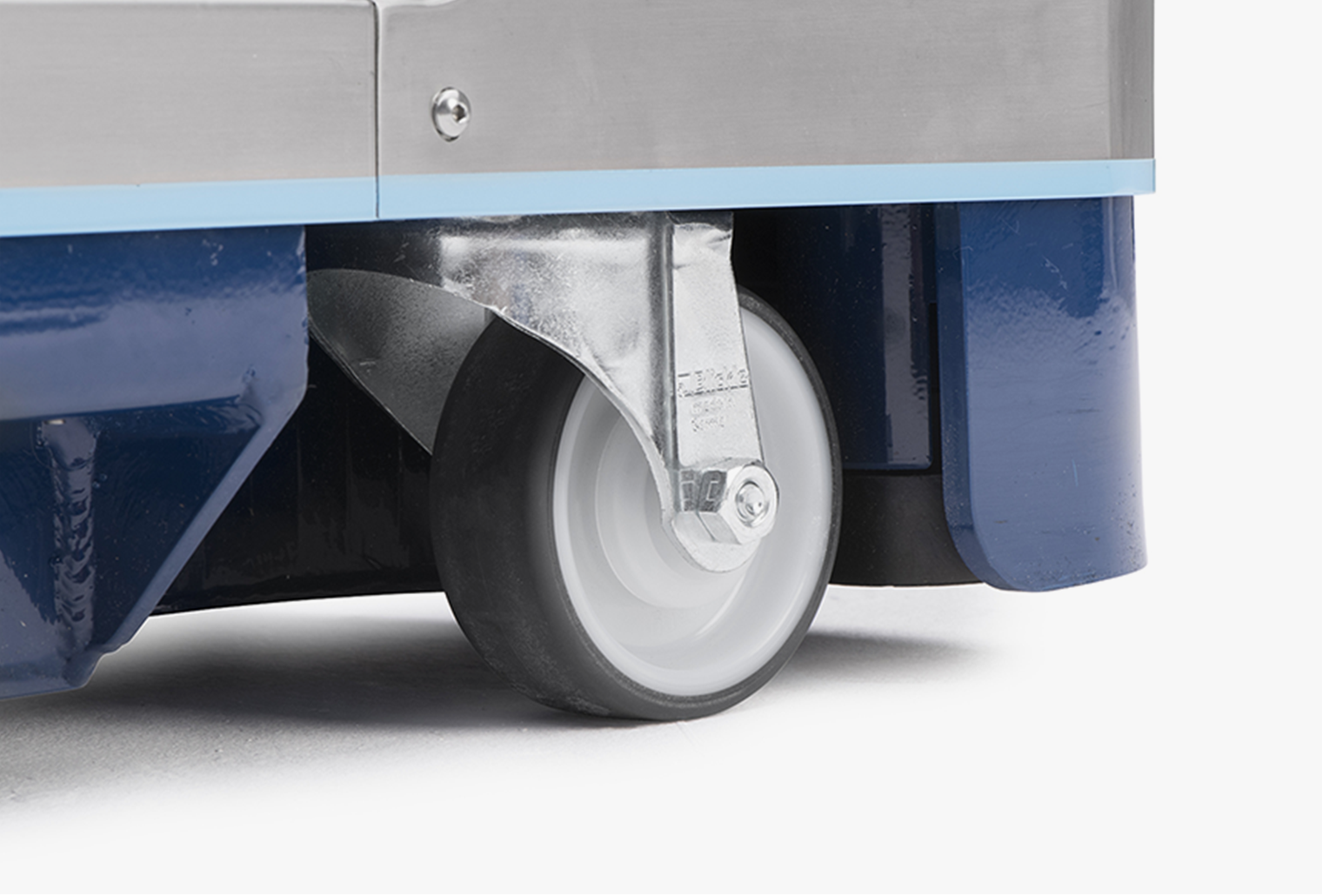

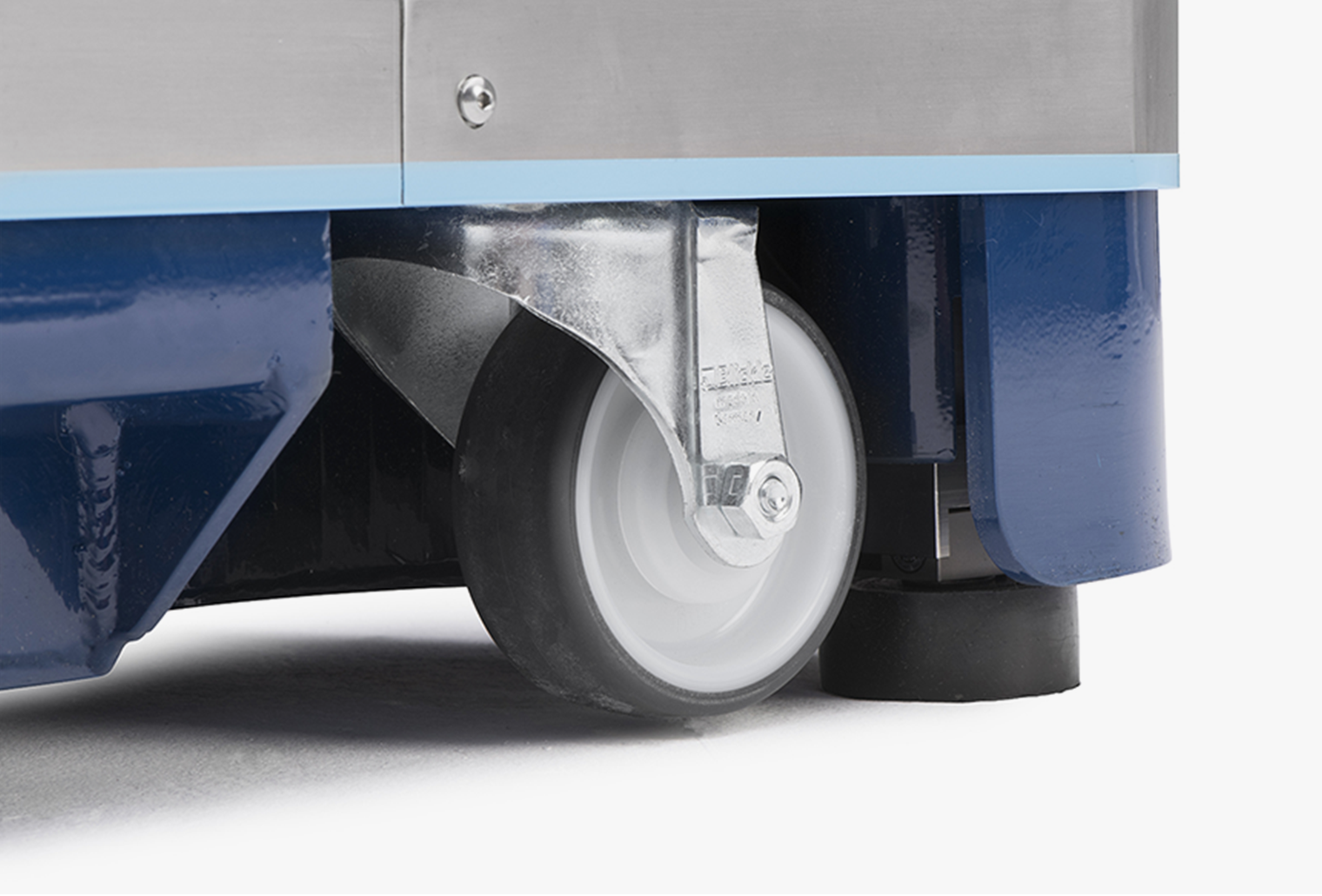

The Floor Locks may be engaged using the Adante Hand Pendant or the Auxiliary Control Panel. On the Hand Pendant, a message confirms when the platform is locked.

On the Auxiliary Control Panel, the Floor Lock LED will illuminate once fully engaged.

Engaging the Floor Locks

5/9

Standard Component Installation

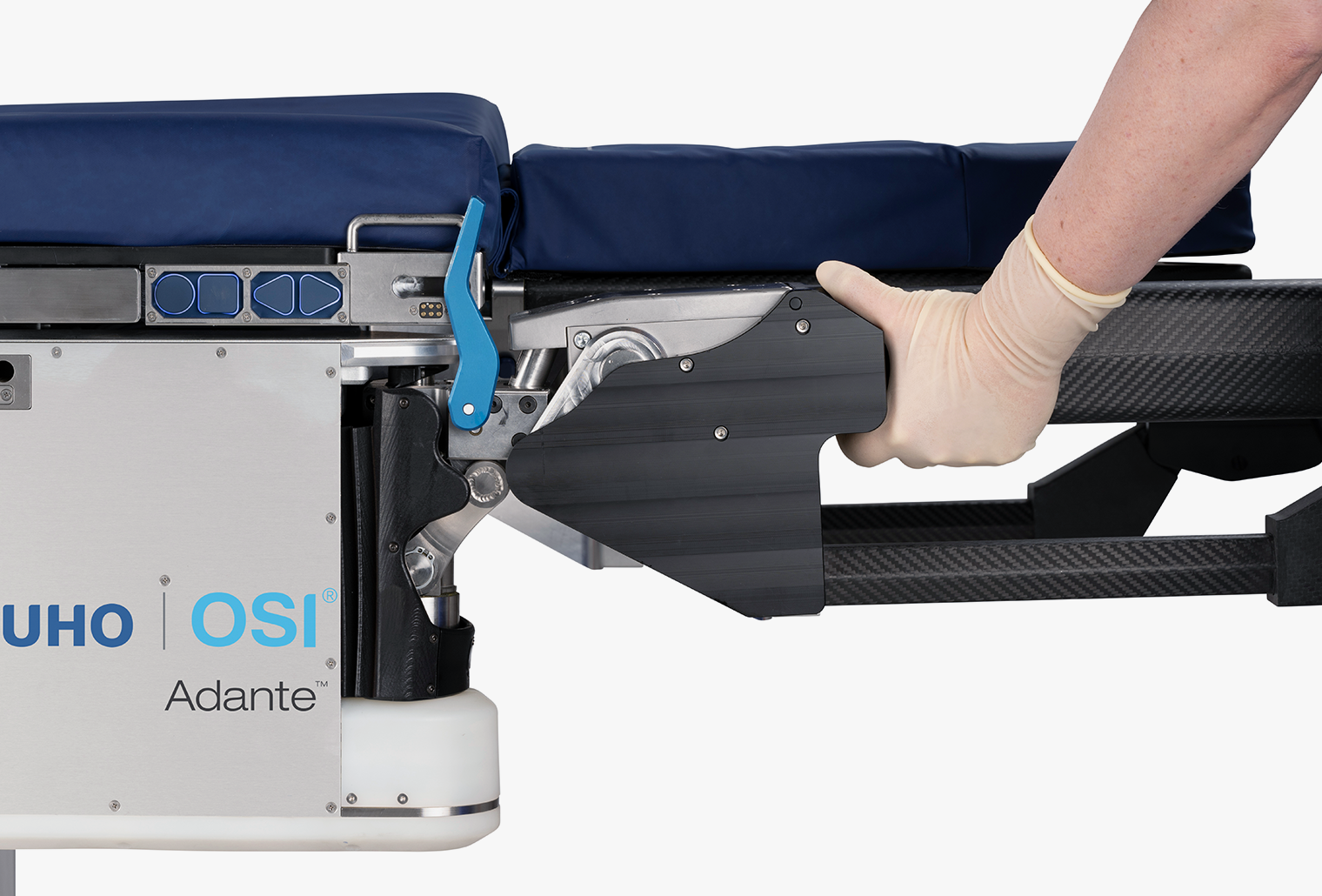

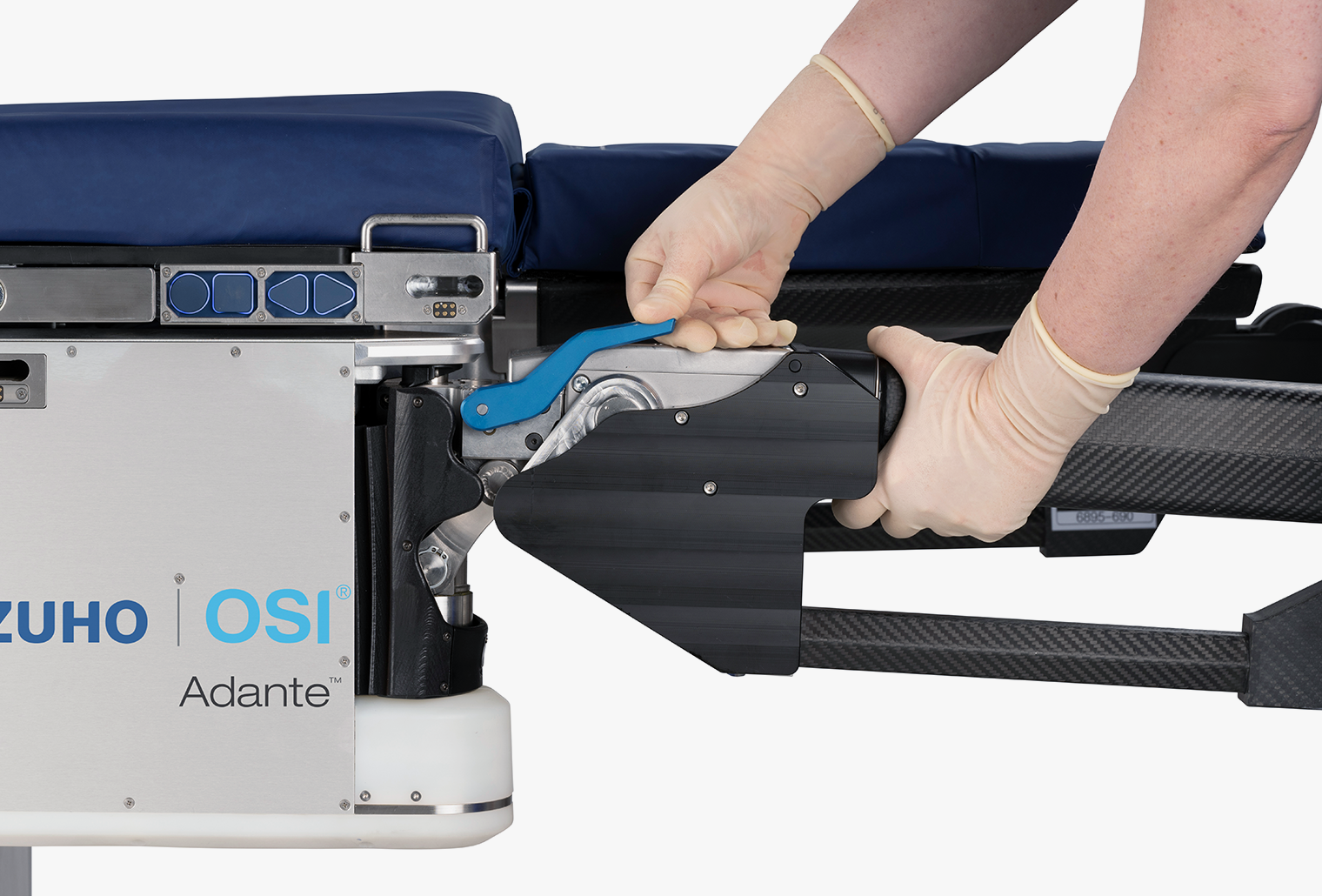

Ensure the Spar Safety Tab on the FlexLation Spar is oriented upward. Hold the spar securely at both ends. Align the connector plug with the Spar Receiver socket. Insert the proximal end fully into the receiver until engaged. Close the Spar Safety Last to lock the spar in place.

Confirm the spar is locked before proceeding.

Installing the Leg Spars

6/9

Standard Component Installation

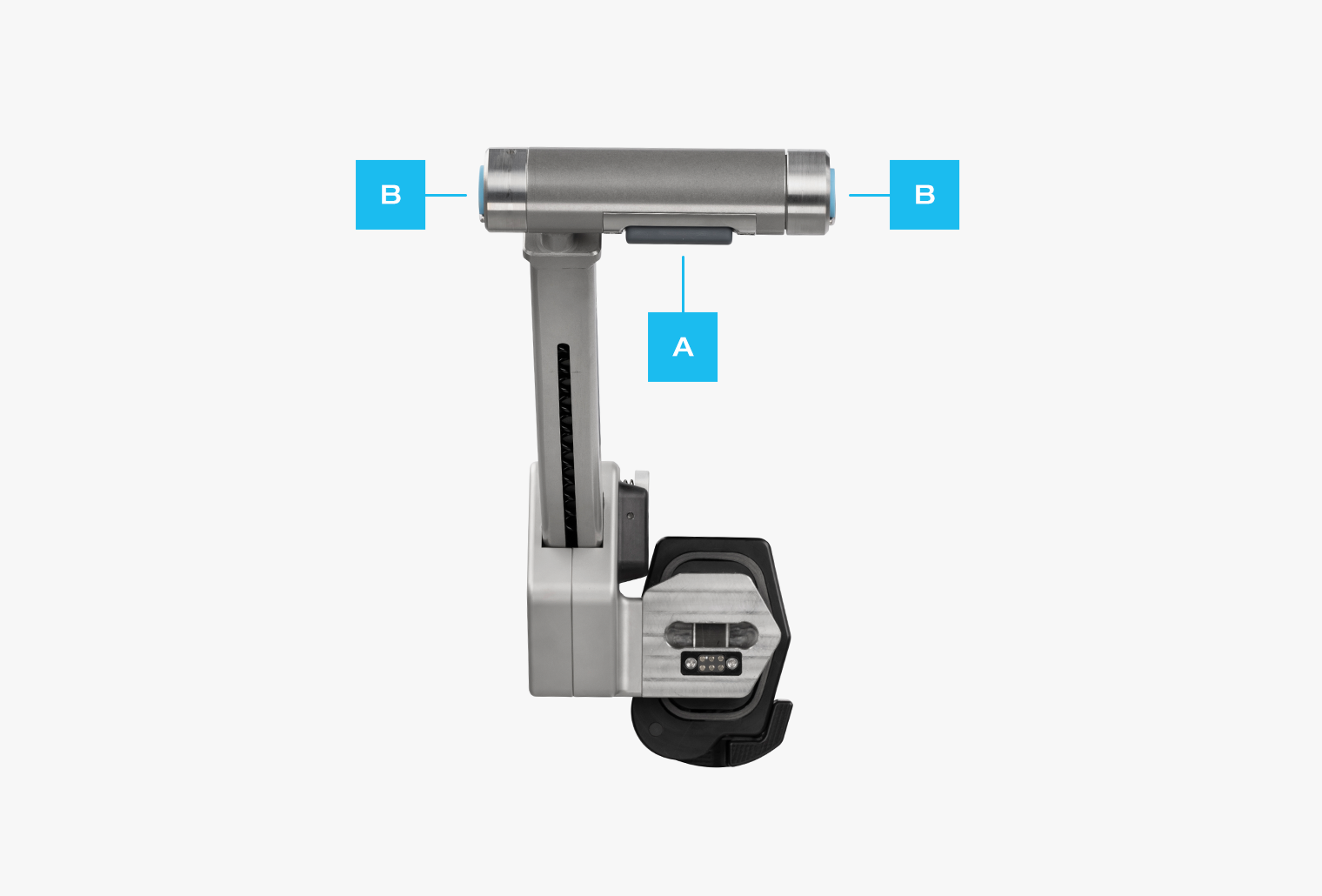

Press the bottom button only to activate:

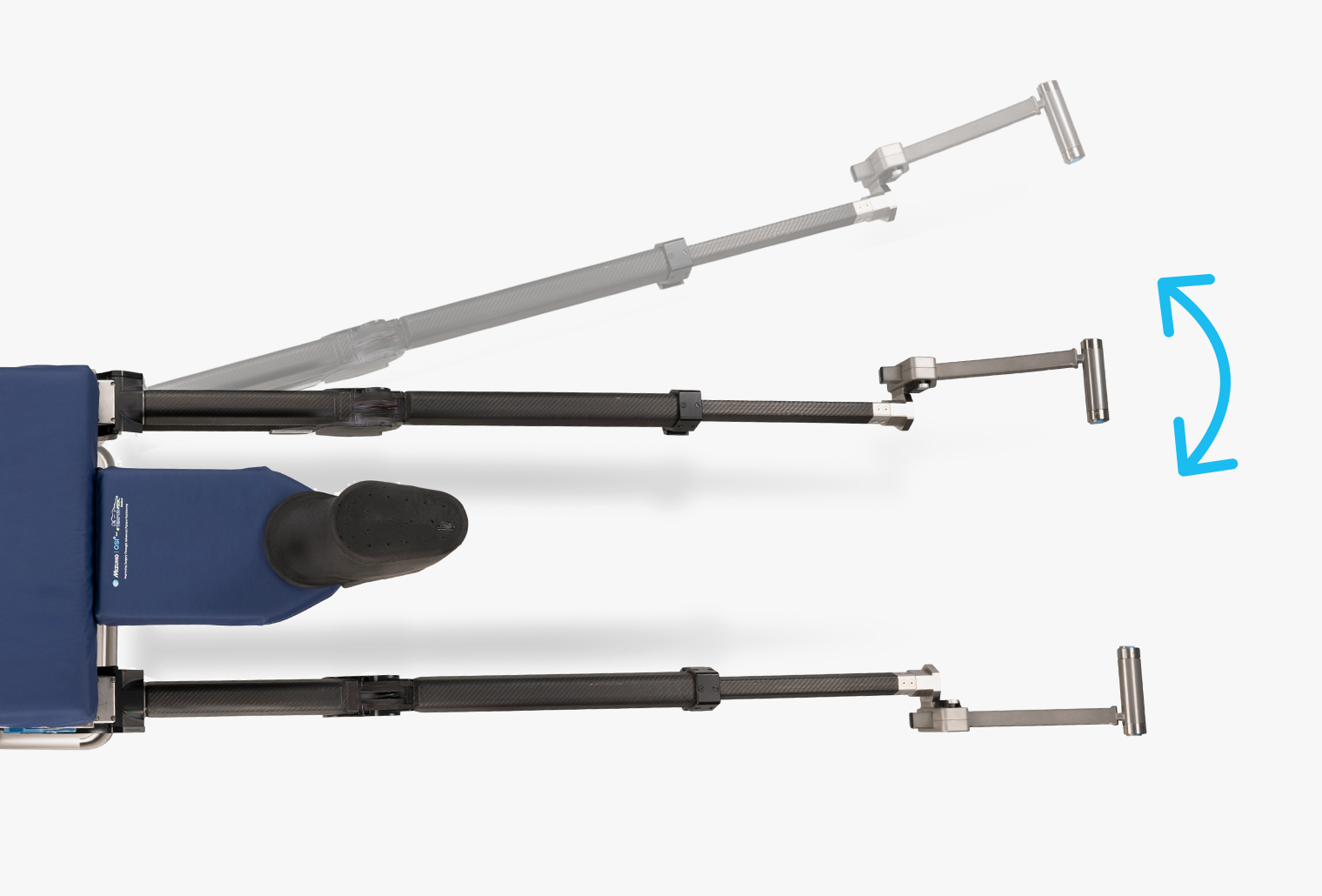

- - Abduction/Adduction

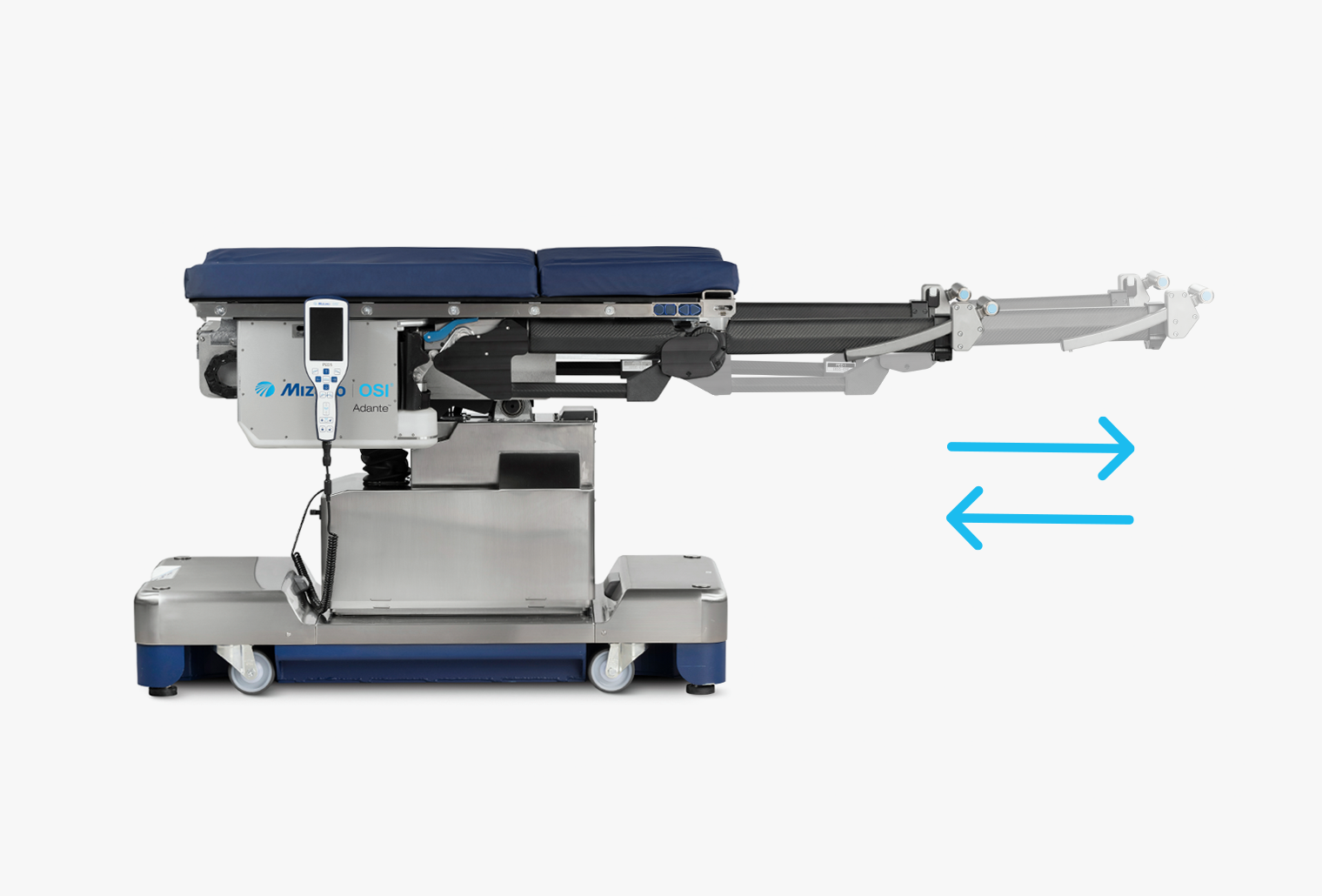

- - Translation
Press the bottom button + a side button to activate:
- - Raising/Lowering the leg (hip flex/ext)
- - Abduction/Adduction

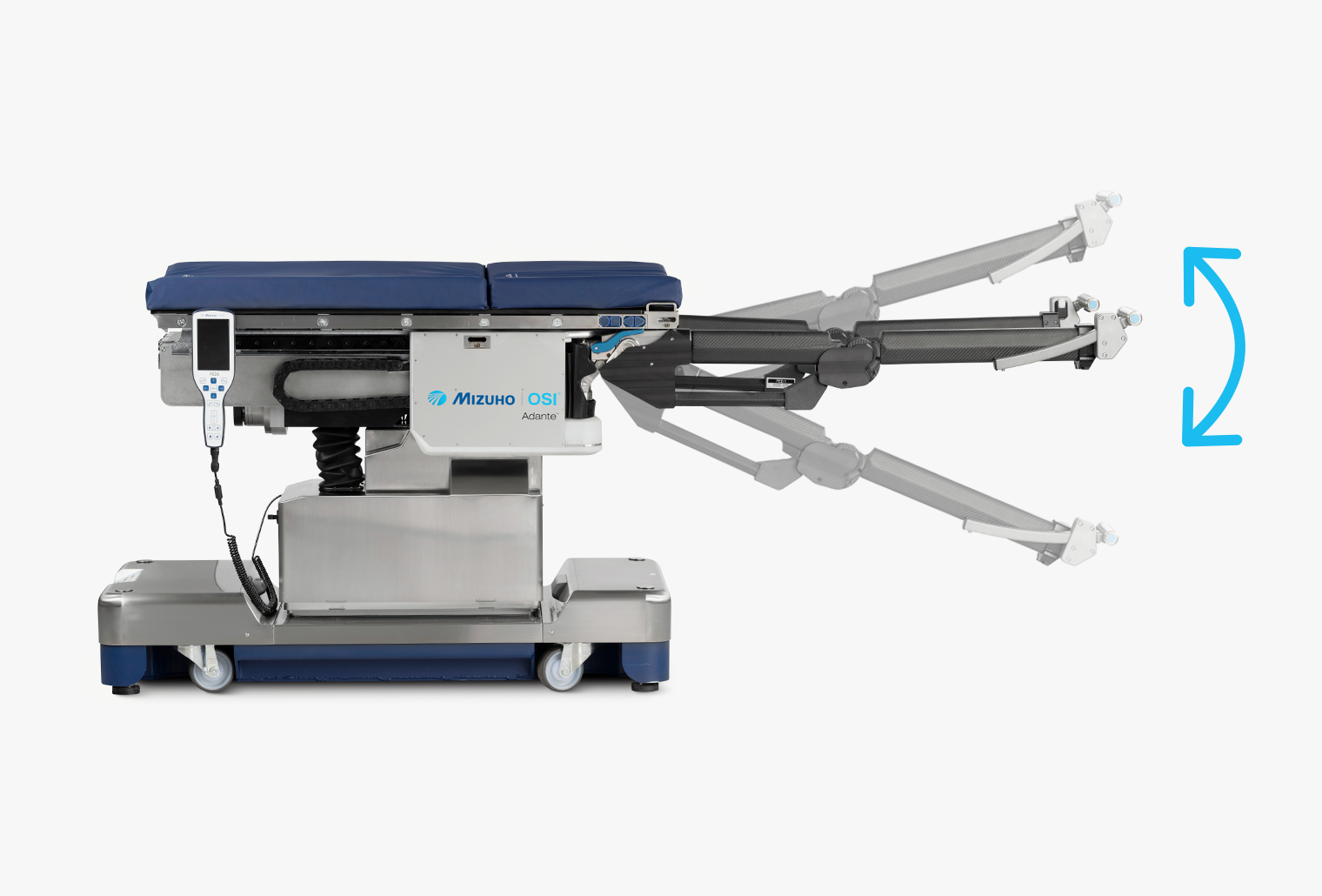

- - Flexion/Extension (hinge)
- - Translation

Spars will self-center when buttons are released.

NOTE: Flexion/Extension will be disabled if a Traction Mount is installed on the spar.

To adjust the FlexLation Spars (when nothing is attached or when a Knee Mount is installed):

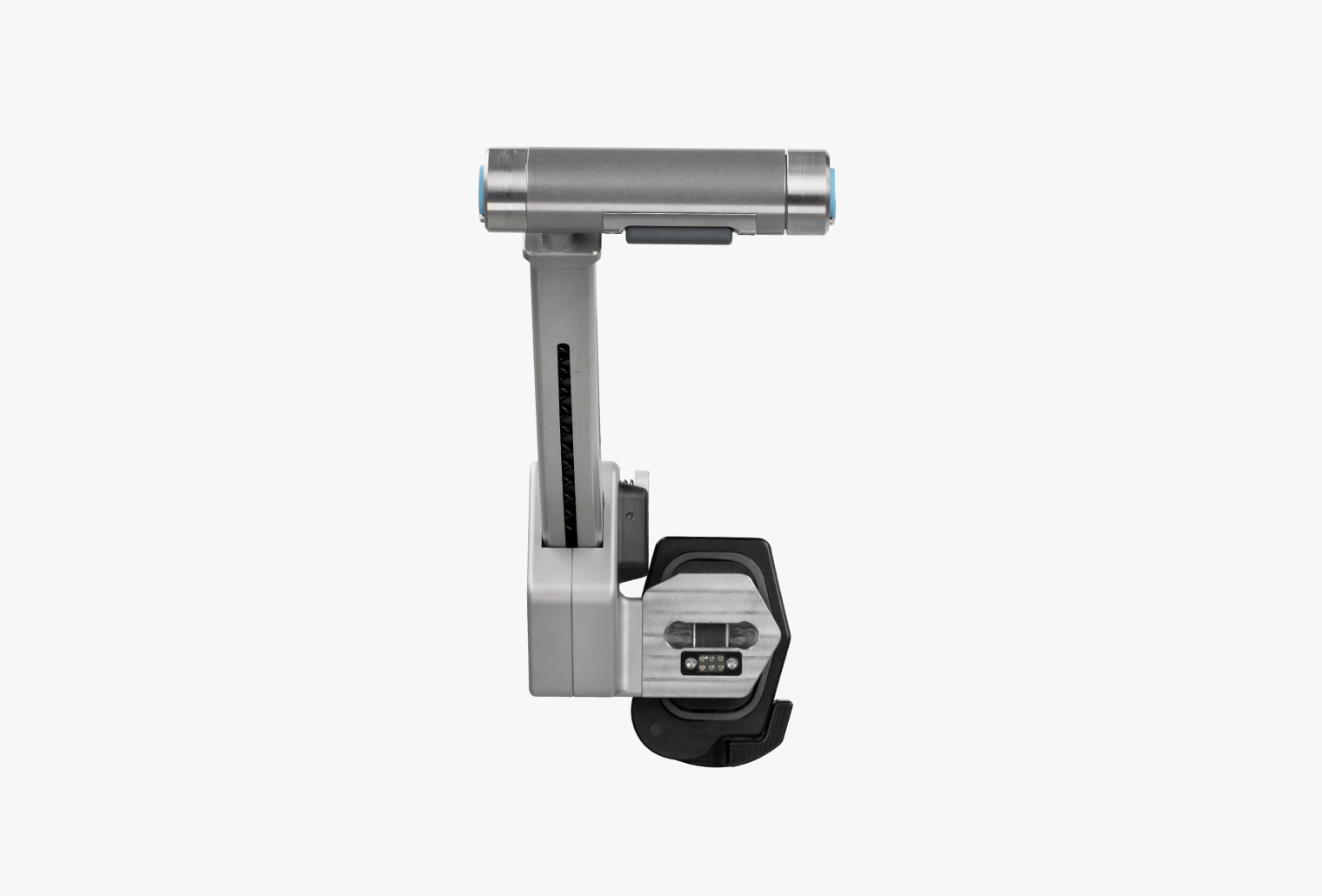

Adjusting the Leg Spars

7/9

Standard Component Installation

Rotate the drop handle at the distal end of the Swing bar counterclockwise to unlock, and move Swing Bar out from under the table top. Insert the post of the Adante Arm Board into the slot on the Holding Clamp.

Installing Arm Boards

Installing and Positioning the Patient Strap

8/9

Standard Component Installation

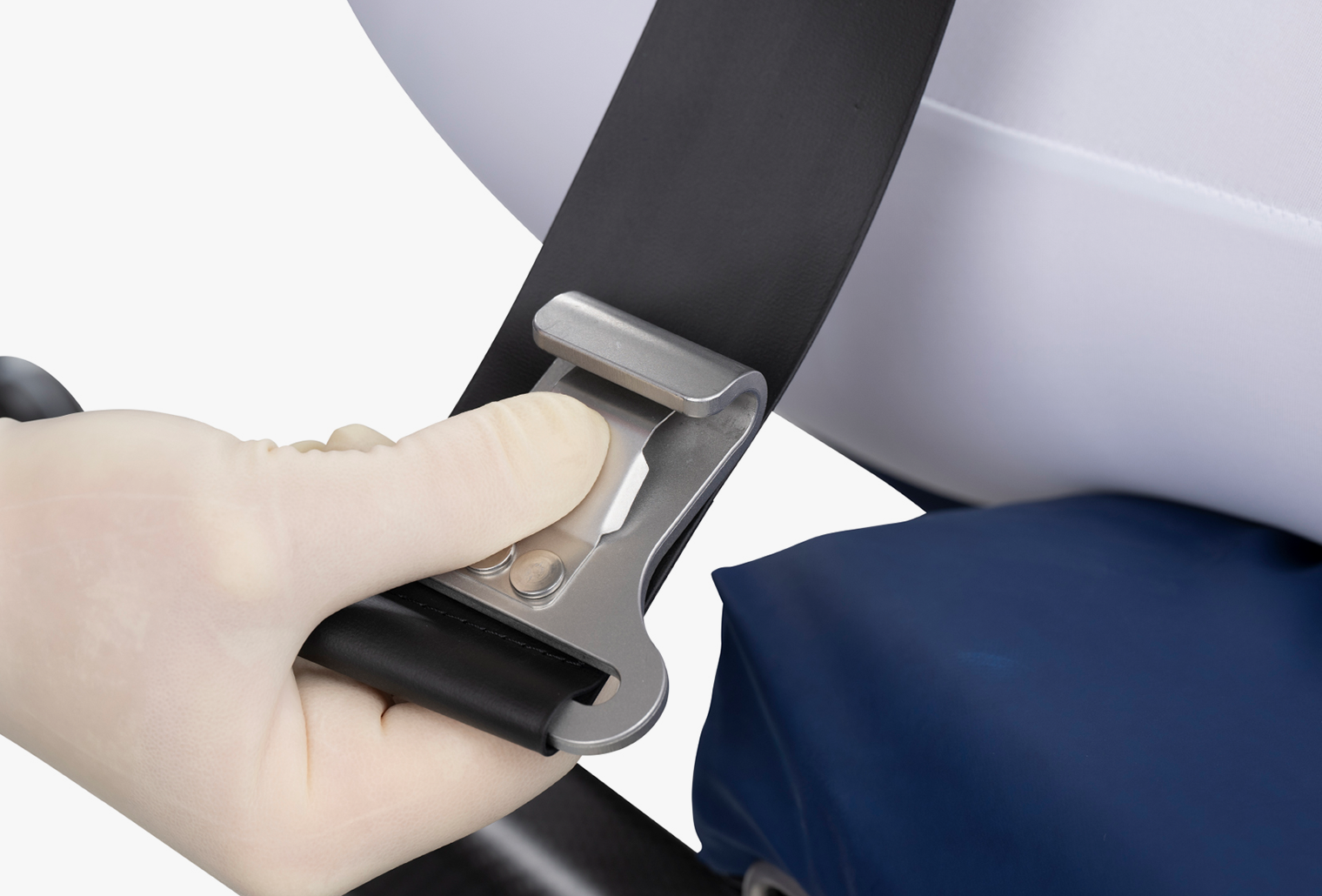

Adante_Installing_Positioning Patient Strap_1

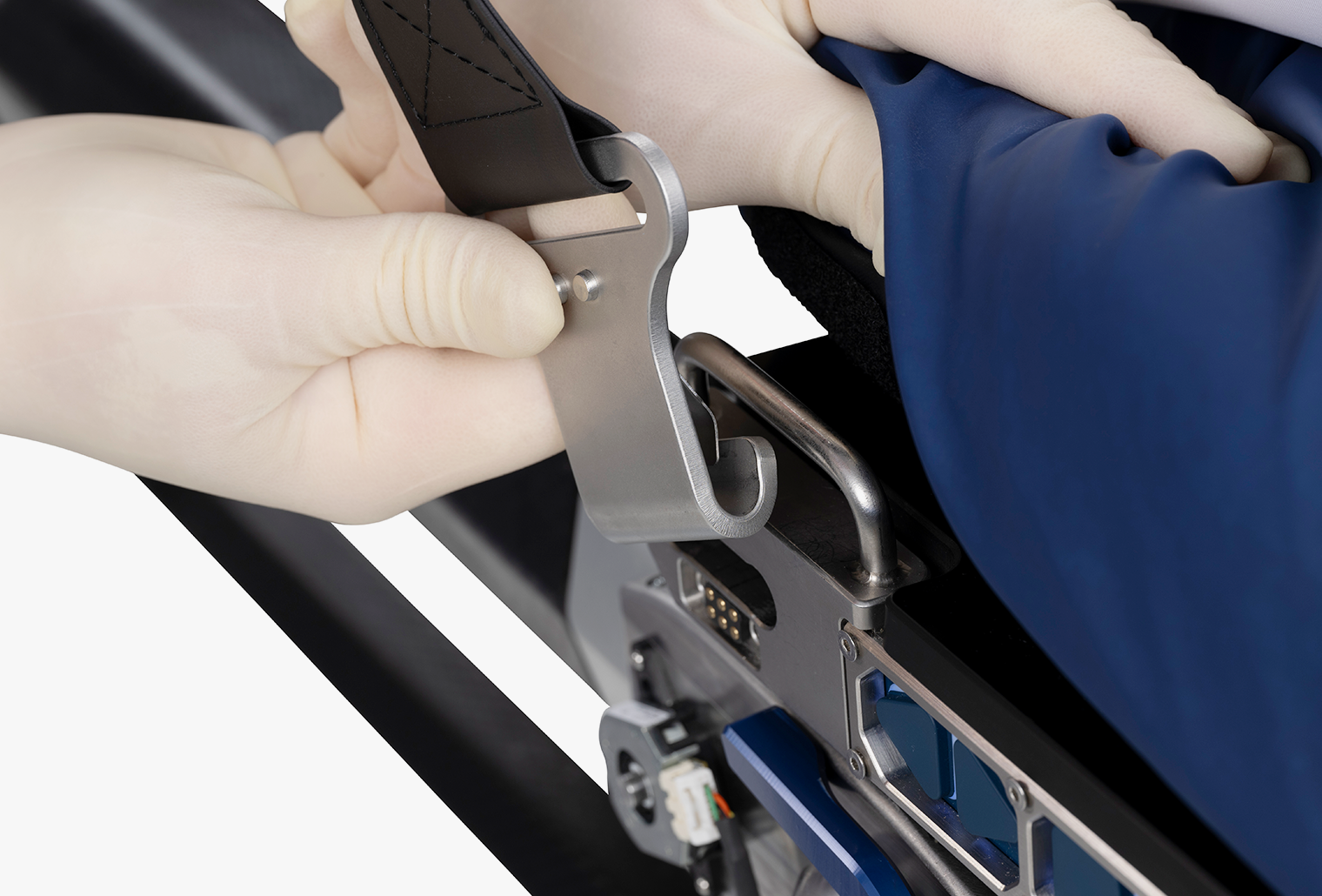

Adante_Installing_Positioning Patient Strap_2

Slide the Patient Strap around the Foot-End of the Adante Table. Once the patient is transferred to the table, buckle the Patient Safety Strap around the patient at waist level and pull strap through the buckle until the patient is secured firmly to the Adante Table.

Installing and Positioning the Patient Strap

9/9

Standard Component Installation

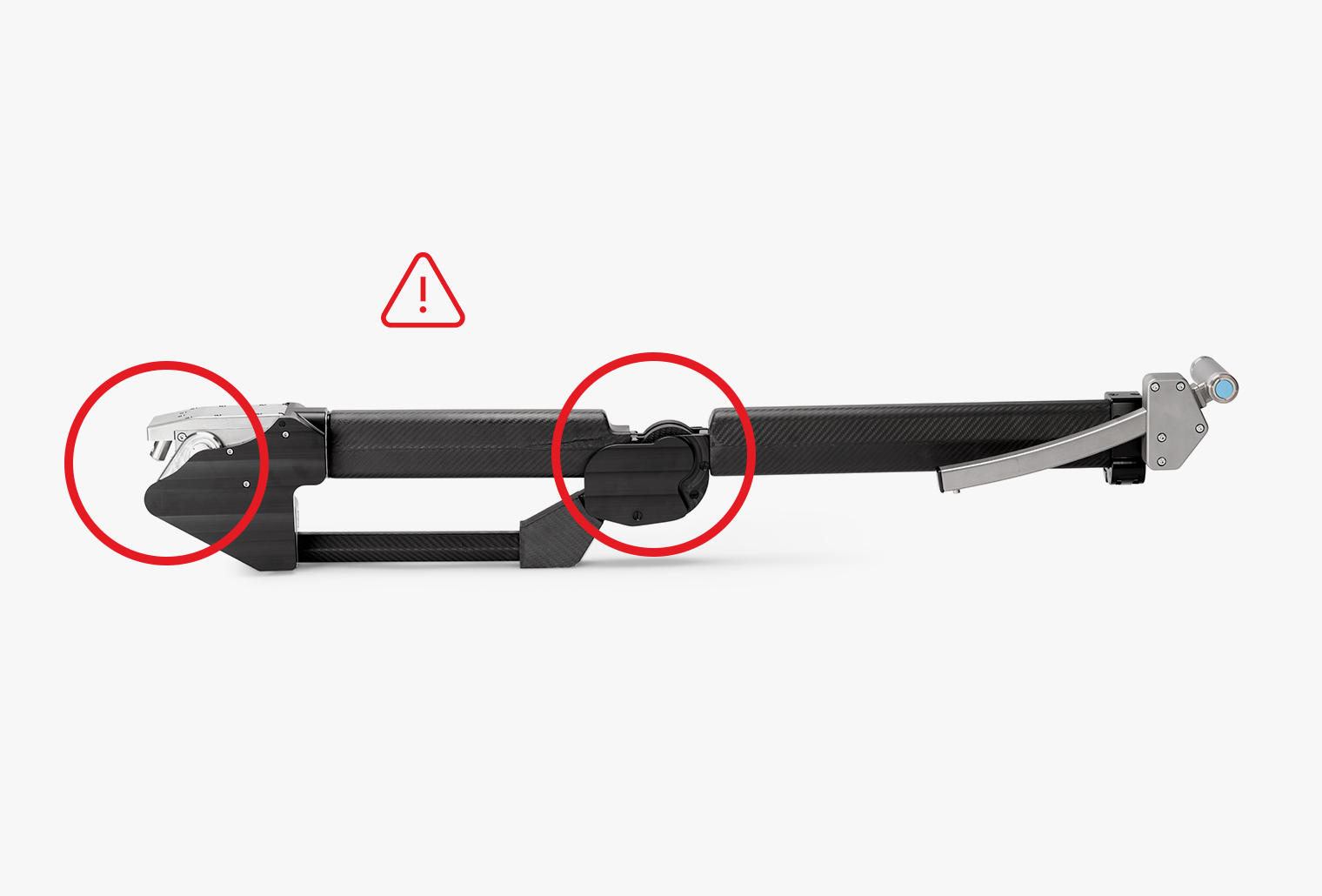

CAUTION: Do not hold at the hinge or between metal crevices at the proximal end of the Spar as doing so may present a pinch hazard.

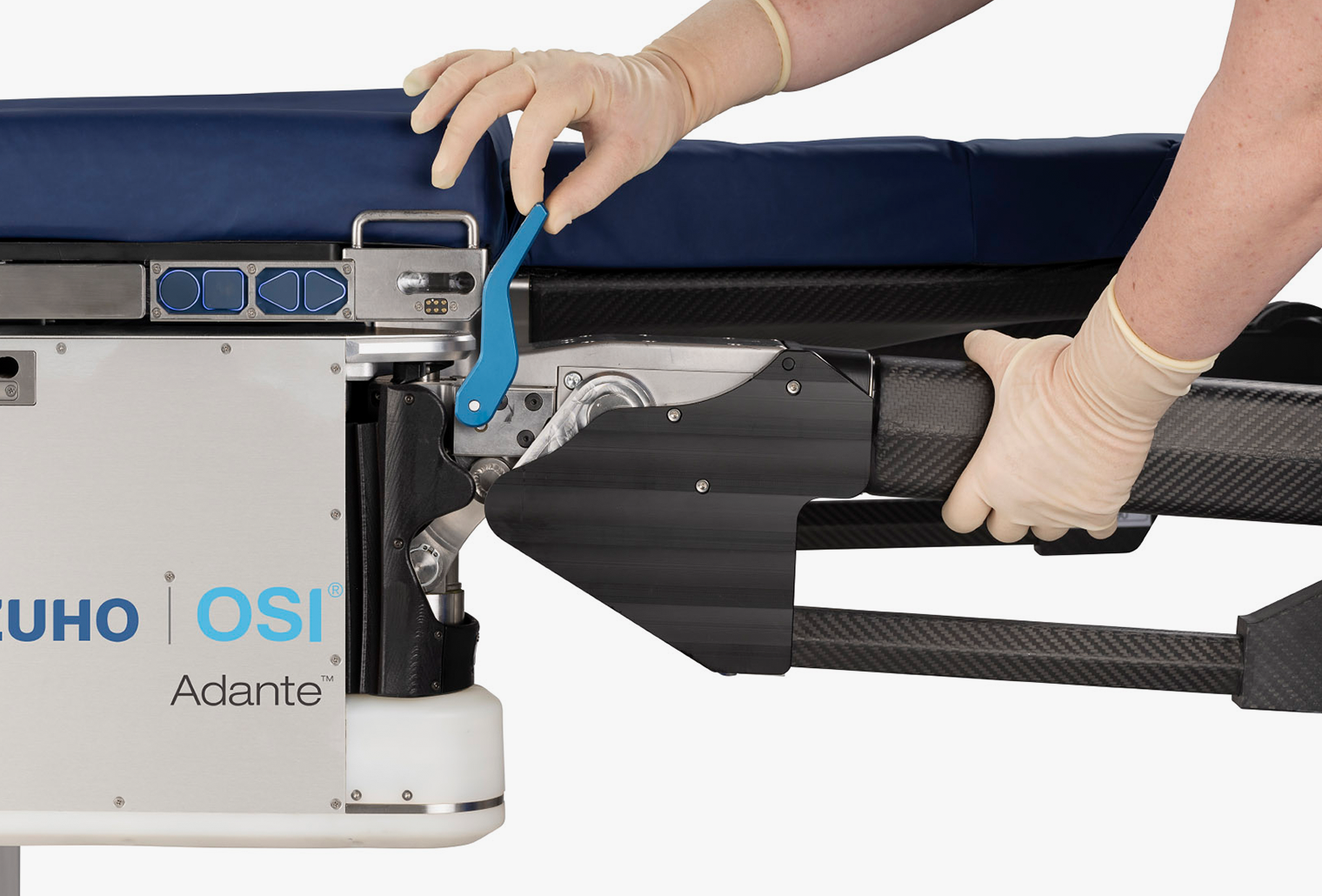

Ensure the Leg Spar is in a straight position. Hold the spar firmly at both the distal and proximal ends, unlock the Spar Safety Latch, and lift the spar out of the Spar Receiver.

Removing the Leg Spar
